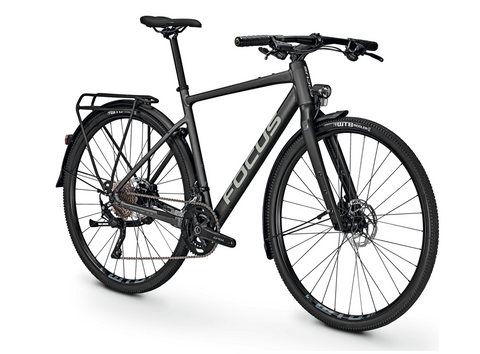

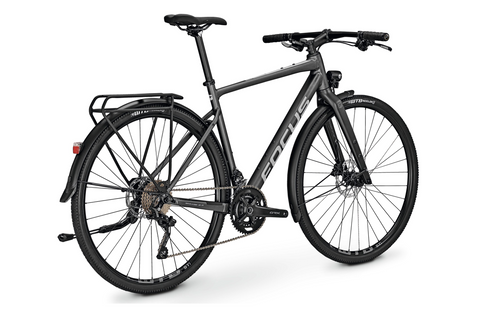

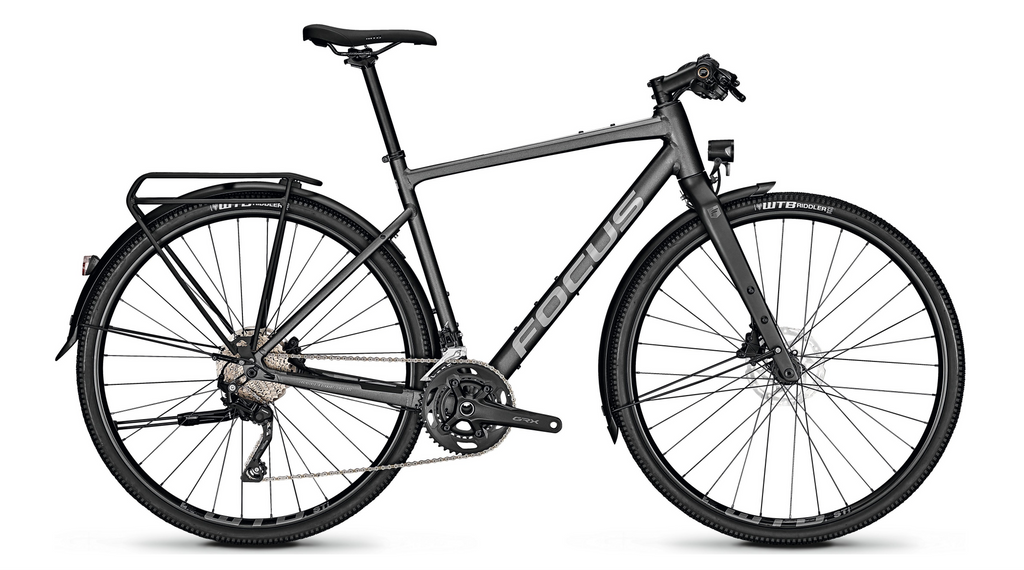

2024 Focus Atlas 6.6 EQP

  • Sale
  • Regular price $2,599.00

ATLAS 6.6 EQP Features

Aluminium frame with pannier rack, mudguards & light

Shimano GRX400 2x10 & flat bar shifters

Novatec hubs & WTB rims

Pushes boundaries

  • Fully equipped

    The ATLAS 6.6 EQP leaves nothing to be desired for your travel adventures or daily commutes: it is already fully equipped with a rack, mudguards and a stand. The rack can carry up to 20 kg and on the carbon fork, you can mount carriers taking up to 3 kg each side. Furthermore, a lighting system with hub dynamo and integrated cable routing constantly provides bright light.

  • Huge tyre clearance

    The ATLAS comes with 700c tyres and can take tyre widths up to 47 mm, but is also 650b-ready with tyre clearance up to 53 mm. Therefore, you have plenty of opportunities to specificate your ATLAS appropriately for your next adventure. Furthermore, the Road Boost technology provides high stability due to better spoke tension and bigger tyre clearance while still having short chainstays. No matter the objective, the ATLAS fully supports your ride – even to the end of the world.

  • Comfort and control on all terrain

    No matter if there is bad weather or challenging surfaces on your rides – the fast and comfortable gravel bike offers full control and comfort thanks to a flat handlebar and disc brakes. The C.I.S. cable routing from the handlebar directly into the headset provides a clean cockpit. To climb every hill even with all your stuff, the Shimano GRX gravel groupset comes with a pleasant transmission ratio for everyone.

Specification:


Frame:
Aluminium, disc, BSA, 148x12 mm thru axle, flat mount 160/160 mm, internal cable routing

Fork:
Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points

Shifter:
Shimano Tiagra 4700, 10-speed

Front derailleur:
Shimano GRX FD-RX400

Rear derailleur:
Shimano GRX RD-RX400, 10-speed

Sprocket:
Shimano CS-HG5010, 10-speed

Chain:
Shimano Tiagra CN-4601, 10-speed

Crankset:
Shimano GRX FC-RX600 * , 10-speed / Miranda Delta XMod2 * , 10-speed

Transmission of drive:
front: 46/30, rear: 11-34

Bottom Bracket:
BSA

Handlebar:
Aluminium, 720 mm, flatbar, backsweep: 9°, 31.8 mm

Stem:
Aluminium, 31,8 mm, 6°

Headset:
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.

Saddle:
WTB SL8

Seatpost:
Aluminium, 27.2 mm, 0 mm set-back

Brake caliper:
Tektro HD-R280

Brake lever:
Tektro HD-R280

Brake:
Disc

Rims:
WTB ST i23 TCS, tubeless ready

Rear hub:
Novatec D982TSB, 12x148 mm

Front Hub:
Shutter Precision PL-7 Dynamo Hub, 110x12 mm

Tires:
WTB Riddler, 700 x 37C

Fender:
Buechel, plastic, 51 mm

Headlight:
Herrmans H-Black MR8, LED

Taillight:
Herrmans H-Trace Mini, LED

Gears:
20

Bike weight incl. battery in kg:
12,8

Size:
48,51,54,57,60
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
