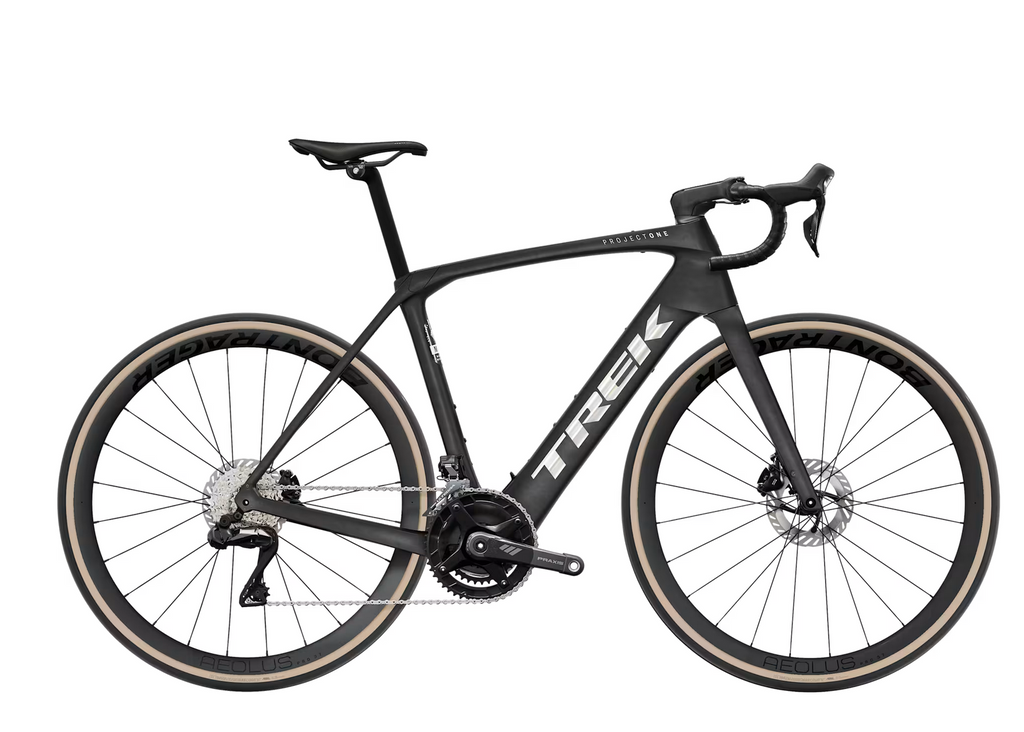

The Domane+ SLR 7 is a category-redefining carbon e-road bike for long rides and steep climbs. Its lightweight 800 Series OCLV Carbon frame hides a quiet and refined TQ HPR60 motor for a smooth boost up climbs. It comes ready to soar with a 2x12 wireless Shimano Ultegra Di2 drivetrain, carbon cranks, carbon wheels, carbon seat post and upgraded Bontrager Pro IsoCore handlebars to damp vibration from rough roads.
SPECIFICATIONS:
*Please note – spec applies to all sizes unless listed separately
Frame: 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, mudguard mounts, 142x12 mm thru axle
Fork: Domane+ carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle
Weight: 56 - 12.65 kg / 27.89 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Battery: TQ 360Wh
Charger: TQ 4A charger
Computer: TQ LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
E-bike Classification: Class 1
Shifter: Shimano Ultegra R8170 Di2, 12-speed
Front derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
Rear derailleur: Shimano Ultegra R8150 Di2, 34T max cog
*Crank:
Size: 50, 52
Praxis Carbon, 165mm length
Size: 54, 56
Praxis Carbon, 170 mm length
Size: 58, 60, 62
Praxis Carbon, 172.5 mm length
Chainring: Praxis, 50/34T, 12-speed
Cassette: Shimano Ultegra R8101, 11-34, 12-speed
Chain: Shimano Ultegra/XT M8100, 12-speed
Max. chainring size: 1x: 46T, 2x: 52/36
Wheel front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12 mm thru axle
Wheel rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless-Ready, 37 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer front: Bontrager Switch thru-axle
Skewer rear: Bontrager Switch thru-axle, removable lever
Tyre: Bontrager Kwaremont RSL TLR, tubeless ready, folding bead, Race Dual-Compound, 320 tpi, 700x32 mm
Rim strip: Bontrager TLR
Max tyre size: 40 mm without mudguards, 35 mm with mudguards
Saddle: Verse Short Pro, carbon rails, 145 mm width
*Seatpost:
Size: 50, 52, 54, 56
KVF aero carbon seat post, 20 mm offset, 280 mm length
Size: 58, 60, 62
KVF aero carbon seat post, 20 mm offset, 320 mm length
*Handlebar:
Size: 50, 52
Bontrager Pro IsoCore VR-SF, 40cm
Size: 54, 56
Bontrager Pro IsoCore VR-SF, 42cm
Size: 58, 60, 62
Bontrager Pro IsoCore VR-SF, 44cm
Handlebar tape: Bontrager Supertack Perf tape
*Stem:
Size: 50
Trek RCS Pro, -7-degree, 80 mm length
Size: 52, 54
Trek RCS Pro, -7-degree, 90 mm length
Size: 56, 58
Trek RCS Pro, -7-degree, 100 mm length
Size: 60, 62
Trek RCS Pro, -7-degree, 110 mm length
Brake rotor: Shimano CL800, CentreLock, 160 mm
Rotor size: Max brake rotor sizes: 180 mm front, 160 mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Colour: Matte Deep Smoke
