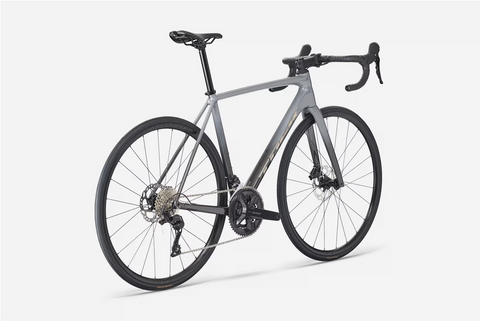

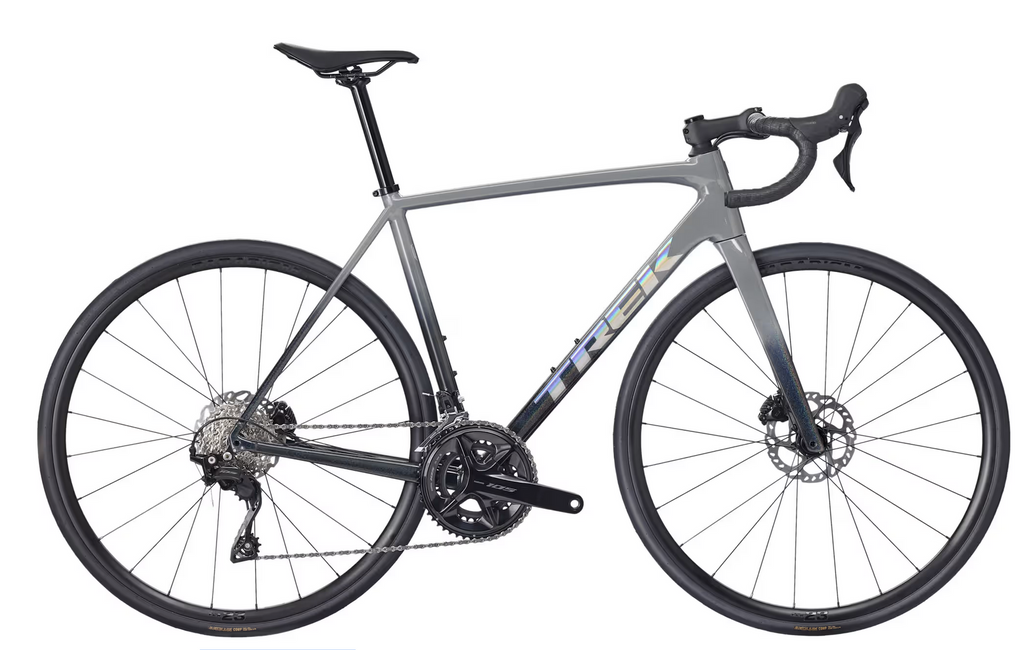

The Émonda ALR 5 Disc is a super light and responsive alloy road race bike. Its advanced Kammtail alloy tube shapes and H1.5 race geometry give it the sleek looks and handling of a carbon bike and place it at an alloy price point. Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.
*Please note – spec applies to all sizes unless listed separately
Frame with Fork: Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12 mm thru axle
Fork: Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
Weight: 56 - 9.15 kg / 20.18 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Shifter: Shimano 105 R7120, 12-speed
Front derailleur: Shimano 105 R7100, braze-on, down swing
Rear derailleur: Shimano 105 R7100, 36T max cog

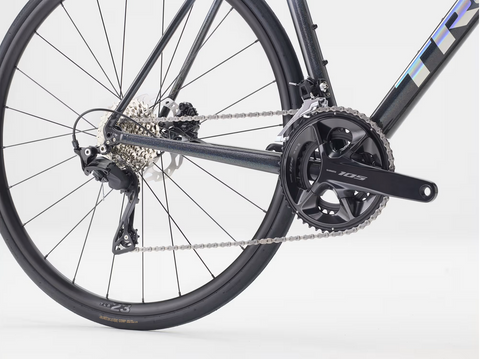

*Crank:
Size: 50
Shimano 105 R7100, 50/34, 165 mm length
Size: 52, 54, 56
Shimano 105 R7100, 50/34, 170 mm length
Size: 58, 60, 62
Shimano 105 R7100, 50/34, 172.5 mm length
Bottom bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano 105 7101, 11-34, 12-speed
Chain: Shimano SLX M7100, 12-speed
Max. chainring size: 1x: 48T, 2x: 53/39 (Shimano), 48/35 (SRAM)
Skewer front: Bontrager Switch thru-axle
Skewer rear: Bontrager Switch thru-axle, removable lever
Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager Aeolus Comp, Hardcase Lite, wire bead, 60 tpi, 700x28 mm
Max tyre size: 28 mm (as measured, see manual for details)
Saddle: Bontrager Aeolus Elite, austenite rails, 145 mm width
Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

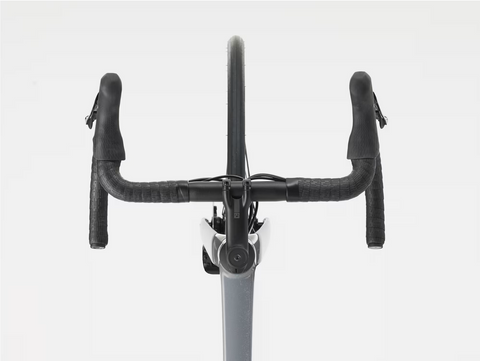

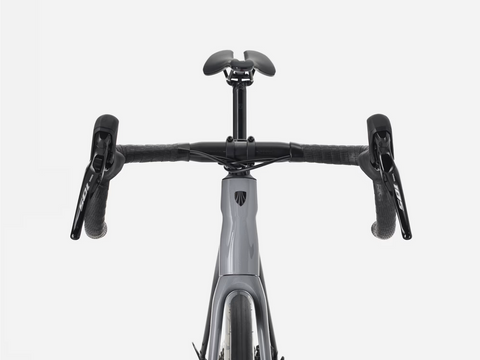

*Handlebar:
Size: 50, 52
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
Size: 54, 56, 58
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
Size: 60, 62
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Handlebar tape: Trek EcoTack
*Stem:
Size: 50
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
Size: 60, 62
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110mm length

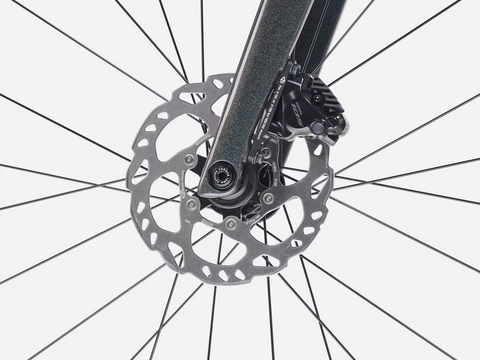

Brake rotor: Shimano CL700, CentreLock, 160 mm
Rotor size: Max brake rotor sizes: 160 mm front and rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
Colour: Slate Prismatic/Black Prismatic Fade
