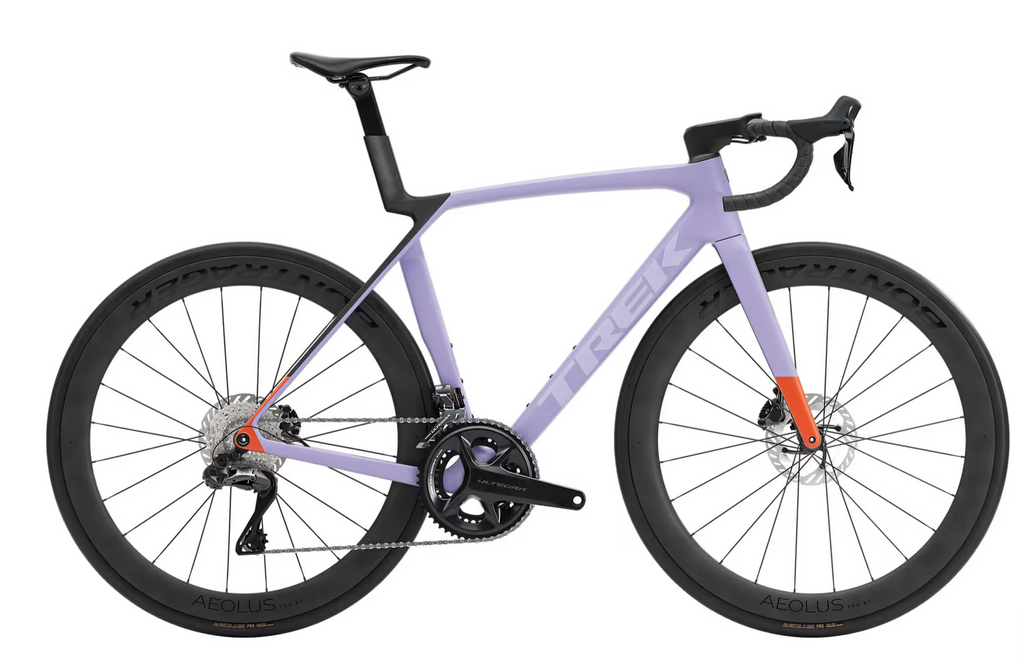

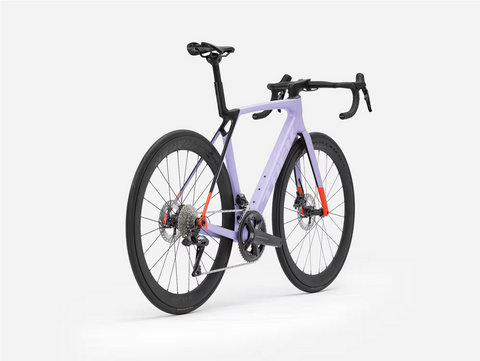

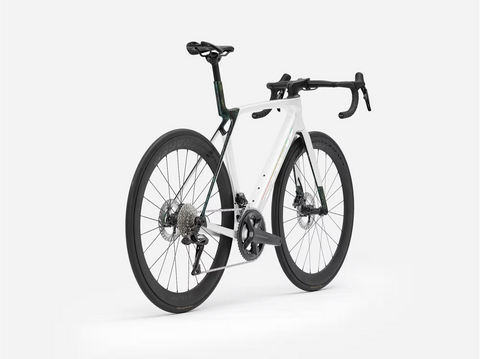

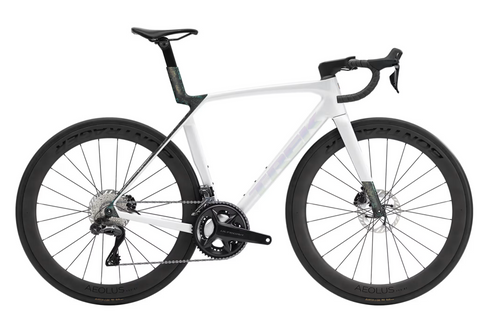

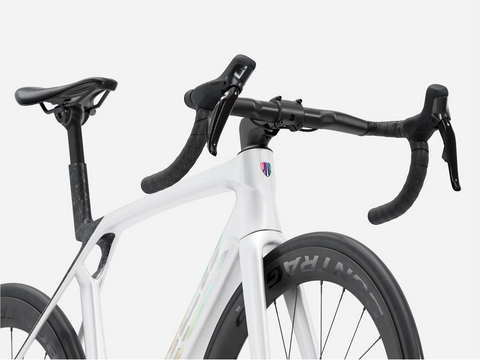

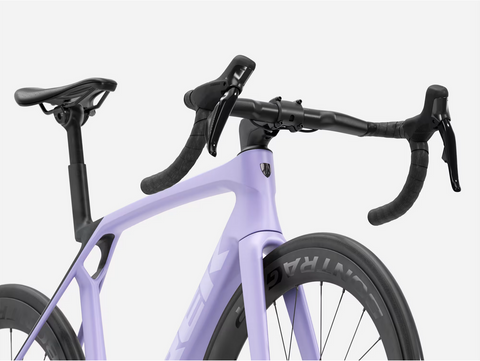

The Madone SL 7 Gen 8 is a race-ready road bike built to give you the best of every world. It balances price and performance with a 500 Series OCLV Carbon frame that lets you soar up climbs, while aero geometry cuts drag on descents and IsoFlow keeps you comfortable through the miles. You get a Shimano Ultegra Di2 wireless electronic drivetrain to deliver clean shifts every time, all topped off with carbon wheels, carbon handlebars and a carbon stem for lightweight performance.
*Please note – spec applies to all sizes unless listed separately

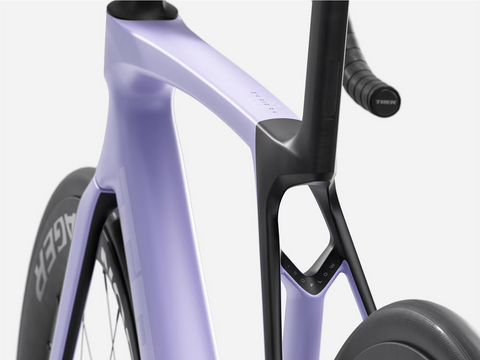

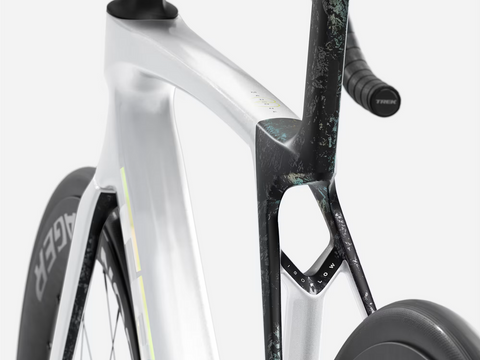

Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle
Weight: ML - 7.87 kg / 17.36 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Battery: Shimano BT-DN300
Charger: Charging cable included

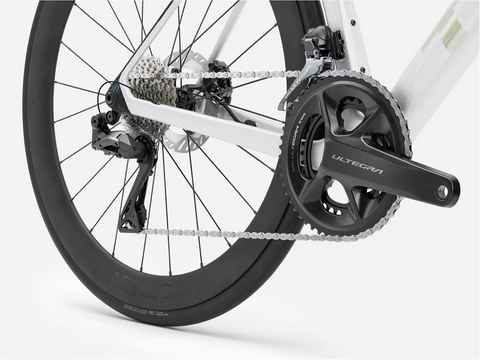

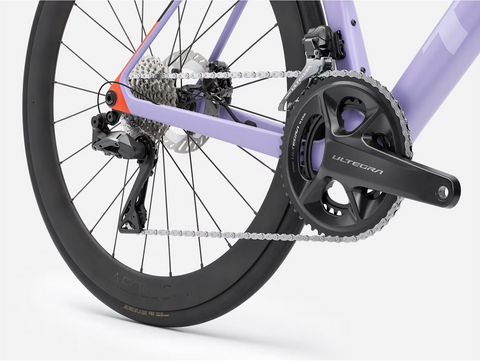

Shifter: Shimano Ultegra R8170 Di2, 12-speed
Front derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
Rear derailleur: Shimano Ultegra R8150 Di2, 34T max cog
*Crank:
Size: XS, S
Shimano Ultegra R8100, 50/34, 165 mm length
Size: M, ML
Shimano Ultegra R8100, 50/34, 170 mm length
Size: L, XL
Shimano Ultegra R8100, 50/34, 172.5 mm length
Bottom bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano Ultegra R8101, 11-34, 12-speed
Chain: Shimano Ultegra/XT M8100, 12-speed
Max. chainring size: 1x: 54T, 2x: 56/43
Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Tyre: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Max tyre size: 32 mm (as measured, see manual for details)
Saddle: Bontrager Aeolus Elite, austenite rails, 145 mm width
Seatpost: Madone aero carbon seat post, 0 mm offset, short length

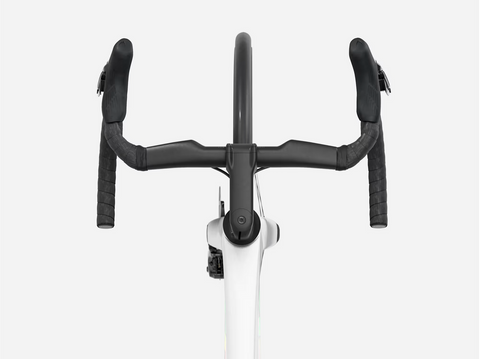

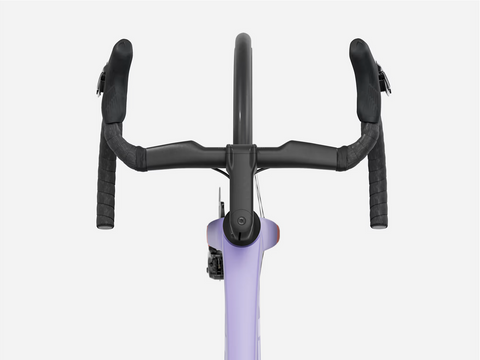

*Handlebar:
Size: S
Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm width
Size: M, ML, L
Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm width
Size: XL
Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm width
Handlebar tape: Trek EcoTack
*Stem:
Size: XS
Trek RCS Pro, -7-degree, 80 mm length
Size: S, M
Trek RCS Pro, -7-degree, 90 mm length
Size: ML, L
Trek RCS Pro, -7-degree, 100 mm length
Size: XL
Trek RCS Pro, -7-degree, 110 mm length
Brake rotor: Shimano CL800, CentreLock, 160 mm
Rotor size: Max brake rotor sizes: 180 mm front, 160 mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
