*Please note – spec applies to all sizes unless listed separately

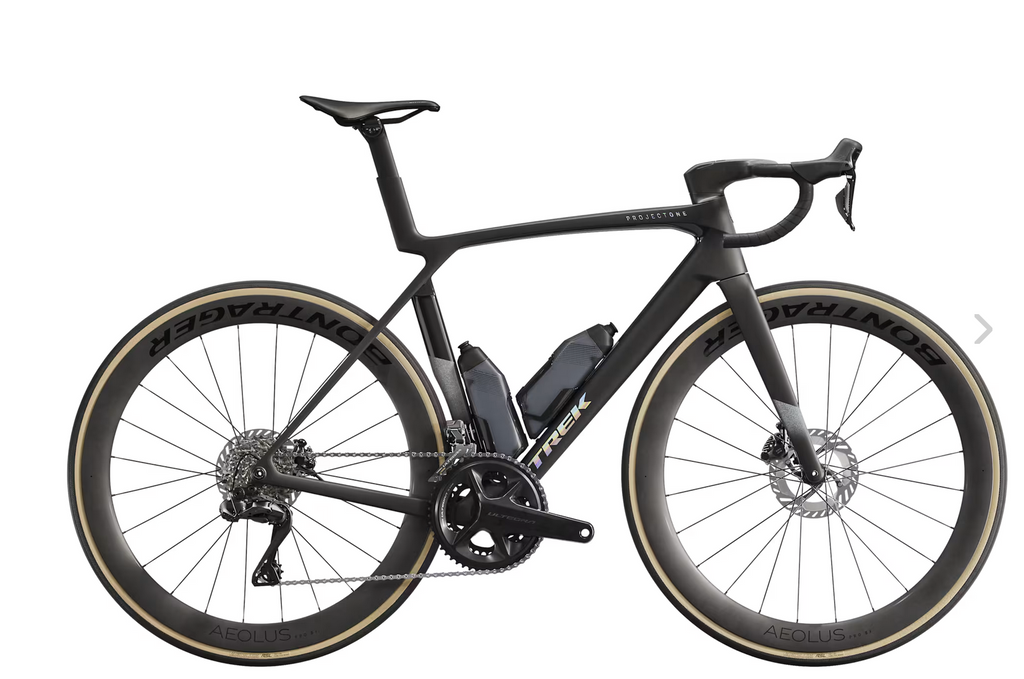

Frame with Fork: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle
Weight: ML - 7.52 kg / 16.58 lbs (with TLR sealant, no tubes, no bottles/cages)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Battery: Shimano BT-DN300
Charger: Charging cable included
Shifter: Shimano Ultegra R8170 Di2, 12-speed
Front derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
Rear derailleur: Shimano Ultegra R8150 Di2, 34T max cog
*Crank:
Size: XS, S
Shimano Ultegra R8100, 52/36, 165 mm length
Size: M, ML
Shimano Ultegra R8100, 52/36, 170 mm length
Size: ML, L, XL
Shimano Ultegra R8100, 52/36, 172.5 mm length
Size: XL
Shimano Ultegra R8100, 52/36, 175 mm length
Bottom bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano Ultegra R8101, 11-30, 12-speed
Chain: Shimano Ultegra/XT M8100, 12-speed
Max. chainring size: 1x: 54T, 2x: 56/43
Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
*Tyre:
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700x28 mm
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Tube: Pirelli P Zero SmarTube, TPU
Max tyre size: 32 mm (as measured, see manual for details)
Saddle: Bontrager Aeolus Pro, carbon rails, 145 mm width
Seatpost: Madone aero carbon seat post, 0 mm offset, short length
*Handlebar/stem (integrated):
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Handlebar tape: Trek EcoTack
Brake rotor: Shimano CL800, CentreLock, 160 mm
Rotor size: Max brake rotor sizes: 180 mm front, 160 mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Colour: Matte Carbon Smoke/Prismatic Pearl
