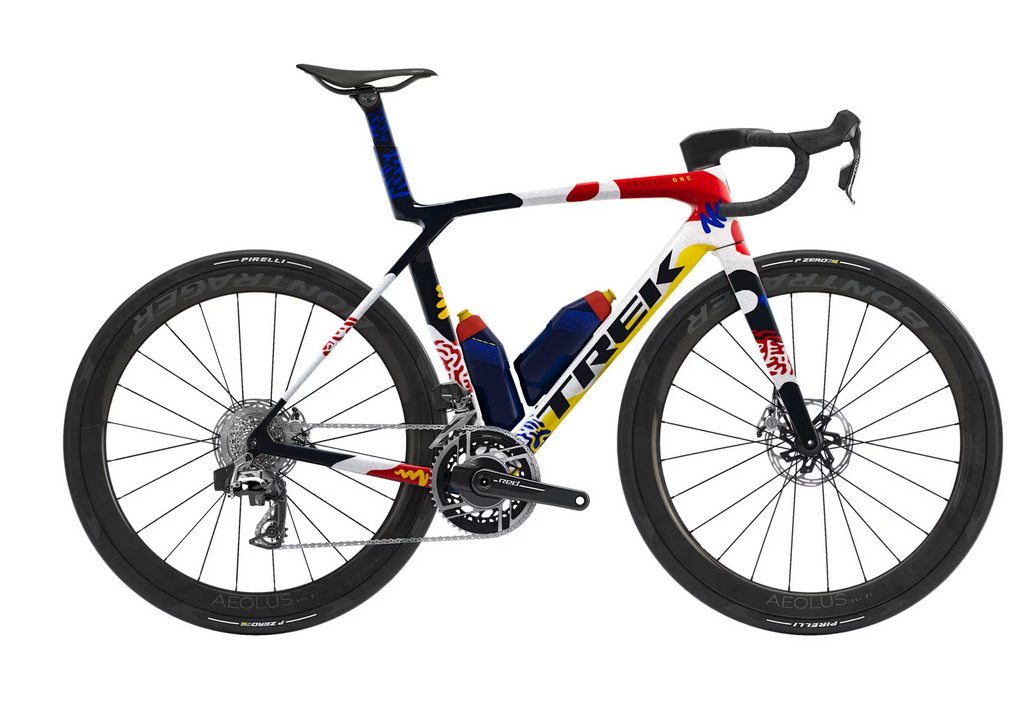

The Madone SLR 9 AXS Gen 8 is built for dominating the roads with equal parts light weight and aerodynamic speed. It’s crafted from our highest-level 900 Series OCLV Carbon that’s not only insanely light, but delivers aerodynamic shapes for crushing descents and straightaways. This build comes ready to win with a top-level SRAM RED AXS E1 drivetrain with a power meter, Bontrager Aeolus RSL 51 carbon wheels, a Trek Aero RSL one-piece carbon bar/stem and RSL Aero Bottles and Cages for more drag reduction.
*Please note – spec applies to all sizes unless listed separately
Frame with Fork: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Weight: ML - 7.00 kg/15.44 lb (with TLR sealant, no tubes, no bottles/cages)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Battery: SRAM AXS battery pack (with charger)
Shifter: SRAM RED AXS E1
Front derailleur: SRAM RED AXS E1, braze-on
Rear derailleur: SRAM RED AXS E1, 36T max cog
*Crank:
Size: M, ML, L
SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length
Size: L
SRAM RED AXS E1, power meter, 48/35, DUB, 172.5 mm length
Bottom bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM RED XG-1290 E1, 10-33, 12-speed
*Chain:
Size: M, ML, L
SRAM RED E1, 12/13-speed
Size: M, ML, L
SRAM RED E1, 12-speed
Max. chainring size: 1x: 54T, 2x: 56/43
Wheel front: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle
*Wheel rear:
Size: M, ML, L
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
Size: M, ML
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
*Tyre:
Size: M, ML, L
Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm
Size: M, ML
Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700x28 mm
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Tube: Pirelli P Zero SmarTube, TPU
Max tyre size: 32 mm (as measured, see manual for details)
Saddle: Aeolus RSL AirLoom, carbon rails, 145 mm width
Seatpost: Madone aero carbon seat post, 0 mm offset, short length
*Handlebar/stem (integrated):
Handlebar tape: Trek EcoTack
Brake: SRAM Red AXS E1 hydraulic disc, flat mount
Brake rotor: SRAM Paceline X, rounded, CentreLock, 160 mm
Rotor size: Max brake rotor sizes: 180 mm front, 160 mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Colour: ICON Couler
