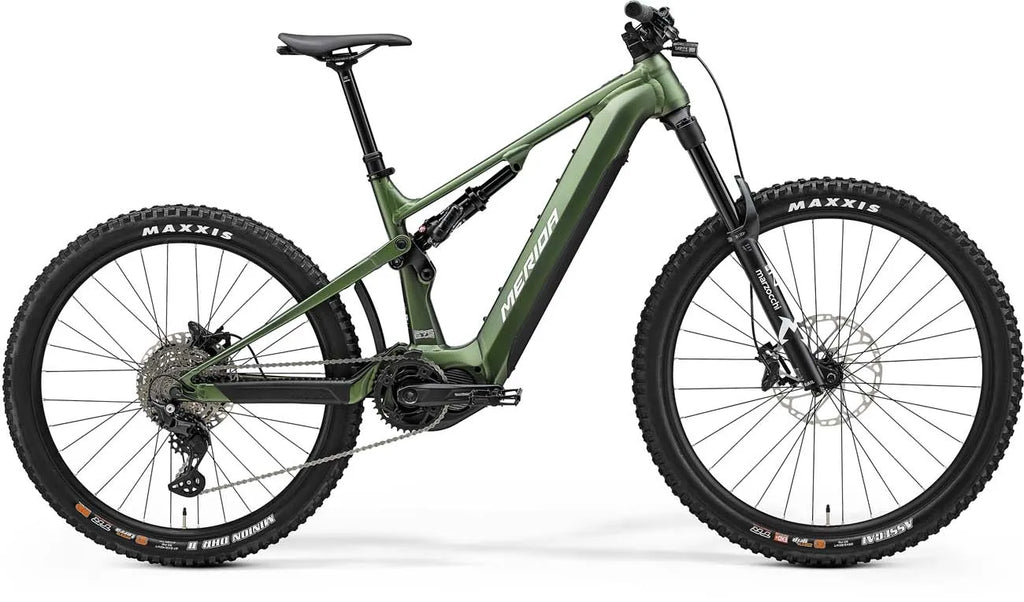

The Merida eOne-Sixty 675 Electric Dual Suspension Mountain Bike is designed for adventure seekers who crave versatility and performance. With its durable aluminium frame and a powerful 750Wh battery, this bike excels in both challenging trails and casual rides. The award-winning geometry ensures exceptional handling, while the Marzocchi Z1 fork and Shimano Deore drivetrain provide a smooth and responsive ride. Whether you're tackling steep climbs or enjoying leisurely paths, the eOne-Sixty 675 delivers comfort and confidence.
| eBike Drive System | Mid Drive |
|---|---|
| Motor Brand | Shimano |
| Motor Model | STePS EP801 |
| Motor Torque (Nm) | 85 Nm |
| Motor/Drive Unit | Shimano EP801; 85Nm 25KPH |
| Battery | Trendpower Internal Battery Gen 2; 750Wh |
| Battery Brand | Trendpower |
| Battery Size (Watt-Hours) | 750 W-h |
| Battery Model | Internal Battery Gen 2 |
| Display | Shimano SC-EM800 |
| Assist Modes | 4 Modes |
| Colour | Green |
| Frame | eONESIXTY LITE IV MAT aluminium 160 STR 29x26 max WHS 148x12 AST intube 750 Wh |
| Frame Material | Alloy |
| Fork | Marzocchi Z1 eMTB; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS |
| Fork Brand | Marzocchi |
| Front Travel | 170mm |
| Rear Travel | 160mm |
| Rear Shock | Marzocchi Bomber Air; platform |
| Speeds | 1 x 10 |
| Front Gears | Single |
| Groupset Brand | Shimano |
| Groupset | Shimano Deore |
| Rear Gears | 10 Speed |
| Crankset | Shimano FC-EM600; 165 mm for all sizes |
| Pedals | VP VPE-527 |
| Chain | Shimano LG500 |
| Brake Type | Hydraulic Disc Brake |
| Derailleur Rear | Shimano DEORE RDM5130 LinkGlide 10 |
| Wheel Size | 29" |
| Rims | MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Bottom Bracket | included |
| Handlebar | MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB |
| Headset | Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
| Grips | MERIDA EXPERT EC |
| Stem | MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount |
| Saddle | MERIDA COMP SL; V-mount; incl. MERIDA minitool |
| Seatpost | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT |
