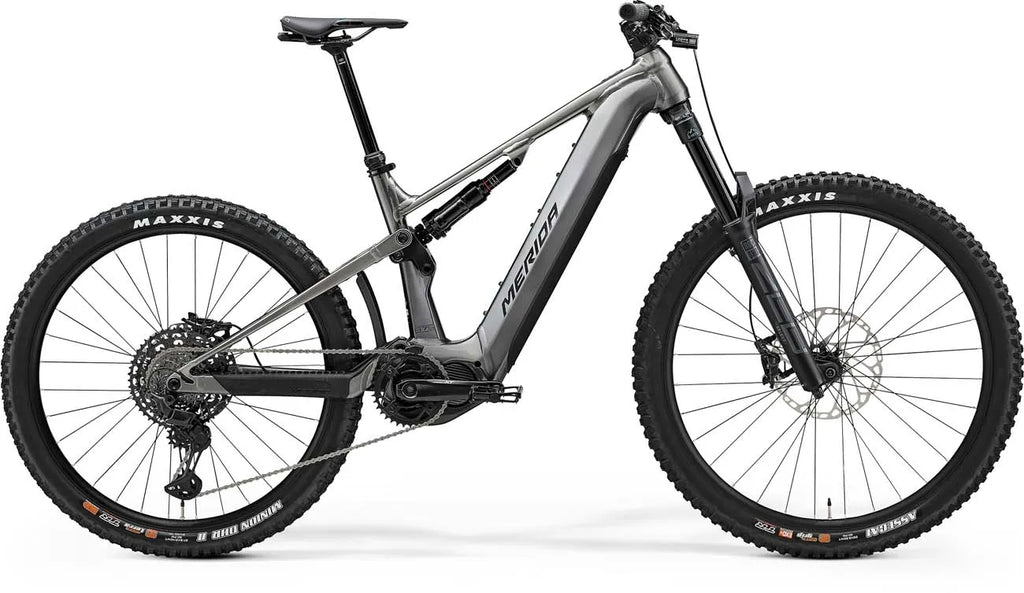

The Merida eOne-Sixty 875 Electric Enduro Bike is designed for adventure seekers who crave versatility and performance. With a robust aluminium frame and a powerful 750Wh battery, this bike excels in both challenging trails and casual rides. It features advanced suspension components, including a Rock Shox ZEB Select fork and a Shimano Deore drivetrain, ensuring a smooth and responsive ride. Whether you're tackling steep climbs or enjoying leisurely paths, the eOne-Sixty 875 delivers exceptional handling and comfort.
| Motor Brand | Shimano |
|---|---|
| Motor Model | STePS EP801 |
| Motor Torque (Nm) | 85 Nm |
| Motor/Drive Unit | Shimano EP801; 85Nm 25KPH |
| Battery | Trendpower Internal Battery Gen 2; 750Wh |
| Battery Brand | Trendpower |
| Battery Size (Watt-Hours) | 750 W-h |
| Battery Model | Internal Battery Gen 2 |
| Display | Shimano SC-EM800 |
| Assist Modes | 4 Modes |
| Colour | Grey |
| Frame | eONESIXTY LITE IV MAT aluminium 160 STR 29x26 max WHS 148x12 AST intube 750 Wh |
| Frame Material | Alloy |
| Fork | Rock Shox ZEB Select; Air; 170 STR; Tapered; 44mm fork offset; 29x2.8" max WHS |
| Fork Brand | RockShox |
| Front Travel | 170mm |
| Rear Travel | 160mm |
| Rear Shock | Rock Shox Super Deluxe Select |
| Speeds | 1 x 11 |
| Front Gears | Single |
| Groupset Brand | Shimano |
| Groupset | Shimano XT |
| Rear Gears | 11 Speed |
| Crankset | Shimano FC-E8150; 165 mm all sizes; |
| Pedals | VP VPE-527 |
| Chain | LG500 |
| Brake Type | Hydraulic Disc Brake |
| Derailleur Rear | Shimano XT RDM8130 LinkGlide 11 |
| Wheel Size | 29" |
| Rims | MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
| Bottom Bracket | included |
| Handlebar | MERIDA EXPERT eTR; 780 WHB; XS,S 20RHB ; M,L,XL 30RHB |
| Headset | Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
| Grips | MERIDA EXPERT EC |
| Stem | MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount |
| Saddle | PROXIM Nembo Steel; V-mount adapter; incl. MERIDA minitool |
| Seatpost | MERIDA TEAM TR II; 34.9 DSP; 0 SSB; all sizes 30-230 SPT |
