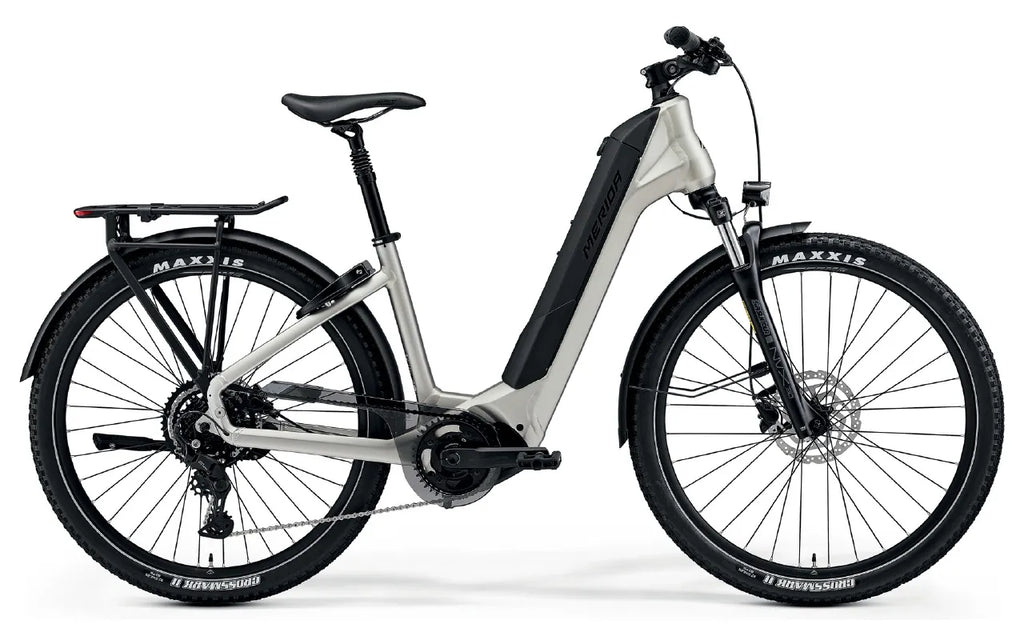

The Merida eSpresso CC 400 EQ 504Wh Electric Hybrid Bike combines the convenience of a city e-bike with the versatility for off-road adventures. Featuring a powerful Shimano EP6 drive unit and a robust 504 Wh battery, this bike ensures a smooth ride on urban streets and forest trails alike, thanks to its comfortable suspension and reliable hydraulic disc brakes.
| eBike Drive System | Mid Drive |
|---|---|
| Motor Brand | Shimano |
| Motor Model | STePS EP6 |
| Motor Torque (Nm) | 85 Nm |
| Motor/Drive Unit | Shimano EP6; 85Nm 25KPH |
| Battery | Shimano EN805-L; 504Wh |
| Battery Brand | Shimano |
| Battery Size (Watt-Hours) | 504 W-h |
| Battery Model | Shimano EN805-L |
| Display | Shimano SC-EN500 |
| Colour | Grey |
| Frame | eSPRESSO CC LITE III MAT aluminium 275x225 max WHS 135x9 AST internal |
| Frame Material | Alloy |
| Fork | Suntour NVX30 DS; Coil; 80 STR; 27,5x2,4" max WHS |
| Fork Brand | Suntour |
| Front Travel | under 100mm |
| Speeds | 1 x 9 |
| Front Gears | Single |
| Groupset Brand | Shimano |
| Groupset | Shimano Cues |
| Rear Gears | 9 Speed |
| Crankset | MERIDA EXPERT TK; 165mm |
| Pedals | VP VPE-891 |
| Chain | Shimano LG500 |
| Brake Type | Hydraulic Disc Brake |
| Brakes | Shimano MT-200; 2 piston |
| Derailleur Rear | Shimano CUES U4000 |
| Wheel Size | 27.5" (650b) |
| Rims | MERIDA COMP TK; 20 IWR; MAT aluminium |
| Handlebar | MERIDA EXPERT; MAT aluminium; 660 WHB; 15 RHB |
| Headset | MERIDA-8254 |
| Grips | MERIDA EXPERT TK |
| Stem | MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable |
| Saddle | MERIDA EXPERT TK II; V-mount |
| Seatpost | JD-SP79; 30.9 DSP; 15 SSB; 40 SST |
