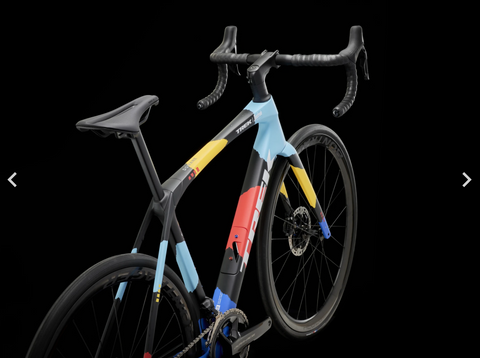

2024 Trek Domane SLR 9 Gen 4 (P1 Now)

  • Sale
  • Regular price $18,499.99

The Domane SLR 9 is our top ultra-light carbon endurance road bike decked out with the highest-end parts made for a fast, high-performance ride. You get our highest level OCLV Carbon frame with rear IsoSpeed, a wireless Shimano Dura-Ace Di2 electronic drivetrain for precision shifting and OCLV Carbon wheels. Plus, it has an easy-access storage compartment for stowing ride essentials, and versatile 38c tyre clearance to keep you floating on rough roads and light gravel.

It's right for you if...

You want the most capable bike on the tarmac that doesn't back down from endurance race days, and you're not willing to settle for less. You're looking for the most advanced endurance road bike frame we offer, with the added benefit of a wireless electronic Shimano Dura-Ace Di2 drivetrain for fast, precision shifting in any condition.

The tech you get

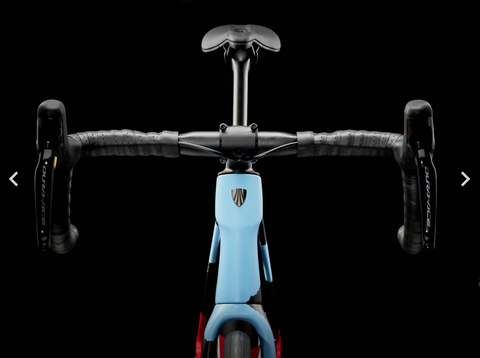

An ultra-light and refined 800 Series OCLV Carbon frame and fork with rear IsoSpeed, integrated internal storage and top tube mounts. It's equipped with a wireless Shimano 2x12 wireless Dura-Ace Di2 electronic drivetrain, powerful flat-mount disc brakes, Aeolus Pro 37 carbon wheels and a Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar.

The final word

Our highest-end Domane carbon frame, with the meticulous shifting that comes only from wireless Shimano Dura-Ace. You're getting tech that provides a real advantage in comfort, reliability and speed during all-day adventures, competitive group rides or long races.

Why you'll love it

  1. The sleek all-new 800 Series OCLV Carbon frame saves weight and gives you more free speed thanks to updated Kammtail tube shapes

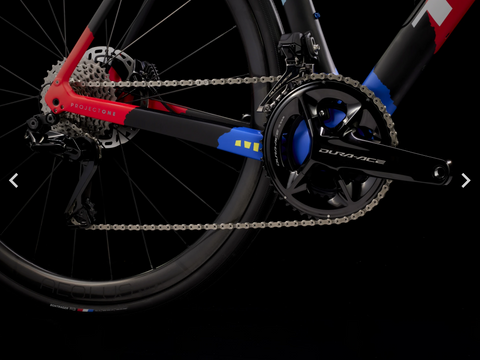

  2. Shimano's cream of the crop Dura-Ace Di2 drivetrain provides the pristine and crisp shifts you need, while keeping your set-up lightweight

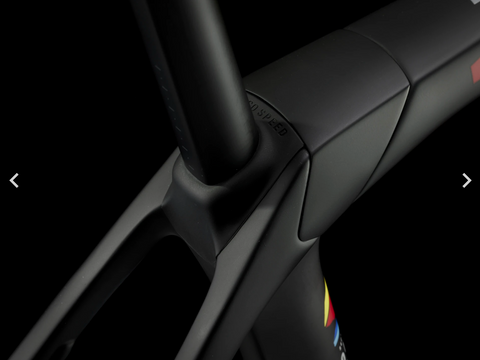

  3. The road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road to keep you comfortable through the longest miles and hardest race days

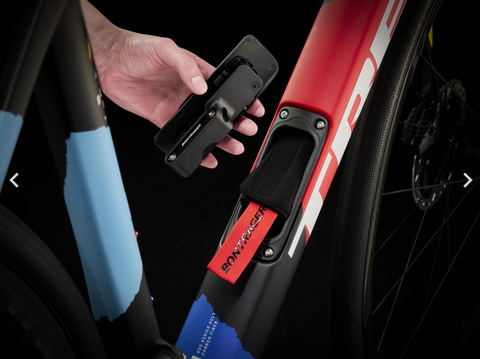

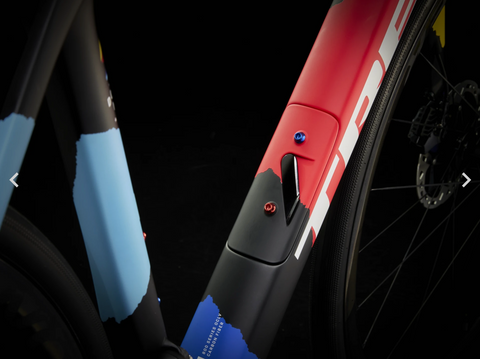

  4. A sleek internal storage compartment gives you a versatile spot to stow tools and gear, while the top tube mounts let you cleanly bolt on a bag for all-day adventures

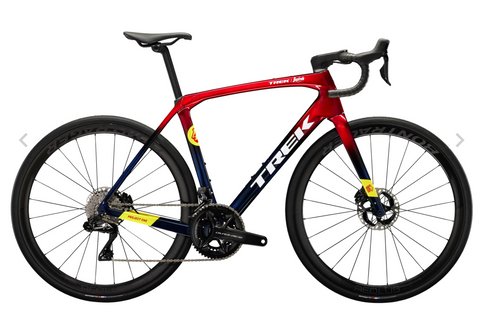

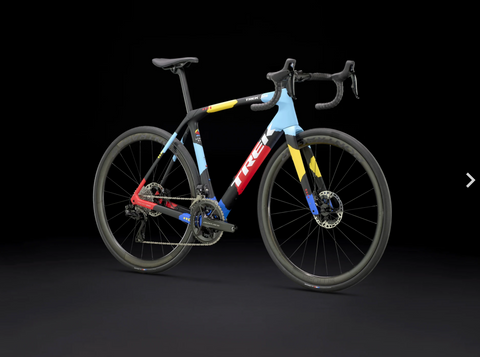

Colour Options:

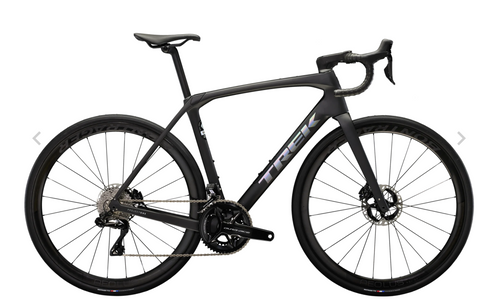

- Black

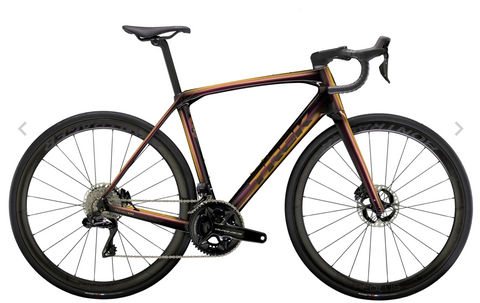

- Axinite Flip/Black

- Deep Smoke

- Metallic Red Smoke to Blue Smoke Fade

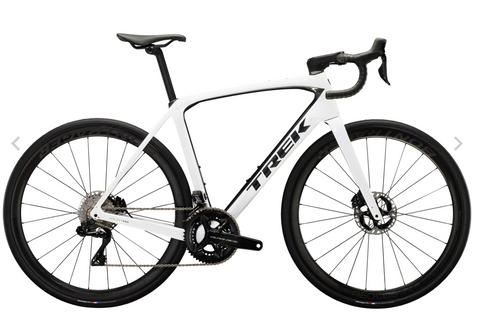

- Crystal White

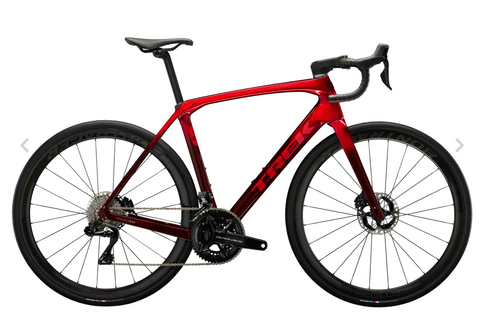

- Metallic Red Smoke to Red Carbon Smoke

*Please note – spec applies to all sizes unless listed separately


Frame 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
Frame with Fork 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle

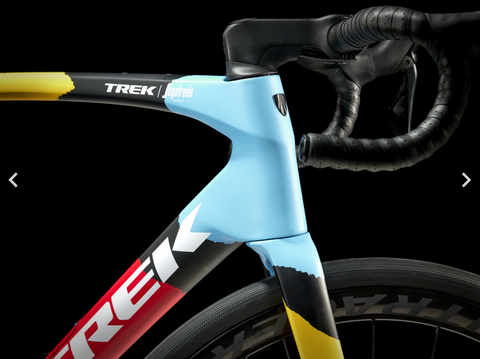

Fork Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit Endurance

Weight 56 - 7.25 kg / 15.99 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Shifter Shimano Dura-Ace R9270 Di2, 12 speed
Front derailleur Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear derailleur Shimano Dura-Ace R9250 Di2, 34T max cog
*Crank Size: 47
Shimano Dura-Ace R9200, 50/34, 165 mm length
Size: 50, 52
Shimano Dura-Ace R9200, 50/34, 170 mm length
Size: 54, 56
Shimano Dura-Ace R9200, 50/34, 172.5 mm length
Size: 58, 60, 62
Shimano Dura-Ace R9200, 50/34, 175 mm length
Bottom bracket Praxis, T47 threaded, internal bearing
Cassette Shimano Dura-Ace R9200, 11-34, 12-speed
Chain Shimano Dura-Ace/XTR M9100, 12-speed
Max. chainring size 1x: 48T, 2x: 52/36

*Saddle Size: 47, 50, 52
Verse Short Pro, carbon rails, 155 mm width
Size: 54, 56, 58, 60, 62
Verse Short Pro, carbon rails, 145 mm width
*Seatpost Size: 47, 50, 52, 54, 56
Domane carbon seat post, KVF shaping, 20 mm offset, 280 mm length
Size: 58, 60, 62
Domane carbon seat post, KVF shaping, 20 mm offset, 320 mm length
*Handlebar Size: 47
Bontrager Pro IsoCore VR-SF, 38cm
Size: 50, 52
Bontrager Pro IsoCore VR-SF, 40cm
Size: 54, 56
Bontrager Pro IsoCore VR-SF, 42cm
Size: 58, 60, 62
Bontrager Pro IsoCore VR-SF, 44cm
Handlebar tape Bontrager Supertack Perf tape
*Stem Size: 47
Trek RCS Pro, -7-degree, 70 mm length
Size: 50
Trek RCS Pro, -7-degree, 80 mm length
Size: 52, 54
Trek RCS Pro, -7-degree, 90 mm length
Size: 56, 58
Trek RCS Pro, -7-degree, 100 mm length
Size: 60, 62
Trek RCS Pro, -7-degree, 110 mm length

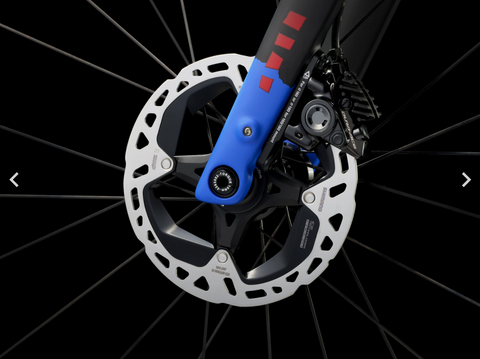

Brake Shimano Dura-Ace hydraulic disc
*Brake rotor Size: 47, 50, 52, 54, 56, 58, 60, 62
Shimano CL900, CentreLock, 160 mm
Size: 47, 50, 52, 54, 56, 58, 60, 62
Shimano MT900, CentreLock, 160 mm
Rotor size Max brake rotor sizes: 160mm front & rear

Battery Shimano BT-DN300
Charger Charging cable included
Bag Bontrager BITS Internal Frame Storage Bag

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
