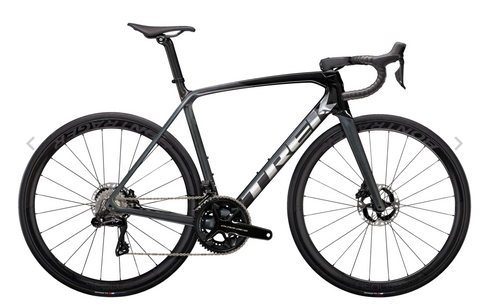

2024 Trek Emonda SLR 9 (P1 Now)

Émonda SLR 9 Disc is an ultra-light, aerodynamic carbon road bike that's designed and built to be the fastest climbing bike we've ever made. You get the legendary ride quality of our lightest platform, plus more speed, thanks to aero tubes wrought from our lightest OCLV lay-up ever. Shimano's highest-end wireless electronic drivetrain and our best climbing wheels give you every edge against the competition.

Great is for everyone else. You want the best, just like the pros of Trek-Segafredo, and that's our lightest, fastest road bike ever, stacked with tech that delivers an incredible difference in performance.

An ultra-light and aerodynamic 800 Series OCLV Carbon frame that weighs under 700 grams, an all-new 2x12 Shimano Dura-Ace Di2 wireless electronic drivetrain, ultra-light, fast and stable Bontrager Aeolus RSL 37 OCLV Carbon tubeless ready wheels, an Aeolus RSL OCLV Carbon integrated aero bar/stem and powerful hydraulic disc brakes.

Everything about this bike is ultralight and ultra-fast, from the aero frame to the carbon wheels, to the precise, reliable shifting of the all-new wireless electronic Dura-Ace Di2 drivetrain.

Trek’s fastest climbing bike is aero, weighs in at less than 700 g, and rides like a dream
All-new wireless Dura-Ace Di2 delivers ever faster, smoother and more responsive shifts than ever
800 Series OCLV Carbon is the lightest laminate we’ve ever made
The Aeolus RSL 37 wheels are designed for climbing, and were developed alongside Émonda
Make it yours: it's fully customisable through Project One

Colour Options:

- Dark Prismatic/Black

- Deep Smoke

- Viper Red

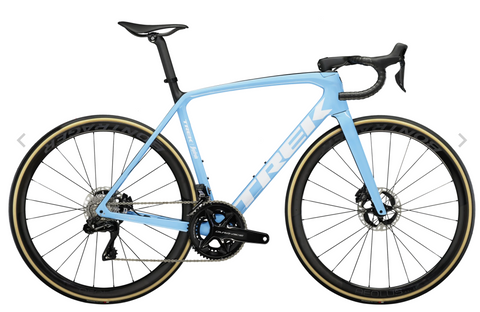

- Azure

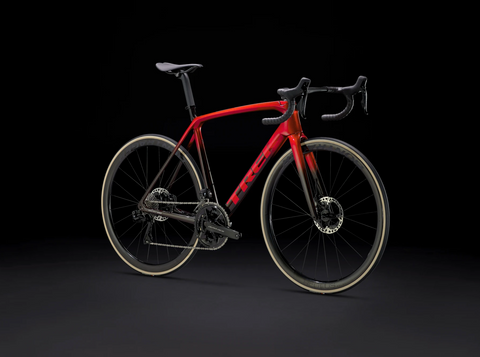

- Metallic Red Smoke to Red Carbon Smoke

- Axinite Flip/Black

*Please note – spec applies to all sizes unless listed separately

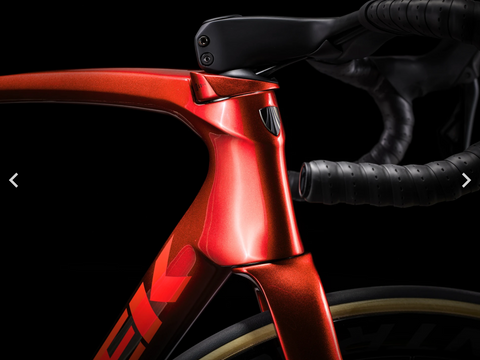

Frame	Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Fork	Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru-axle
Frame fit	H1.5 Race

Weight	56 - 6.60 kg / 14.56 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 pounds).

Shifter	Shimano Dura-Ace R9270 Di2, 12 speed
Front derailleur	Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear derailleur	Shimano Dura-Ace R9250 Di2, 34T max cog

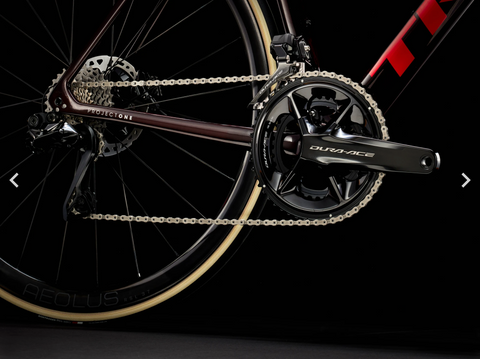

*Crank	Size: 47 Shimano Dura-Ace R9200, 52/36, 165 mm length
	Size: 50, 52 Shimano Dura-Ace R9200, 52/36, 170 mm length
	Size: 54, 56, 58 Shimano Dura-Ace R9200, 52/36, 172.5 mm length
	Size: 60, 62 Shimano Dura-Ace R9200, 52/36, 175 mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano Dura-Ace R9200, 11-30, 12-speed
Chain	Shimano Dura-Ace/XTR M9100, 12-speed
Max. chainring size	1x: 50T, 2x: 53/39

Wheel front	Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12 mm thru axle
Wheel rear	Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12 mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Skewer rear	Bontrager Switch thru-axle, removable lever
*Tyre	Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager R4 320, 700x25 mm
*Tyre	Size: 52, 56, 60 Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
Rim strip	Bontrager Aeolus XXX rim strip
Max tyre size	28mm

*Saddle	Size: 47, 50, 52 Aeolus RSL, carbon rails, 155mm width
	Size: 52 Bontrager Aeolus P2 Pro, carbon rails, 155 mm width
	Size: 54, 56, 58, 60, 62 Aeolus RSL, carbon rails, 145 mm width
	Size: 56, 60 Bontrager Aeolus Pro, carbon rails, 145 mm width

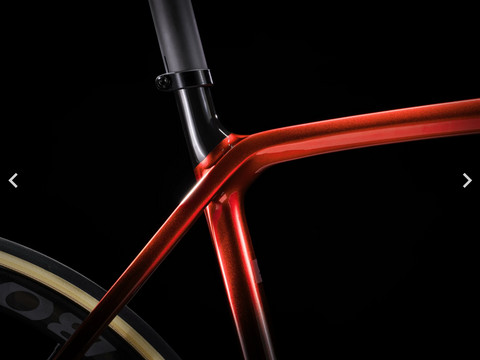

*Seatpost	Size: 47, 50, 52, 54 Bontrager carbon seat mast cap, 20 mm offset, short length
*Seatpost	Size: 56, 58, 60, 62 Bontrager carbon seat mast cap, 20 mm offset, tall length

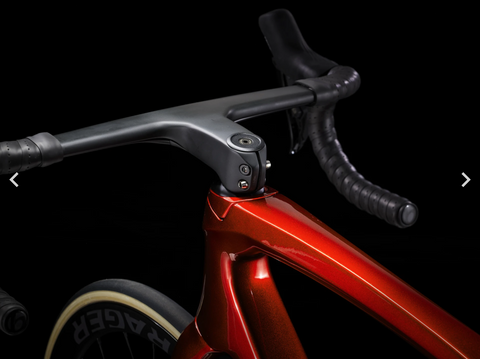

*Handlebar/stem (integrated)	Size: 47, 50 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 38 cm width, 80 mm stem length
	Size: 52 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 40 cm width, 90 mm stem length
	Size: 52 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 40 cm width, 90 mm stem length
	Size: 54 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 90 mm stem length
	Size: 56 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 100 mm stem length
	Size: 56 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 100 mm stem length
	Size: 58 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 110 mm stem length
	Size: 60 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 44 cm width, 110 mm stem length
	Size: 60, 62 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 44 cm width, 110 mm stem length
Handlebar tape	Bontrager Supertack Perf tape

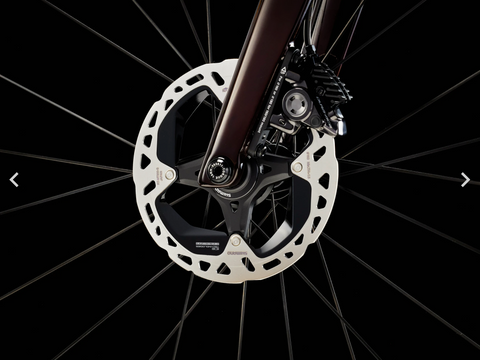

Brake	Shimano Dura-Ace hydraulic disc
*Brake rotor	Size: 47, 50, 52, 54, 56, 58, 60, 62 Shimano CL900, CentreLock, 160 mm
*Brake rotor	Size: 52, 56, 60 Shimano MT900, CentreLock, 160 mm
Rotor size	Max brake rotor sizes: 160mm front & rear

Battery	Shimano BT-DN300
Charger	Charging cable included

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
