It's right for you if...
You're in it for the podium. You want an ultra-light, ultra-capable XC machine that's proven on the world stage. You want to sprint up climbs and hammer to the finish, and feel good doing it thanks to 80 mm of IsoStrut rear suspension. From wheels to cockpit, you crave carbon and you want the most meticulous high-mod carbon lay-up we offer on a mountain bike.
The tech you get
A featherweight, high-modulus SLR OCLV Mountain Carbon frame with modern XC geometry. 110 mm of front suspension from a RockShox SID SL Ultimate fork with DebonAir spring and Charger Race Day damper and 80 mm of IsoStrut rear suspension from a RockShox SIDLuxe shock – all with remote lockout. An ultralight, fully wireless SRAM XX SL AXS 12-speed electronic transmission, Bontrager Kovee RSL carbon wheels, carbon Bontrager RSL Integrated bar/stem combo, Fox Transfer SL dropper post and SRAM Level Ultimate 4-piston hydraulic disc brakes.
The final word
The Supercaliber SLR 9.9 XX AXS is bred for racing and comes from a pedigree of champions. You get our top carbon XC full-suspension frame dripping with carbon components and SRAM's lightest fully-wireless group set that keeps going after the cows come home.
Why you'll love it
- You get a 110 mm fork and 80 mm of IsoStrut rear suspension that partners with slacker, capable geometry for handling the roots and rocks of modern XC courses
- You don't have to compromise stiffness for weight savings thanks to the SLR OCLV Mountain Carbon frame that's intensely light, stiff and responsive
- IsoStrut gives you tunable, damped suspension without missing out on efficiency for hammering up climbs at top speed

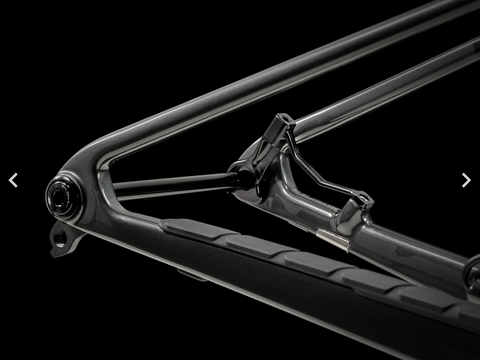

- Pivotless seat stays save on weight and actively bend to help soak up trail chatter
- Cream-of-the-crop components, like a RockShox SID Ultimate fork and fully wireless direct-mount SRAM XX SL AXS transmission give you the performance advantage
Colour Options:

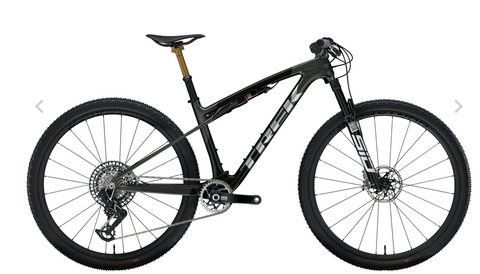

- Deep Smoke
- Carbon Red Smoke (pictured)

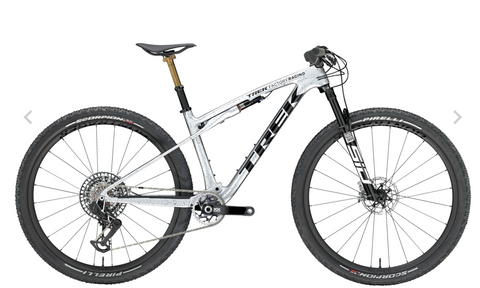

- Argent Drizzle
*Please note – spec applies to all sizes unless listed separately
| Frame | SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel |
|---|---|
| Frame set | SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel |
| Fork | RockShox SID SL Ultimate, DebonAir spring, Charger Race Day damper, dual remote lockout, tapered steerer, 44 mm offset, Boost110, 15mm Maxle Stealth, 110 mm travel |

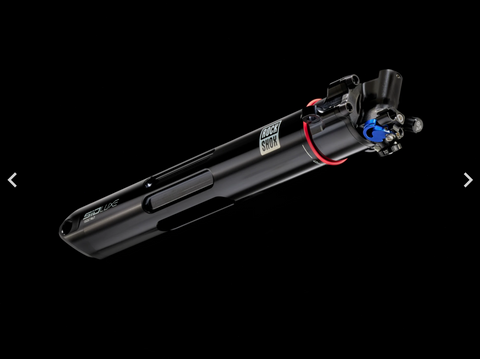

| Shock | Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper |
| Suspension lever | RockShox TwistLoc Ultimate |
| Max compatible fork travel | 120 mm (533 mm axle-to-crown) |

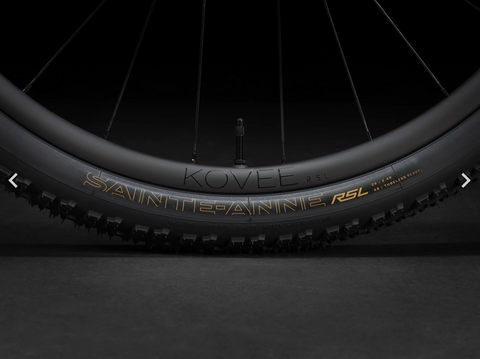

| Wheel front | Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CentreLock, Boost110, 15 mm thru axle |
|---|---|
| Wheel rear | Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CentreLock, Boost148, 12 mm thru axle |
| Tyre | Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.20" |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | Frame: 29x2.40", Fork: See manufacturer |
| Shifter | SRAM AXS POD Ultimate |
|---|---|

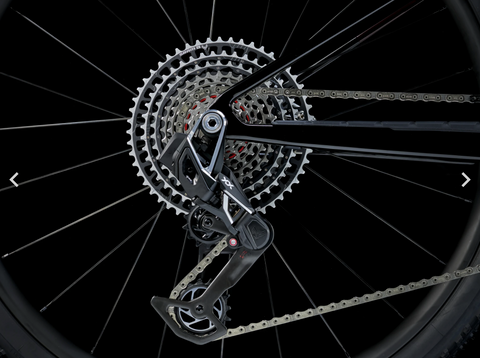

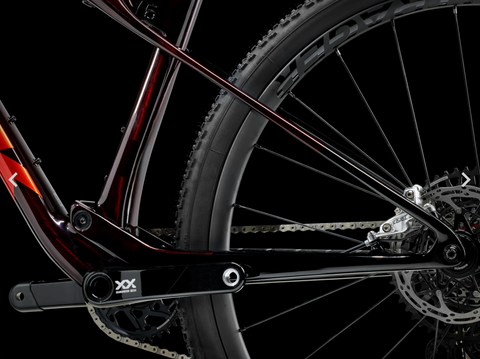

| Rear derailleur | SRAM XX SL Eagle AXS, T-Type |

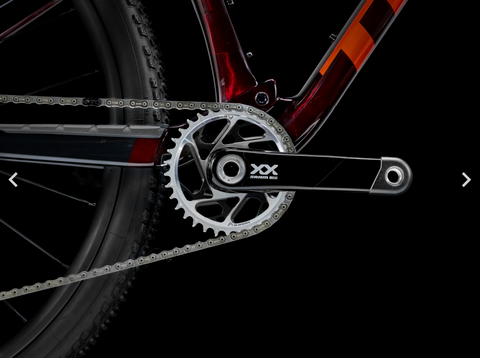

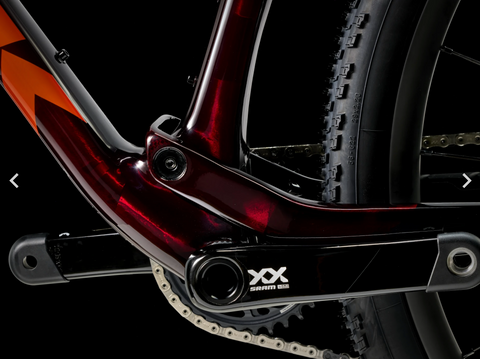

| *Crank |
Size: S, M SRAM XX SL Eagle, T-Type, DUB, 34T ring, 55 mm chain line, 170 mm length |
|
Size: M/L, L, XL SRAM XX SL Eagle, T-Type, DUB, 34T ring, 55 mm chain line, 175 mm length |
|
| Bottom bracket | SRAM DUB, 92 mm, PressFit |
| Cassette | SRAM Eagle XS-1299, T-Type, 10-52, 12-speed |
| Chain | SRAM XX Eagle, T-Type, 12-speed |
| Max. chainring size | 1x: 38T, min 30T |
| Saddle | Aeolus RSL, carbon rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S, M Fox Transfer SL, 100 mm travel, internal routing, 31.6 mm |
|
Size: M/L, L Fox Transfer SL, 125 mm travel, internal routing, 31.6 mm |
|
|
Size: XL Fox Transfer SL, 150 mm travel, internal routing, 31.6 mm |
|

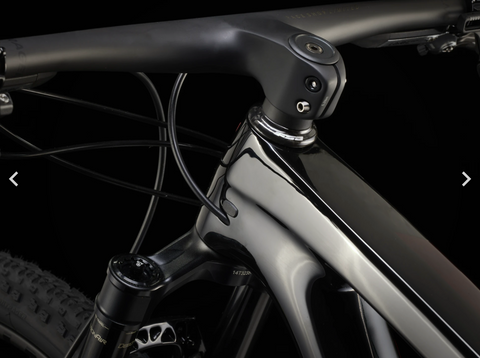

| *Handlebar/stem (integrated) |
Size: S, M, M/L Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length |
|
Size: L Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length |
|
|
Size: XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length |
|
| Head set | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Brake | SRAM Level Ultimate 4-piston hydraulic disc |
| Brake rotor | SRAM CentreLine X, CentreLock, round edge, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
| Battery | SRAM eTap battery pack (with charger) |
|---|
| Weight | M – 9.45 kg / 20.84 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
