It's right for you if...
You’re looking for a do-it-all full-suspension mountain bike that's efficient and fast, but doesn't shy away from some bigger stuff. You want the added stiffness and weight savings of a carbon frame, and want parts packed with performance advantages.
The tech you get
A light and stiff OCLV Mountain Carbon frame, 130 mm RockShox Pike Ultimate fork with DebonAir spring and Charger 3 RC2 damper, 120 mm of rear travel with a RockShox Deluxe Ultimate RCT shock and SRAM's wireless 12-speed XX AXS direct-mount transmission that's as light as it is precise. Plus, a wide carbon Bontrager Line Elite 30 wheels with a 108-tooth Rapid Drive hub for instant engagement, 4-piston brakes for confident descents, a RockShox Reverb AXS Dropper and carbon handlebar/stem combo.
The final word

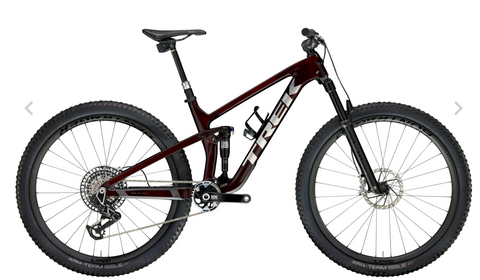

The Top Fuel 9.9 is a performance-built carbon rough-terrain bike with top-tier parts that give you noticeable benefits on the trail, like more speed from the carbon wheels, more grip from the ultra-smooth suspension and incredible shifting performance from SRAM's wireless XX AXS transmission.
Why you'll love it
- You get the capability of a trail bike and the pedalling efficiency of an XC steed all wrapped up in one ready-to-party package
- Wider Bontrager Line Elite 30 wheels provide better tyre support so you can run lower pressure and get more traction

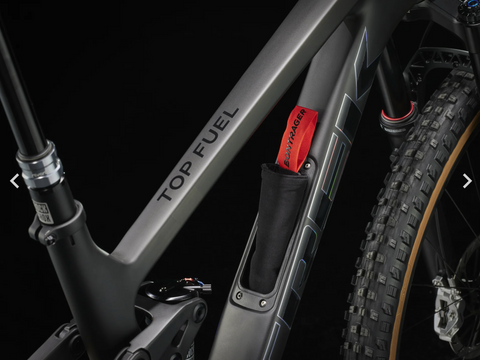

- A sleek internal storage compartment gives you a versatile spot to stow tools and gear
- SRAM's direct-mount T-Type wireless transmission delivers next-level performance with precise shifts under load and unmatched durability
- Removable Knock Block 2.0 has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius
Colour Options:
- Matte Emerald Iris
- Matte Raw Carbon
- Pennyflake
- Carbon Red Smoke
*Please note – spec applies to all sizes unless listed separately

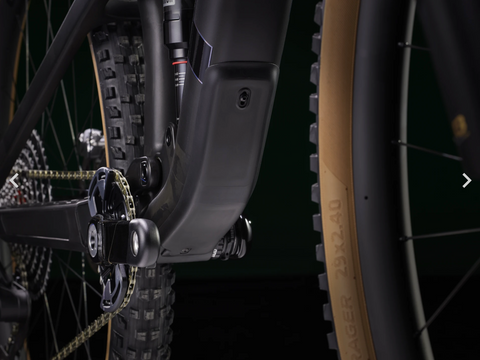

| Frame | OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel |
|---|---|
| Fork | RockShox Pike Ultimate, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 130 mm travel |

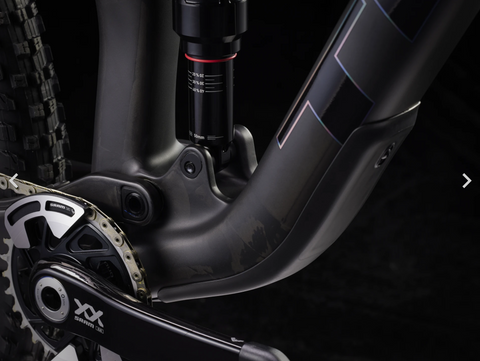

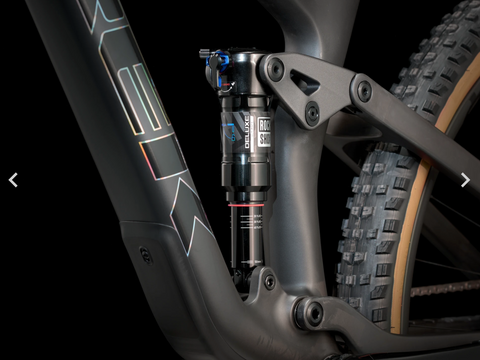

| Shock | RockShox Deluxe Ultimate RCT, 185 mm x 50 mm |
| Max compatible fork travel | 130mm (541mm axle-to-crown) |
| Wheel front | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle |
|---|---|
| Wheel rear | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle |

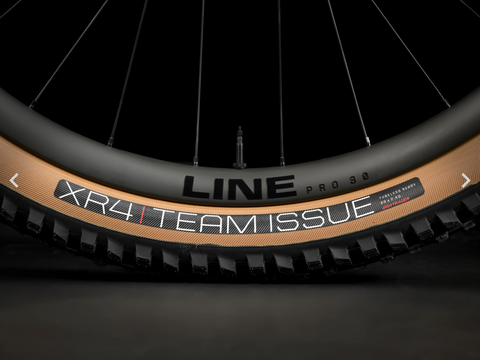

| Tyre | Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.40" |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| Shifter | SRAM AXS POD Ultimate |
|---|---|

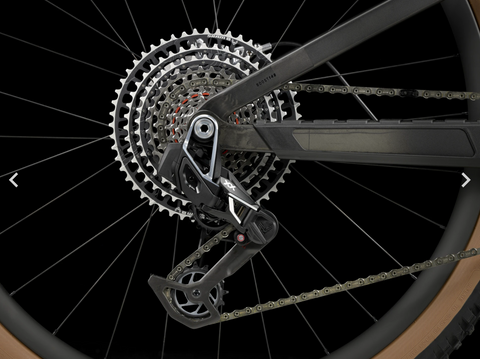

| Rear derailleur | SRAM XX SL Eagle AXS, T-Type |

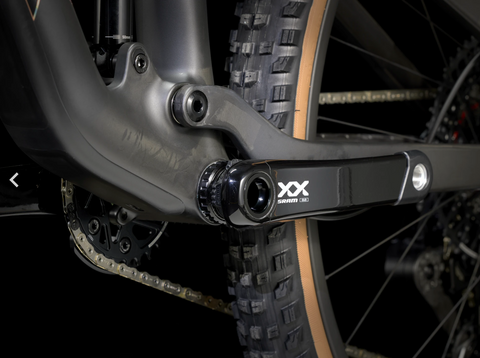

| Crank | SRAM XX Eagle, DUB, 30T, T-Type, 55 mm chainline, 170 mm length |
| Bottom bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| Cassette | SRAM Eagle XS-1299, T-Type, 10-52, 12-speed |
| Chain | SRAM XX Eagle, T-Type, 12-speed |
| Max. chainring size | 1x: 36T round, 34T oval, min 28T |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
|---|---|
| *Seatpost |
Size: S RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length |
|
Size: M, M/L RockShox Reverb AXS, 150 mm travel, wireless, 34.9 mm, 440 mm length |
|
|
Size: L, XL RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length |
|
| *Handlebar/stem (integrated) |

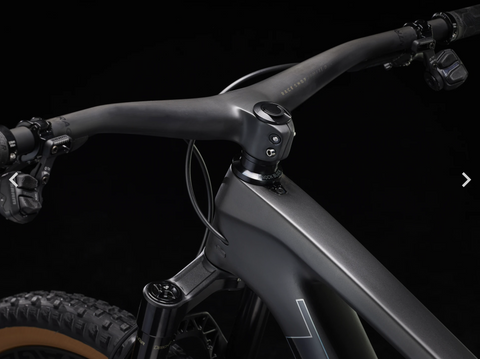

Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length |
|
Size: M, M/L, L, XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length |
|

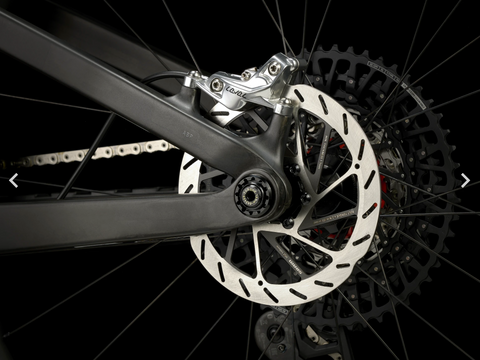

| Brake | SRAM Level Ultimate 4-piston hydraulic disc |
| *Brake rotor |
Size: S, M, M/L, L, XL SRAM HS2, 6-bolt, 160 mm |
|
Size: S, M, M/L, L, XL SRAM HS2, 6-bolt, 180mm |
|
| Rotor size | Max brake rotor sizes - Frame: 180mm, Fork: see fork manufacturer |
| Battery | SRAM eTap battery pack (with charger) |
|---|
| Weight | M - 12.65 kg / 27.89 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
