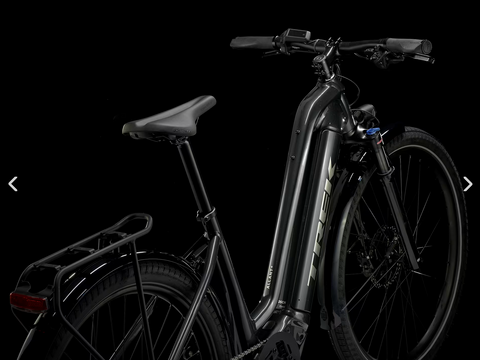

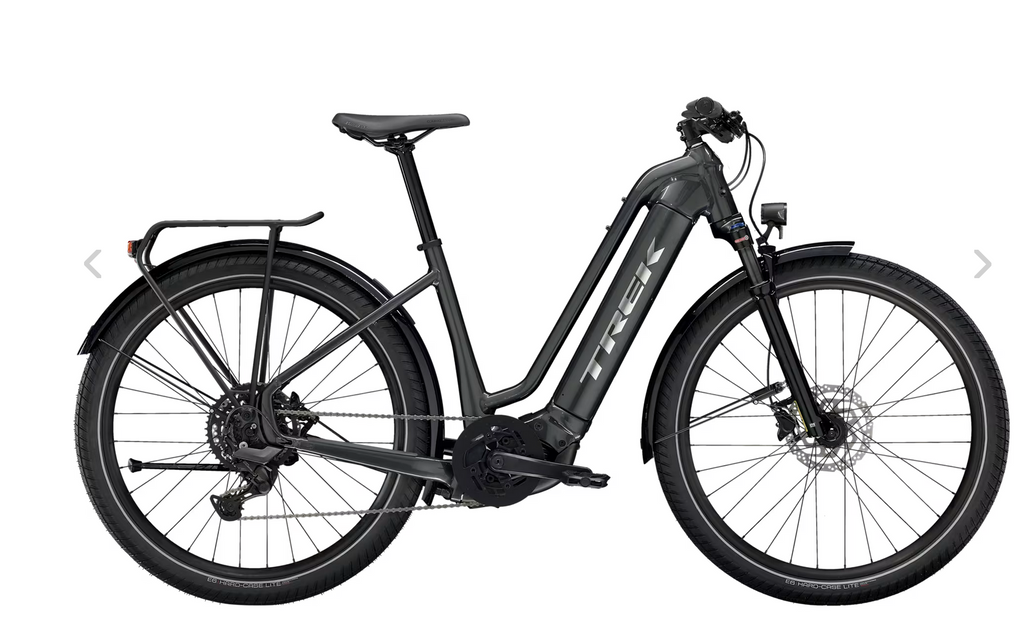

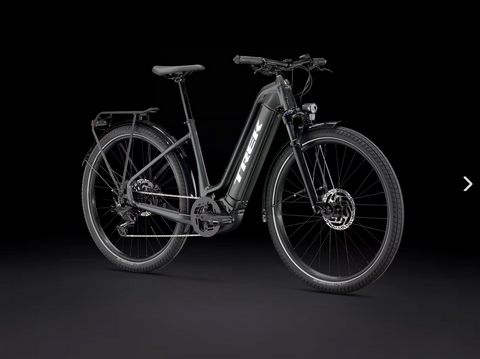

The Allant+ 7 Lowstep is an award-winning performance e-bike built for riders and commuters who want a stylish, durable e-bike with the added road-smoothing benefits of a suspension fork. The powerful and connected Bosch smart system, quality parts and a wealth of thoughtful design details make this electric bike a smart solution for getting around town every day.
*Please note – spec applies to all sizes unless listed separately
- Frame:
-
High-performance hydroformed alloy, Removable Integrated Battery, Range Boost-compatible, internal cable routing, Motor Armor, post-mount disc, 135x5 QR
- Fork:
-
SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel
- Hub front:
-
Formula DC-20, alloy, 6-bolt, 100x5 mm
- Skewer front:
- Hub rear:
-
Bontrager alloy, sealed bearing, 6-bolt, 135x5 mm
- Skewer rear:
- Rim:
-
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
- Spokes:
-
14 g stainless steel, black
- *Tyre:
-
Size: S, M, L:Kenda Kwik Seven.5 27.5x2.4" w/K-Shield protection and reflective stripeSize: S, M, L:
Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40" - Max tyre size:
- 27.5 x 2.40"

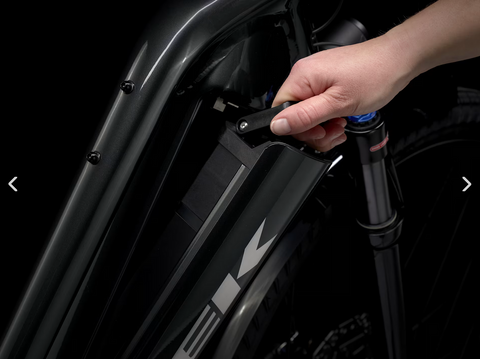

- Battery:
-
Bosch PowerTube 500 Wh, smart system
- Charger:
-
Bosch standard 4A, 230V, smart system

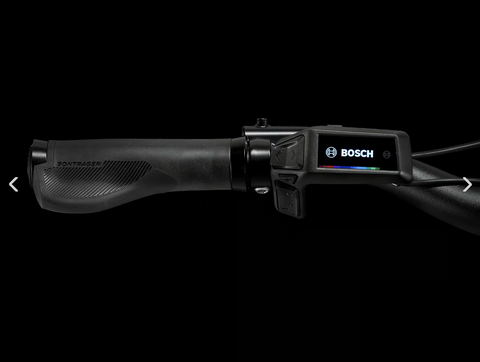

- Computer:
-
Bosch Purion 200
- Motor:
-

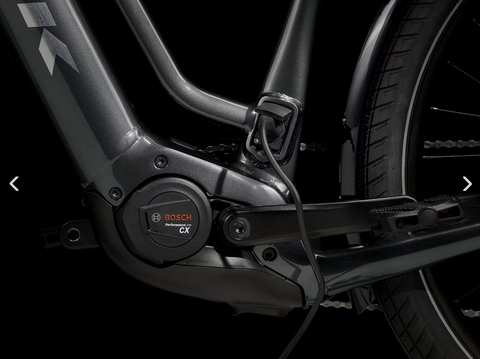

Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
- E-bike Classification:
- Class 1
- Shifter:
-
Shimano U4000, 9-speed

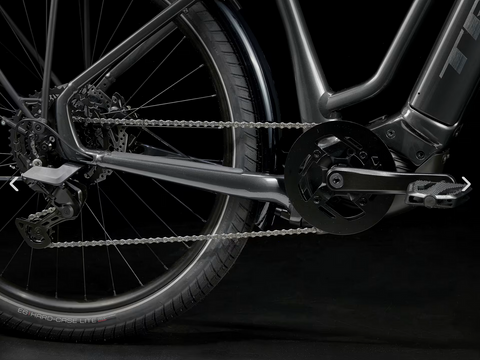

- Rear derailleur:
-
Shimano CUES U4000
- *Crank:
-
Size: S, M:
ProWheel alloy, 170 mm lengthSize: L:
ProWheel alloy, 175 mm length - Chainring:
- Cassette:
-
Shimano LINKGLIDE LG300, 11-46, 9-speed
- Chain:
-
Shimano LG500, 9/10/11-speed
- Pedal:
- Max. chainring size:
- 1x: 48T
- Saddle:
- Seatpost:
-
Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330mm length

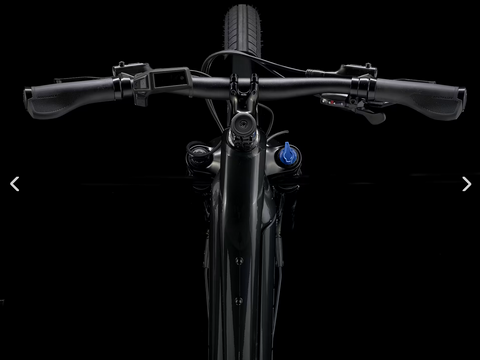

- *Handlebar:
-
Size: S, M:Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width
- Grips:
- *Stem:
-
Size: M:Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm lengthSize: L:Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
- Head set:

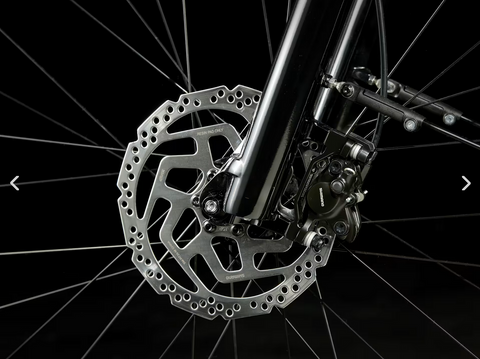

- Brake:
-
Shimano MT200 hydraulic disc
- Brake rotor:
-
Shimano RT26, 6-bolt, 180 mm
- Rotor size:
- Max brake rotor sizes: 180 mm front & rear

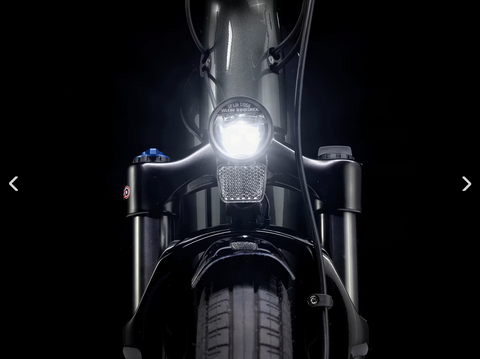

- *Light:
-
Size: S, M, L:
Spanninga SOLO for e-bikeSize: S, M, L:Herrmans H-Black MR8-E, 180 Lumen, 60 Lux, LED, headlight - Kickstand:
-
Rear mount, alloy

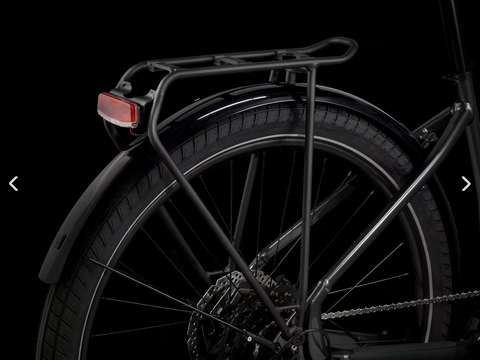

- *Cargo rack:
-
Size: S, M, L:MIK-compatible alloy rear rack, maximum load 25 kgSize: S, M, L:MIK-compatible alloy rear rack
- *Mudguard:
-
Size: S, M, L:
SKS plastic, rearSize: S, M, L:SKS plastic, front
- Weight:
- M - 25.90 kg / 57.1 lb
- Weight limit:
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
