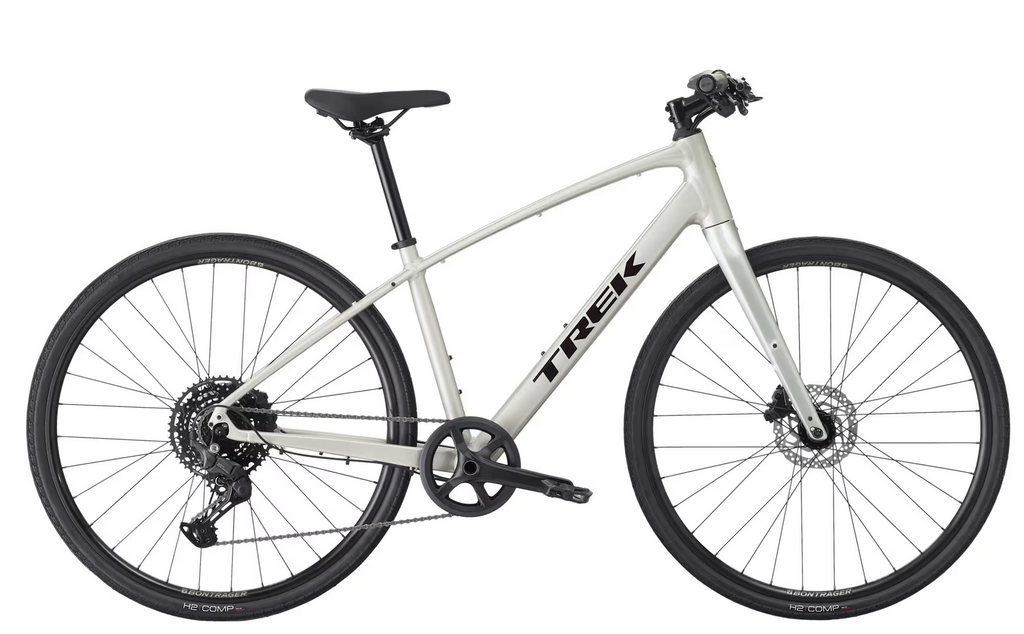

The FX 3 is a versatile hybrid bike that's primed for performance, comfort and utility. It has features like a lightweight aluminium frame, a carbon fork, a 1x drivetrain and powerful disc brakes that stop in any weather. It's a commuting pro if you want it to be, or the perfect fitness companion on road and rail trails.
*Please note – spec applies to all sizes unless listed separately
Frame: Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
Fork: FX carbon, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR
Hub front: Formula DC-20, alloy, 6-bolt, 100x5 mm
Skewer front: 139x5 mm bolt-on
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Skewer rear: 152x5 mm QR
Rim: Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Tyre: Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm
Shifter: Shimano CUES U6000 w/optical gear display, 10-speed

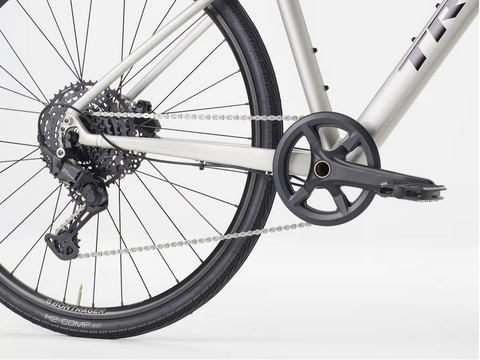

Rear derailleur: Shimano CUES U6000 GS
*Crank:
Size: XS, S, M
Prowheel alloy, 40T narrow-wide ring, 170 mm length
Size: L, XL
Prowheel alloy, 40T narrow-wide ring, 175 mm length
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain: Shimano LG500
Pedal: Bontrager City pedals
Saddle: Bontrager H1
*Seatpost:
Size: XS, S, M
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Size: L, XL
Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length

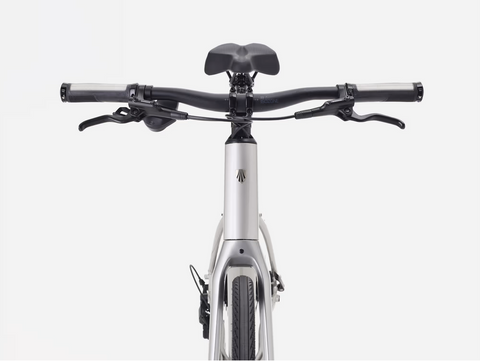

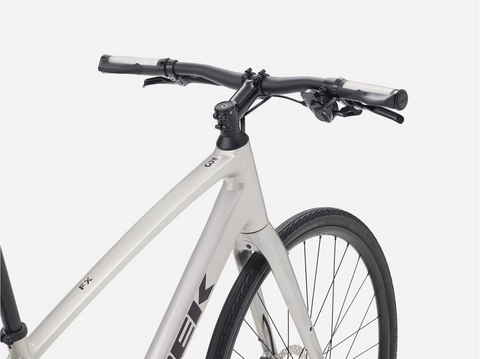

*Handlebar:
Size: XS, S, M
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: L, XL
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Grips: Trek Line Ergonomic Pro, lock-on
*Stem:
Size: XS, S
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size: M, L, XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Brake: Shimano hydraulic disc, MT201 lever, UR300 calliper
Brake rotor: Shimano RT26, 6-bolt, 160 mm
Weight: M - 11.65 kg / 25.69 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
Colour Options:

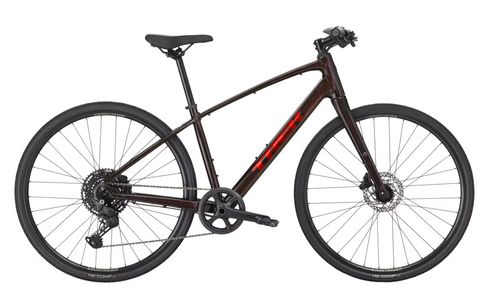

- Dark Carmine
- Lunar Silver

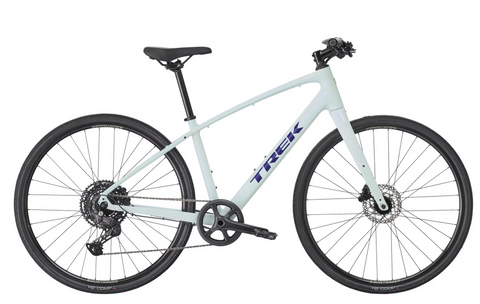

- Magic Mint
