Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
*Please note – spec applies to all sizes unless listed separately
*Frame:
Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork:
Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Hub front: Formula DC-20, alloy, 6-bolt, 100x5 mm
Skewer front: Trek Thru-Skew
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Skewer rear: 173x5 mm QR
Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes: 14 g stainless steel, black
*Tyre:
Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"
Size: M , ML , L , XL , XXL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"

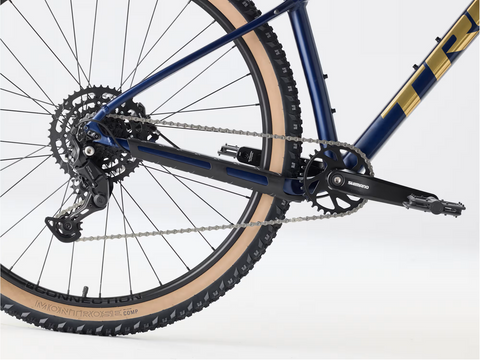

Shifter: Shimano U4000, 9-speed
Rear derailleur: Shimano CUES U4000
*Crank:
Size: XS , S , M , ML
Shimano CUES U4001, 32T, 52mm chain line, 170 mm length
Size: L , XL , XXL
Shimano CUES U4001, 32T, 52mm chain line, 175mm length
Bottom bracket: Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain: Shimano LG500
Pedal: VP-536 nylon platform
Saddle: Bontrager Verse Short, stainless steel rails
*Seatpost:
Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar:
Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Trek Line Comp, nylon lock-on
*Stem:
Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M , ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Size: XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set: Semi-integrated, 1-1/8"
Brake: Shimano MT200 hydraulic disc
*Brake rotor:
Size: XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160 mm
Size: M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 180 mm
Brake Set: Shimano MT200 hydraulic disc
Weight: M - 15.10 kg / 33.29 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
Colour Options:

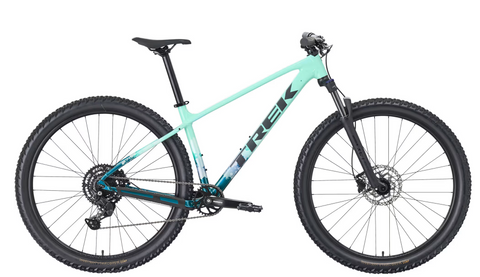

- Miami Green/Dark Aquatic Fade

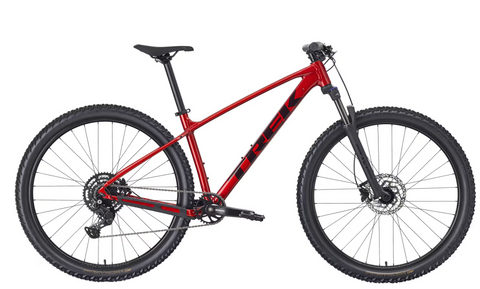

- Fury Red
- Mulsanne Blue
