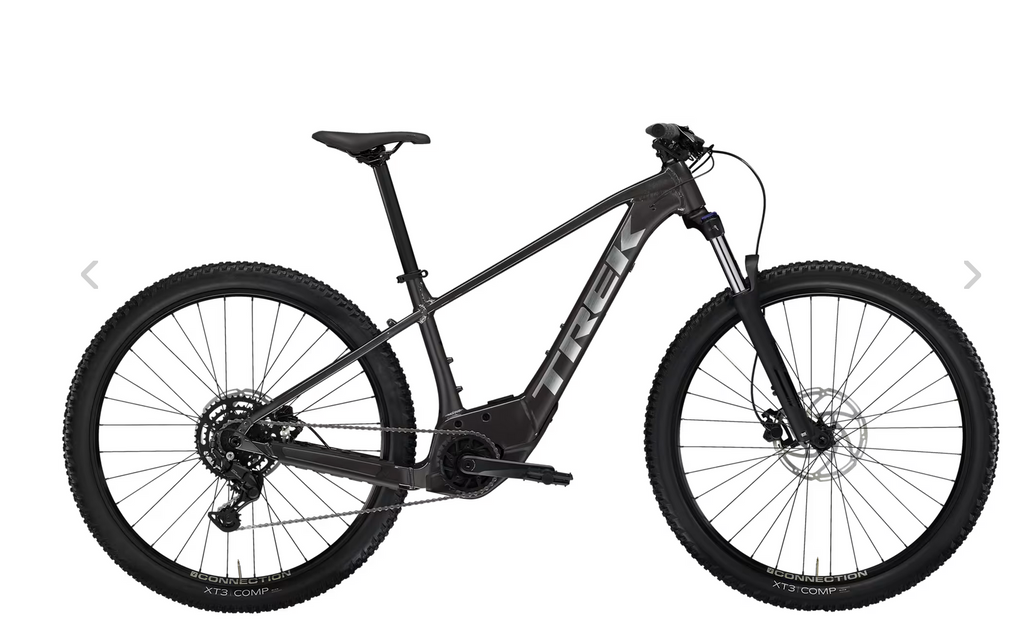

The Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120 mm suspension fork soaks up rocks, roots and pot holes on your ride, while the 9-speed Shimano CUES is durable and reliable for wherever you roll.
*Please note – spec applies to all sizes unless listed separately
- *Frame:
-
Size: XS:Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axleSize: S , M , L , XL:

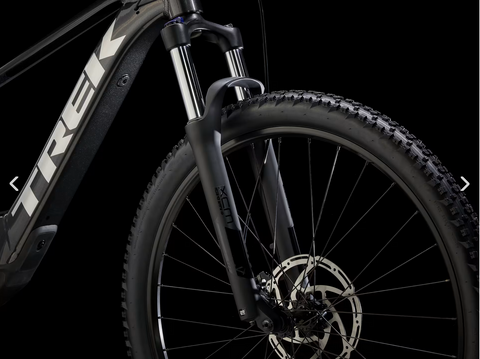

Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle - *Fork:
-
Size: XS :SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 100 mm travelSize: S , M , L , XL :SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel
- Hub front:
-
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
- Hub rear:
-
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
- Skewer rear:
-
Bontrager Switch thru axle, removable lever
- Rim:
-
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
- *Tyre:
-
Size: XS , S:
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"Size: M , L , XL:Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" - Max tyre size:
- Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer
- Battery:
-

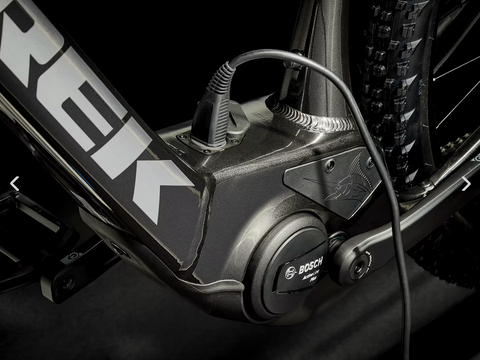

Bosch CompactTube 400 Wh
- Charger:
-
Bosch standard 2A, 230V, smart system
- Computer:
-

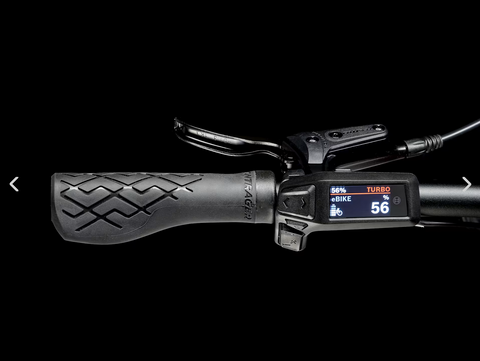

Bosch Purion 200
- Motor:
-

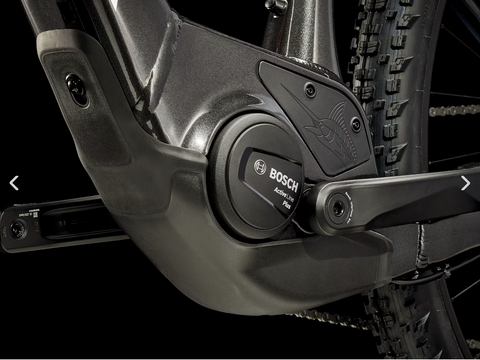

Bosch Active Line Plus, 50 Nm
- E-bike Classification:
- Class 1
- Shifter:
-
Shimano U4000, 9-speed
- Rear derailleur:
-
Shimano CUES U4000
- Crank:
- Chainring:
- Cassette:
-
Shimano LINKGLIDE LG300, 11-46, 9-speed
- Chain:
-
Shimano LG500
- Pedal:
- Max. chainring size:
- 1x: 36T, min 32T

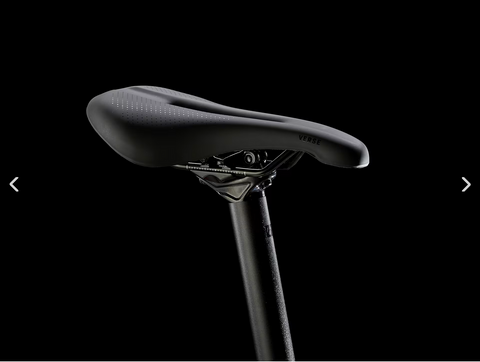

- Saddle:
- *Seatpost:
-
Size: XS , S:Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm lengthSize: M:Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm lengthSize: L , XL:Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
- *Handlebar:
-
Size: XS , S:Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm widthSize: M , L , XL:
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width - Grips:
- *Stem:
-
Size: XS , S:Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
- Head set:
- Brake rotor:
-
Tektro, CentreLock, 203 mm
- Brake Set:
- Rotor size:
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight:
- M - 22.45 kg / 49.5 lb (with tubes)
- Weight limit:
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Colour: Dnister Black
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
