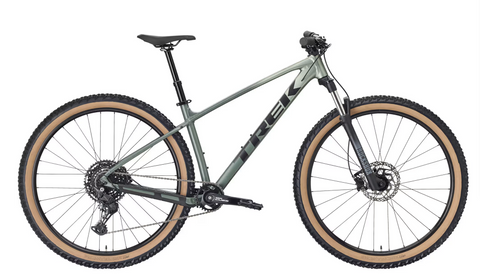

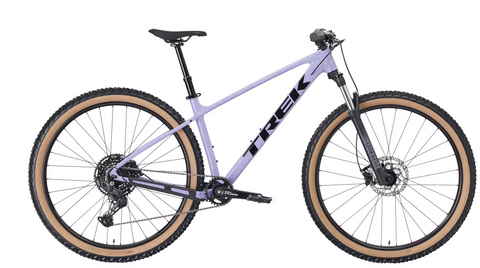

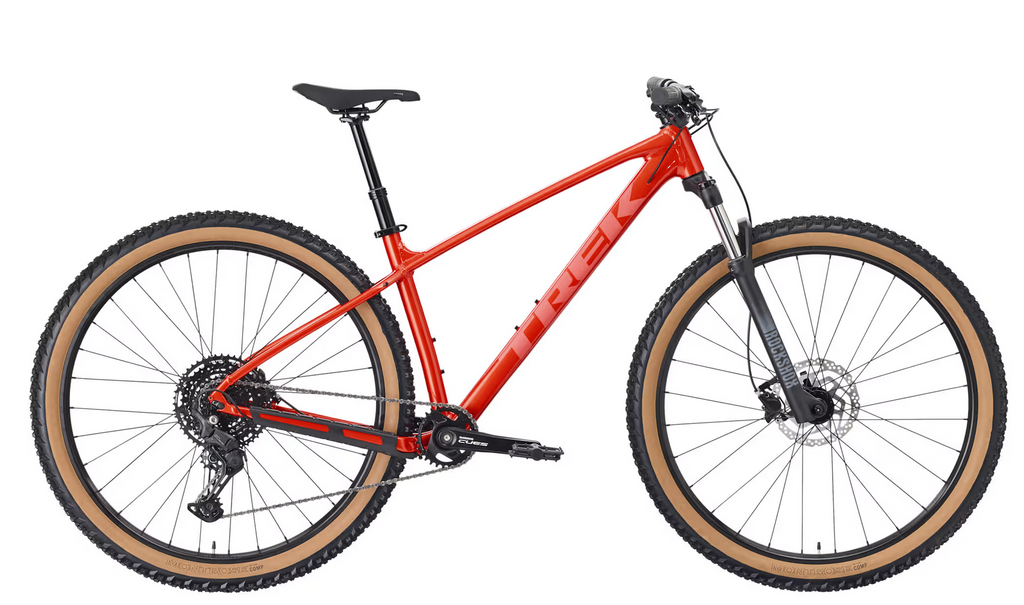

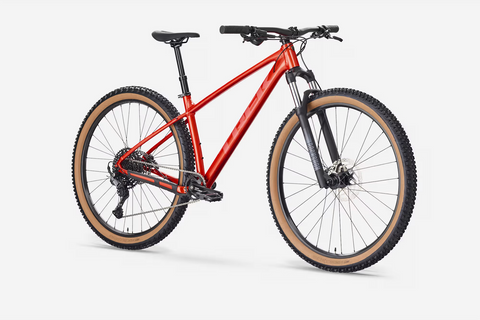

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
*Please note – spec applies to all sizes unless listed separately

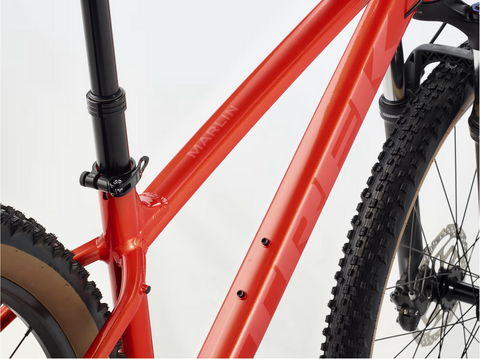

*Frame:
Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size: S , M , ML , L , XL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork:
Size: XS , S
RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL
RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Hub front: Formula DC-20, alloy, 6-bolt, 100 mm
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Skewer rear: 173x5 mm QR
*Rim:
Size: XS , S , M , ML , L , XL
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
Size: M , ML , L , XL
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
*Tyre:
Size: XS , S
Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35''
Size: M , ML , L , XL
Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35"
Rim strip: Bontrager TLR
Shifter: Shimano U6000, 10-speed

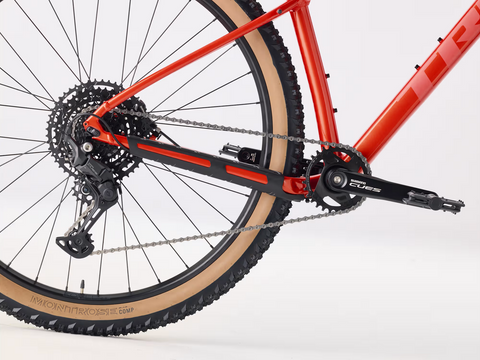

Rear derailleur: Shimano CUES U6000 GS
*Crank:
Size: XS , S , M , ML
Shimano U4000, 30T chainring, 170 mm length
Size: L , XL
Shimano U4000, 30T chainring, 175 mm length
Bottom bracket: Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain: Shimano LG500
Pedal: VP-536 nylon platform
Saddle: Bontrager Verse Short, stainless steel rails
*Seatpost:
Size: XS , S
TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length
Size: M
TranzX JD-YSI34, 125 mm travel, internal routing, 31.6 mm, 405 mm length
Size: ML , L , XL
TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length

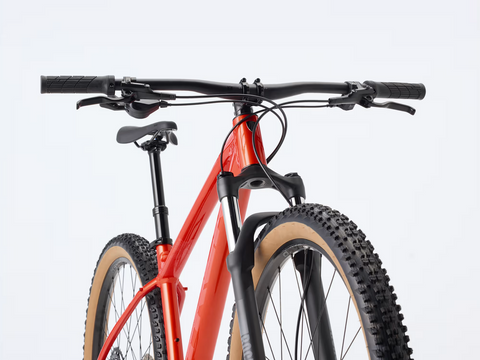

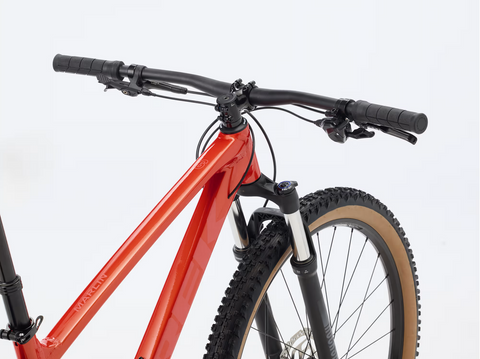

*Handlebar:
Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , ML , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips: Trek Line Comp, nylon lock-on
*Stem:
Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M , ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Head set: Semi-integrated, 1-1/8"
Brake: Shimano MT200 hydraulic disc
*Brake rotor:
Size: XS , S , M , ML , L , XL
Shimano RT26, 6-bolt, 160 mm
Size: M , ML , L , XL
Shimano RT26, 6-bolt, 180 mm
Brake Set: Shimano MT200 hydraulic disc
Weight: M - 15.00 kg / 33.07 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
Colour Options:
- Matte Lichen/Keswick Green Fade
- Gloss Lavender Haze
- Lava
