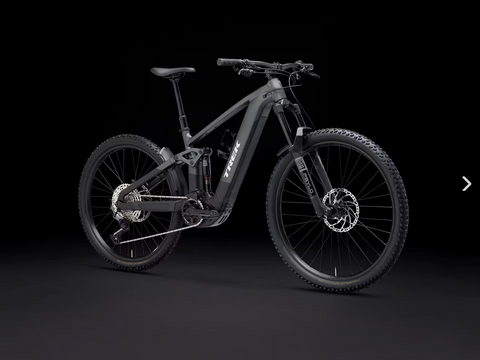

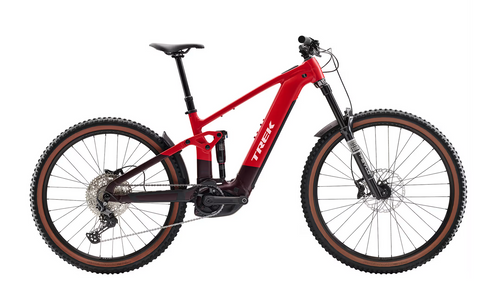

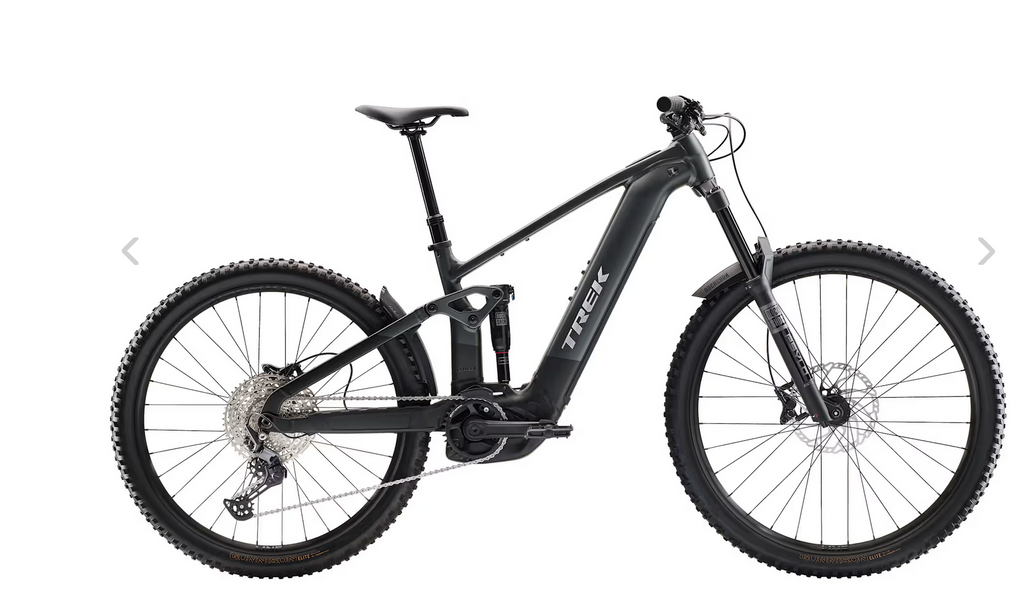

The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.
*Please note – spec applies to all sizes unless listed separately
- Frame:
-
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
- Fork:
-
RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
- Shock:
-
RockShox Deluxe Select+ RT, 205 mm x 65mm
- Hub front:
-
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
- Hub rear:
-
Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle
- Skewer rear:
- Rim:
-
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
- *Tyre:
-
Size: S, M, L, XL:Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"Size: S, M, L, XL:Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"Size: M, L, XL:Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
- Tyre part:
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip:
- Max tyre size:
- Frame: 27.5x2.60", Fork: See manufacturer
- Charger:
-
Bosch standard 2A, 230V, smart system
- Controller:
-
Bosch System Controller BRC3100, smart system
- Motor:
-
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
- E-bike Classification:
- Class 1
- Shifter:
-
Shimano Deore M6100, 12-speed
- Rear derailleur:
-
Shimano Deore M6100, long cage
- Crank arm:
-
E*thirteen E*spec Plus, 160 mm length
- Cassette:
-
Shimano Deore M6100, 10-51, 12-speed
- Chain:
-
Shimano Deore M6100, 12-speed
- Pedal:
- Max. chainring size:
- 1x: 36T
- Saddle:
-
Bontrager Verse P3, steel rails
- *Seatpost:
-
Size: S:TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mmSize: M, L, XL:TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
- Handlebar:
-
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
- Grips:
-
Bontrager XR Trail Comp, nylon lock-on
- Stem:
- Head set:
- Brake:
-
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
- Brake rotor:
-
Shimano RT66, 6-bolt, 203 mm
- Rotor size:
- Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
- Mudguard:
- Weight:
- M – 25.28 kg/55.74 lb (with TLR sealant, no tubes)
- Weight limit:
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
