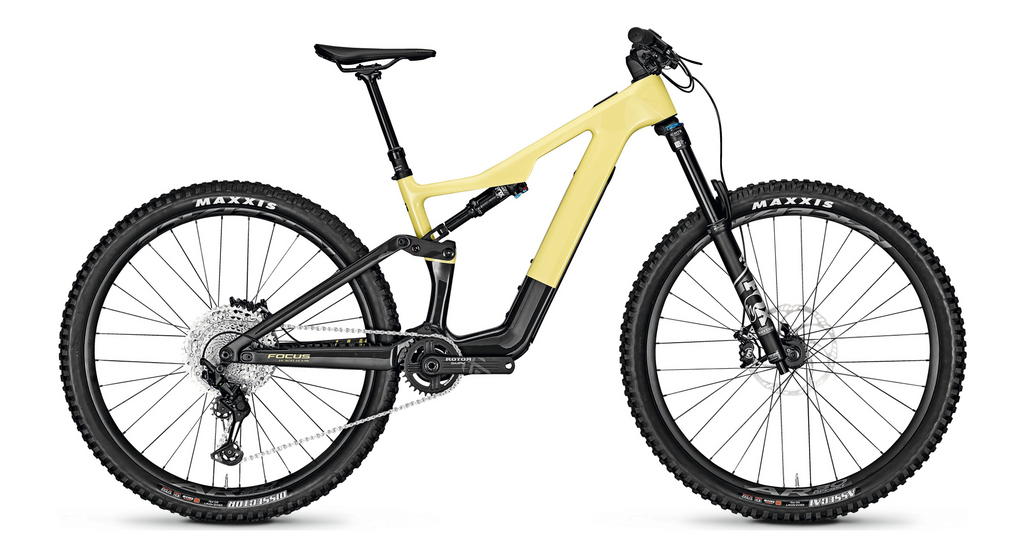

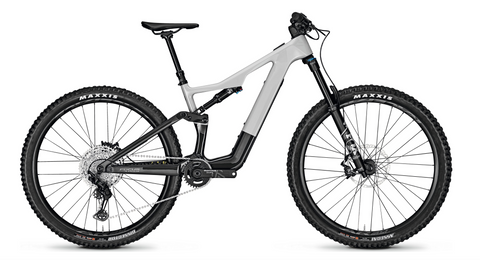

2024 Focus Jam2 SL 8.8

  • Sale
  • $6,999.00
  • Regular price $9,999.00

JAM² SL 8.8 Features

Carbon frame with Fazua Ride 60 e-drive & 430 Wh battery

160 mm FOX Rhythm 29 E-Bike fork & 150 mm FOX DPS shock

Shimano XT 1x12

Makes the most of every trail

  • Nimble and light pure bike characteristics

    The JAM² SL 8.8 is the perfect light e-MTB for people who want the best price-performance ratio. The full-carbon frame optimises the weight without compromising on stiffness and usability. The top tube is designed in the most radical and minimalist way. Thanks to the shock semi-integration, the JAM² SL 8.8 has a low stand-over height that gives you generous space for moving. Still, all parts to adjust your shock settings are easy to reach. As the motor and battery of our JAM² SL 8.8 are fully integrated in the down tube, this e-MTB not just rides but also looks like a pure bike.

  • Support power of an e-bike

    The FAZUA Ride 60 drive unit provides the feeling of a natural ride but still has got your back on all climbs. The compact and light, yet powerful system has 60 Nm torque and a maximum power output of 450 W. If you need an extra push, the boost function helps you to tackle even the steepest sections. Thanks to the high efficiency of the FAZUA system and a battery with 430 Wh, your ride won't stop before reaching your very own Rider's High. Once the Fazua Range Extender is available, you can also extend by 210 Wh if you need more energy. The drive system already features three different riding modes. On top, you can individualize the motor support based on your riding preferences via the FAZUA App. It allows you to set Max Power, Support Relation and Ramp-up according to your own personal needs.

  • Adjustable geometry and adapted kinematics

    The JAM² SL 8.8 features two points to adjust your geometry: the head angle and the chainstay length. The steeper head angle of 65,5° results in a more agile handling of the bike, while the slack position of 64,5° gives it a more downhill-oriented setting. Switching the FLIP CHIPs and adjusting your chainstay length from 440 to 447 mm changes the whole set-up of your bike. With longer chainstays, the JAM² SL 8.8 rides more stable and makes steep climbs easier, whereas the short setting leads to a more agile geometry. For the JAM² SL 8.8, we adapted our F.O.L.D. (FOCUS Optimised Linkage Design) and reduced the amount of linkage parts resulting in a significant weight loss. The updated kinematic design reduces brake influences and gives you maximum control of your bike in every situation.

Specification:


Frame material:
Carbon

Frame:
Carbon technology frame, 150mm F.O.L.D. GEN3 kinematics, 148x12 thru axle, internal cable routing, Post Mount 180 mm

Fork:
FOX 36 Float Rhythm 29 E-Bike, Grip, 110 x 15 mm, 44 mm rake

Travel of suspension fork:
160 mm

Shock:
OX Float DPS, 3-position lever, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing

Motor:
Fazua Ride 60, 60 Nm, 450 W max.

Battery Watt-hours:
430 Wh

Battery Ampere hours:
10 Ah

Display:
Fazua LED Hub + Ring Control

Shifter:
Shimano Deore XT M8100, 12-speed

Rear derailleur:
Shimano Deore XT M8100, 12-speed

Sprocket:
Shimano Deore CS-M6100, 12-speed

Chain:
Shimano Deore CN-M6100, 12-speed

Crankset:
Rotor eKAPIC RF Link 29

Transmission of drive:
front: 32, rear: 10-51

Bottom Bracket:
Integrated in Drive Unit

Handlebar:
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°

Stem:
FOCUS C.I.S. 2.0 MTB, 35 mm, aluminium

Headset:
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset

Saddle:
fi'zi:k Taiga

Seatpost:
Post Moderne dropper post PM-MT171, 31.6 mm

Brake caliper:
Magura MT5

Brake lever:
Magura MT5

Brake:
Disc

Rims:
RaceFace AR30 Offset

Rear hub:
Novatec D462, 12x148 mm

Front Hub:
Novatec D041, 15x110 mm

Tires:
Maxxis Assegai, 2.5, 3C MaxxTerra Exo TR, 63-622

Rear tire:
Maxxis Dissector 2.4, WT 3C MaxxTerra Exo TR, 61-622

Gears:
12

Bike weight incl. battery in kg:
19,7 kg

Size:
39,42,44,46

* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
