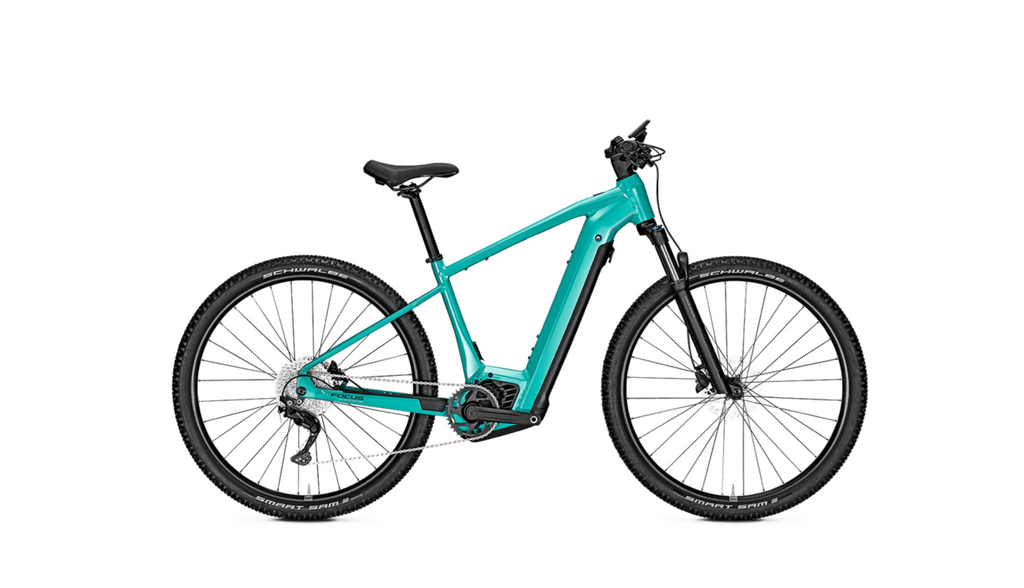

Customisable Bosch Smart System with Performance CX e-drive, Intuvia display and 625 Wh battery

Offroad-ready mountain bike geometry with 29" wheels (size XS: 27,5") and Shimano Deore 10-speed shifting

Comfortable cockpit and C.I.S. stem with integrated cable routing,

Bosch CX e-drive & 625 Wh battery

29" wheels (size XS: 27,5") & Shimano Deore 10-speed

Comfortable cockpit with C.I.S. stem

SPECIFICATIONS:

• Brake:
  • 180
• Pedal:
  • MTB, with reflector
• Frame size:
  • XS,S,M,L,XL
  • 36,40,44,48,52
• Drive train:
  • Chain
• Max total weight:
  • 150 kg
• Frame:
  • 7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, post mount 180 mm
• Fork:
  • SR Suntour XCR 34 LO Coil, 15x110 mm
• Handlebar:
  • Aluminium, 760 mm, flatbar, backsweep: 9°, 35,0 mm
• Saddle:
  • Selle Royal HRN 4007
• Seat post:
  • Aluminium, 31.6 mm
• Stem:
  • FOCUS C.I.S. integrated, 60 mm, 30°, 35 mm, aluminium
• Brakes:
  • Shimano MT200, 2-piston, hydraulic disc brake
• Crank set:
  • FSA CK-320, aluminium
• Sprocket:
  • Shimano Deore M4100, 10-speed
• Transmission:
  • front: 36, rear: 11-42
• Wheel rims:
  • RODI TRYP25, 25-622
• Brake lever:
  • Shimano MT200
• Battery:
  • Bosch Powertube, 625 Wh, removeable, lockable
  • 625 Wh
• Display:
  • Bosch LED Remote + Intuvia 100
• Motor:
  • Bosch Performance CX Gen4, 85 Nm, 250 W
• Color:
  • Diamond Black
  • bluegreen glossy
• Travel:
  • 100 mm
• Hub:
  • Shimano Alivio MT400, 15x110 mm
  • Shimano Alivio MT400, 12x148 mm
• Grip:
  • Herrmans Click
• Rear derailleur:
  • Shimano Deore M4120, 10-speed
• Tire:
  • Schwalbe Smart Sam, 57-584,Schwalbe Smart Sam 2.25, 57-622
• Bottom bracket:
  • Integrated in Drive Unit
• Shift/brake lever:
  • Shimano MT200
  • Shimano Deore M4100, 10-speed
• Spoke:
  • Zink, black
• Chain:
  • KMC X10, 10-speed
