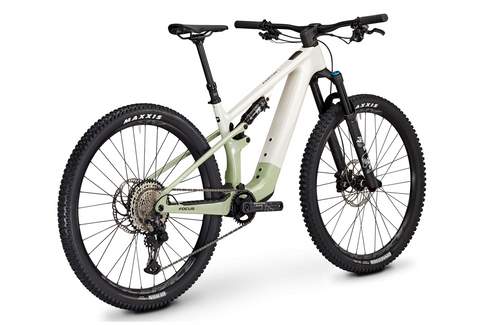

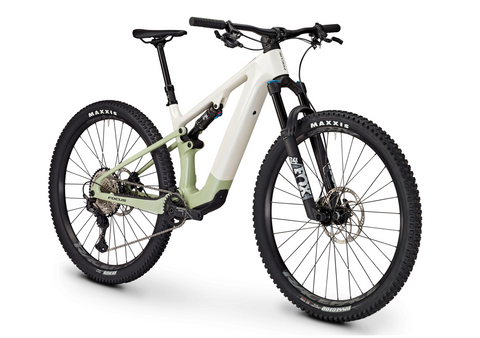

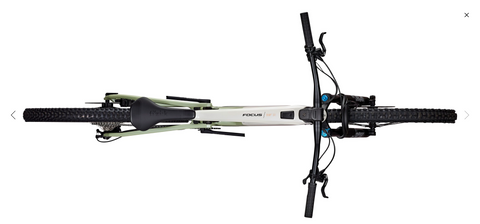

2024 Focus Vam2 SL 9.8

  • Sale
  • Regular price $9,999.00

VAM² SL 9.8 Features

MAX carbon frame

FOX 34 Float Rhythm 29 fork & FOX Float DPS shock

Shimano XT 12-speed

When efficient meets playful

  • Light and slim frame design

    The VAM² SL 9.8 is engineered with a flex pivot rear triangle that combines optimal flex behaviour with a lightweight carbon layup. The efficient but playful bike character will make you pace up hills while also giving you courage to descend fast due to the e-MTB's downhill capabilities. With our new flex pivot design, we were able to reduce the amount of frame material, bearings, and bolts. This results in our lightest e-MTB frame: the MAX carbon frame of our 9. series tips the scale at 2,172 g (size M, including linkage and bolts). On top, it gives the rear triangle its seamless look. The clean design of our VAM² SL 9.8 continues at the down tube, as the fully integrated battery ensures a slim look while further reducing weight.

  • Training made easy and fun

    Thanks to the e-drive, you will ride more trails in the same time. With its 125 mm suspension platform and direct handling, the VAM² SL 9.8 makes you enjoy and ride your trails in a new way, more like being on a giant pump track. The result: better riding skills and endless fun. Besides, you can make most of the FAZUA system by connecting it with your bike computer. It allows you to monitor cadence and power output for purposeful training. Combined with the efficient e-support, it is easier than ever to precisely ride at your performance threshold, keeping your heart rate at the perfect level for aerobic training sessions. You don't want or need any rest days but will find yourself riding on days that would usually keep you away from it.

  • Efficient FAZUA e-drive

    The light and efficient FAZUA Ride 60 makes you feel like having your legs best day. With 60 Nm torque and a maximum power output of 450 W, it pushes you forward while providing the feeling of a natural ride with minimal noise distractions. The drive system features three riding modes and an additional boost function that briefly increases the power output. You can also individualize the motor support via the FAZUA App by setting parameters like Max Power, Support Relation and Ramp-up based on your preferences. The integrated battery can be charged via the charging port at the seat tube. You will be surprised how far 430 Wh will take you. Worst case, the VAM² SL’s efficiency and lightweight also allow you to pedal home with an empty battery.

Specification:


Frame material:
Carbon

Frame:
Carbon technology frame, 125mm F.O.L.D. GEN3 kinematics, 148x12 thru axle, internal cable routing, Post Mount 180 mm

Fork:
FOX 34 Float Rhythm 29, 110x15 mm, 51 mm rake

Travel of suspension fork:
130 mm

Shock:
FOX Float DPS, 210/50 mm, hardware: 25.0 x 8.0 mm, no Bushing

Motor:
Fazua Ride 60, 60 Nm, 450 W max.

Battery Watt-hours:
430 Wh

Display:
Fazua LED Hub + Ring Control

Shifter:
Shimano Deore XT M8100, 12-speed

Rear derailleur:
Shimano Deore XT M8100, 12-speed

Sprocket:
Shimano SLX M7100, 12-speed

Chain:
Shimano Deore CN-M6100, 12-speed

Crankset:
Rotor eKAPIC RF Link 29

Transmission of drive:
front: 32, rear: 11-51

Bottom Bracket:
Integrated in Drive Unit

Handlebar:
Aluminium, 800 mm, rise: 12,5 mm, backsweep: 9°

Stem:
FOCUS C.I.S. 2.0 MTB, 35 mm, aluminium

Headset:
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset

Saddle:
fi'zi:k Taiga

Seatpost:
Post Moderne dropper post PM-MT171, 31.6 mm

Brake caliper:
Magura MT Trail, front: 4-piston / rear: 2-piston

Brake lever:
Magura MT Trail

Brake:
Disc

Rims:
RaceFace AR27, 622-27, 32H

Rear hub:
DT SWISS 370 Hybrid, 12 x 148 mm, Microspline

Front Hub:
Novatec D041, 15x110 mm

Tires:
Maxxis Dissector, 2.4 Exo, 61-622

Rear tire:
Maxxis Rekon, 61-622

Gears:
12

Bike weight incl. battery in kg:
18,40 kg

Chainrings:
1x

Seatpost type:
Dropper seatpost

Shifting type:
Mechanical shifting

Size:
39,42,44,46

* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
