1x Large only second hand - Gloss Magenta

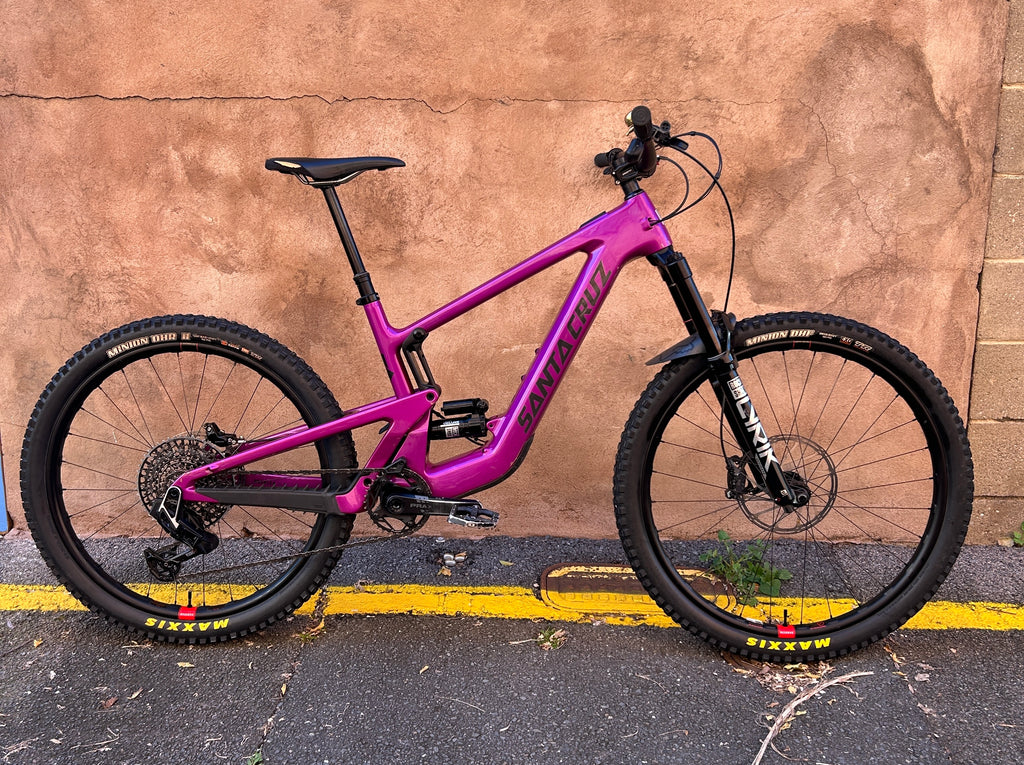

A sneaky ebike that's lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.
| Frame | |
|---|---|
|
Material |
Carbon CC |
|
Travel |
150mm |
|
Weight |
41.92 lbs / 19.01 kg |
|
Wheel Size |
MX |
| Suspension | |
|
Fork |

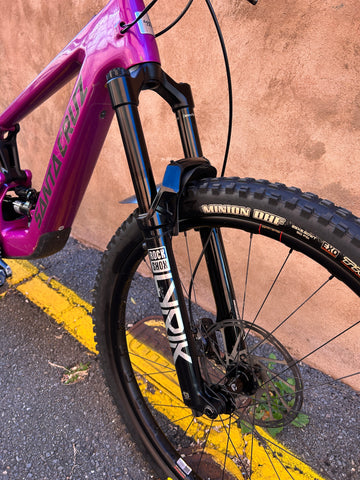

RockShox Lyrik Ultimate, 160mm |
|
Shock |

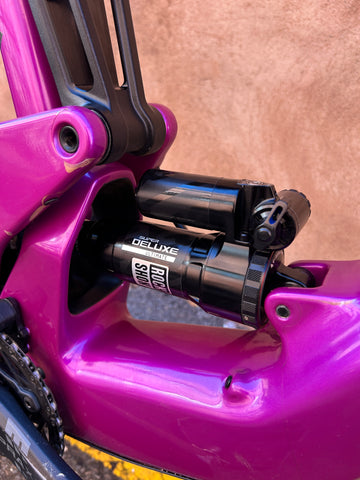

RockShox Super Deluxe Ultimate, 210x55 |
| Drivetrain | |
|
Cassette |
SRAM X0 Eagle T-Type, 10-52t |
|
Chain |
SRAM X0 Eagle T-Type, Flattop, 12spd |
|
Chainguide |
OneUp Chainguide |
|
Crankset |
Praxis eTor AL, 104BCD, 165mm |
|
Rear Derailleur |

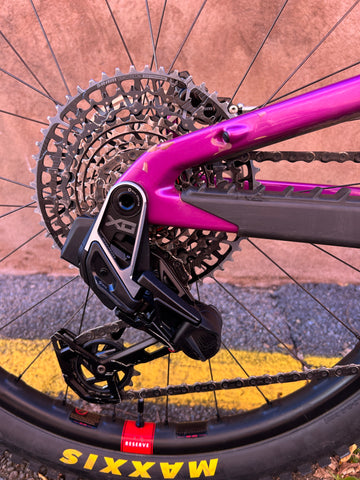

SRAM X0 Eagle AXS T-Type, 12spd |
|
Right Shifter |
SRAM AXS Pod Bridge |
| Brakes | |
|
Brakes |
SRAM Code Silver Stealth |
|
Front Rotor |
SRAM HS2 200mm |
|
Rear Rotor |
SRAM HS2 200mm |
| Cockpit | |
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar |
|
Handlebars |
Santa Cruz 35 Carbon Bar, 800mm |
|
Headset |
Cane Creek 40 IS Integrated Headset |
|
Saddle |
WTB Silverado Medium, Ti |
|
Seatpost |
OneUp V2 Dropper Post, 31.6 |
|
Stem |
Burgtec Enduro MK3, 42mm |
| Wheels | |
|
Front Rim |
Reserve 30|HD 29" |
|
Front Hub |
Industry Nine 1/1, 15x110, Torque Cap, 6-Bolt, 28h -OR- DT Swiss 350, 15x110, 6-Bolt, 28h |
|
Front Tire |
Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO |
|
Rear Rim |
Reserve 30|HD 27.5" |
|
Rear Hub |
Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h -OR- DT Swiss 350, 12x148, 6-Bolt, 28h |
|
Rear Tire |
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+ |
| Ebike | |
|
Battery |
FAZUA 430 Wh Integrated Battery |
|
Drive Unit |
FAZUA RIDE60 |
|
Battery Charger |
FAZUA Charger |
| Specs | |
|
Bottom Bracket Shell |
Fazua DU w/ E-TOR spindle |
|
Rear Brake Mount |
PM 200mm |
|
Shock Length |
210mm |
|
Fork Axle to Crown |
571mm |
|
Fork Offset |
44mm |
|
Front Derailleur Mount |
No |
|
Headset |
IS 41 / IS52 |
|
Max Chainring Size |
36t |
|
Max Rotor Size |
220mm |
|
Max Tire Clearance May vary according to tire and rim model |
2.6" |
|
Rear Spacing |
148mm |
|
Shock Bushing Size Front |
30x8 |
|
Shock Bushing Size Rear |
30x8 |
|
Shock Stroke |
55mm |
|
UDH Compatible |
Yes |
