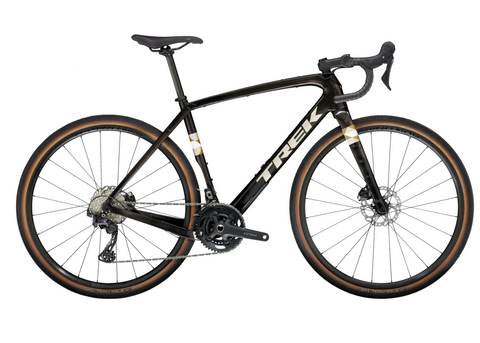

2024 Trek Checkpoint SL 5

  • Sale
  • Regular price $4,799.99

The Checkpoint SL 5 is a carbon gravel bike made for epic adventures. It's built with lightweight OCLV Carbon, a 2x12 Shimano GRX drivetrain, terrain-smoothing damped IsoSpeed, nimble yet stable progressive geometry, internal storage and loads of mounts. All of that adds up to a rad gravel bike capable of crushing the longest, roughest rides and the most ambitious bikepacking trips.

It's right for you if...

Chamois or cut-off shorts, bikepacking trip or brutal day of gravel racing – you're going to ride far and have a great time. You want a bike that's both fast and comfortable, and you want endless options for loading up gear and heading to gravel races and on everyday adventures.

The tech you get

A 500 Series OCLV Carbon frame with damped rear IsoSpeed and carbon armour, progressive geometry that's stable at speed and efficient when you're grinding up a climb, internal frame storage, hidden cables that won't interfere with bags and integrated frame, fork, rack and mudguard mounts. Plus, a carbon fork, a 2x12 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel and Paradigm SL wheels. You can even run a dropper post to get low on long descents.

The final word

Light, fast, comfortable. The Checkpoint SL 5 gives you the unmatched ride quality of an OCLV Carbon frame with IsoSpeed and gravel-specific geometry, plus internal storage and a drivetrain built for rough terrain.

Why you'll love it

  1. It's equipped with rugged, gravel-focused 2x12 Shimano GRX drivetrain that's made for tackling the roads less travelled
  2. Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions
  3. Fork mounts, frame mounts, and rack and mudguard mounts allow you to carry all the gear you need for day trips and bikepacking adventures
  4. A sleek internal storage compartment gives you a versatile spot to stow tools and gear
  5. The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around

Colour Options:

- Deep Smoke

- Matte Pennyflake

*Please note – spec applies to all sizes unless listed separately


Frame 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle
Fork Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Weight 56 - 9.65 kg / 21.28 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Shifter Shimano GRX RX610, 12-speed
Front derailleur Shimano GRX RX820, braze-on, down swing
Rear derailleur Shimano GRX RX820, 36T max cog
*Crank Size: 49
Shimano GRX RX610, 46/30, 165 mm length
Size: 52
Shimano GRX RX610, 46/30, 170 mm length
Size: 54, 56
Shimano GRX RX610, 46/30, 172.5 mm length
Size: 58, 61
Shimano GRX RX610, 46/30, 175 mm length
Bottom bracket Praxis, T47 threaded, internal bearing
Cassette Shimano 105 7100, 11-36, 12-speed
Chain Shimano SLX M7100, 12-speed
Max. chainring size 1x: 46T, 2x: 50/37

Hub front Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front Bontrager Switch thru axle, removable lever
Hub rear Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Rim Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager Aeolus XXX rim strip
Max tyre size 700x45 mm / 650x2.10"

*Saddle Size: 49, 52
Bontrager Verse Comp, steel rails, 155 mm width
Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145 mm width
Seatpost Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar Size: 49
Bontrager Elite Gravel, 38 cm width
Size: 52
Bontrager Elite Gravel, 40 cm width
Size: 54, 56
Bontrager Elite Gravel, 42 cm width
Size: 58, 61
Bontrager Elite Gravel, 44 cm width
Handlebar tape Bontrager Supertack Perf tape
*Stem Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor Shimano RT70, CentreLock, 160 mm
Rotor size Max brake rotor sizes: 160 mm front and rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
