It's right for you if...
You’re looking for a high-end carbon e-road bike that's super light, super discreet and super quiet. Versatility is important, and you want the ability to roll on everything from smooth tarmac to rough gravel. You also want the advantage of a quick and precise 105 Di2 wireless electronic drivetrain.
The tech you get

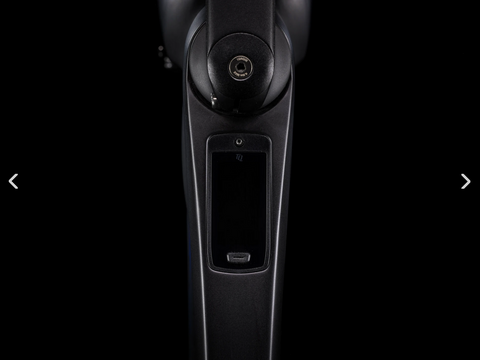

A supremely light 800 Series OCLV Carbon frame with rear IsoSpeed. A powerful 50 Nm TQ harmonic pin ring motor that assists up to 20 mph (25 km/h in Europe), a 360 Wh integrated battery, an integrated smart LED display and discreet top-mounted controls for toggling through assist modes. Aeolus Pro 37 OCLV Carbon wheels, Shimano 105 2x12 Di2 wireless electronic drivetrain, carbon cranks, a vibration-absorbing Bontrager Pro Iso-Core handlebar and a RCS Pro stem that fully integrates your cables for a sleek lookThe final word
A lightweight Domane+ carbon frame and discreet electric drive system give you the added boost you want without sacrificing sleek looks and impressive performance. Plus, wireless electronic Shimano 105 Di2 delivers crisp, fast shifts.
Why you'll love it
- The TQ harmonic pin ring motor is impressively discreet, compact, light, whisper-quiet and offers a powerful assist up to 20 mph (25km/h in Europe)
- Aeolus Pro 37 OCLV Carbon wheels keep things light and rolling fast
- Stable endurance geometry partners with road-smoothing rear IsoSpeed that absorbs bumps in the road for a smoother, more comfortable ride
- On long rides, you can add on a Range Extender that fits neatly in the bottle cage and gives you the power you need to go the extra distance
- It comes equipped with a 2x Shimano drivetrain and fast 32 mm tyres for the road, but can fit up to 40 mm tyres when you want more off-road versatility
*Please note – spec applies to all sizes unless listed separately
Available Sizes: 50cm & 56cm
Frame | 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, mudguard mounts, 142x12 mm thru axle |
---|---|
Frame fit | Endurance |
Weight | 56 - 12.40 kg / 27.34 lbs (with TLR sealant, no tubes) |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
*Shifter |
Size: 50, 52, 54, 56, 58, 60, 62 Shimano 105 R7170, 12-speed |
---|---|
Size: 50, 52, 54, 56, 58, 60, 62 Shimano 105 R7170 Di2, 12-speed |
|
Front derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
Rear derailleur | Shimano 105 R7150 Di2, 36T max cog |
*Crank |
Size: 50, 52 Praxis Carbon, 170 mm length |
Size: 54, 56 Praxis Carbon, 172.5 mm length |
|
Size: 58, 60, 62 Praxis Carbon, 175 mm length |
|

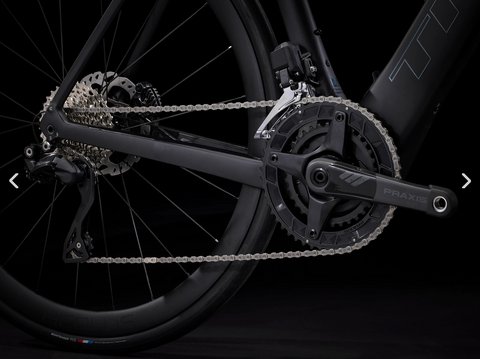

Chainring | Praxis, 50/34T, 12-speed |
Cassette | Shimano 105 7101, 11-34, 12-speed |
Chain | Shimano SLX M7100, 12-speed |
Max. chainring size | 1x: 46T, 2x: 52/36 |
Wheel front | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12 mm thru axle |
---|---|
Wheel rear | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless-Ready, 37 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle |
Skewer front | Bontrager Switch thru-axle, removable lever |
Skewer rear | Bontrager Switch thru-axle, removable lever |
Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 mm |
Rim strip | Bontrager TLR |
Max tyre size | 40mm without mudguards, 35mm with mudguards |
*Saddle |
Size: 50, 52 Bontrager Verse Short Elite, hollow stainless steel rails, 155 mm width |
---|---|
Size: 54, 56, 58, 60, 62 Verse Short Elite, hollow stainless steel rails, 145 mm width |
|
*Seatpost |
Size: 50, 52, 54, 56 KVF aero carbon seat post, 20 mm offset, 280 mm length |
Size: 58, 60, 62 KVF aero carbon seat post, 20 mm offset, 320 mm length |
|
*Handlebar |
Size: 50, 52 Bontrager Pro IsoCore VR-SF, 40cm |
Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm |
|
Size: 58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm |
|
Handlebar tape | Bontrager Supertack Perf tape |
*Stem |
Size: 50 Trek RCS Pro, -7-degree, 80 mm length |
Size: 52, 54 Trek RCS Pro, -7-degree, 90 mm length |
|
Size: 56, 58 Trek RCS Pro, -7-degree, 100 mm length |
|
Size: 60, 62 Trek RCS Pro, -7-degree, 110 mm length |
|
Brake | Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin |
Brake rotor | Shimano RT70, CentreLock, 160 mm |
Rotor size | Max brake rotor sizes: 180mm front, 160mm rear |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
