It's right for you if...
You're looking for the real advantage of a bike that can soar on group rides, ride fast on long race days, and keep going when the road turns to gravel. You want the most advanced endurance road bike frame we offer, with the added benefit of a wireless electronic Di2 drivetrain for fast, reliable shifting in any conditions.
The tech you get
An ultra-light and refined 800 Series OCLV Carbon frame and fork with rear IsoSpeed, integrated internal storage and top tube mounts. It's equipped with a wireless Shimano 2x12 Ultegra Di2 electronic drivetrain, powerful flat-mount disc brakes, Aeolus Pro 37 carbon wheels and a Bontrager Pro IsoCore handlebar that reduces vibrations from the road by 20% over a standard carbon bar.
The final word
Our highest-end Domane carbon frame, with the precision shifting that comes only from wireless Shimano Di2. You're getting tech that provides a real advantage in comfort, reliability and speed during all-day adventures, competitive group rides or long races.
Why you'll love it
- The sleek all-new 800 Series OCLV Carbon frame saves weight and gives you more free speed thanks to updated Kammtail tube shapes
- The Wireless Ultegra Di2 delivers ever faster, smoother and more responsive shifts than ever
- The road-smoothing rear IsoSpeed absorbs fatiguing bumps in the road to keep you comfortable through the longest miles and hardest race days

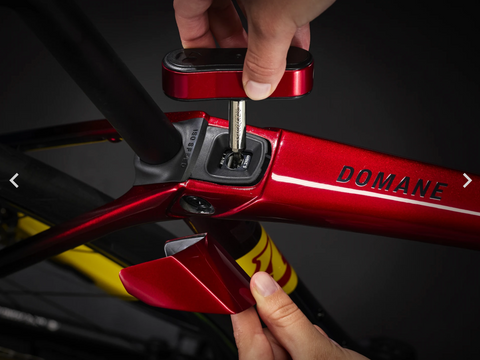

- A sleek internal storage compartment gives you a versatile spot to stow tools and gear, while the top tube mounts let you cleanly bolt on a bag for all-day adventures
Colour Options:
- Deep Smoke
- Metallic Red Smoke to Blue Smoke Fade
- Crystal White
- Metallic Red Smoke to Red Carbon Smoke
- Juniper
- Black
- Axinite Flip/Black
*Please note – spec applies to all sizes unless listed separately
Frame | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle |
---|---|
Frame with Fork | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle |
Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle |
Frame fit | Endurance |
Weight | 56 - 7.89 kg/17.41 lb |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
Shifter | Shimano Ultegra R8170 Di2, 12-speed |
---|---|
Front derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
Rear derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
*Crank |
Size: 47 Shimano Ultegra R8100, 50/34, 165 mm length |
Size: 47 Shimano Ultegra R8100, 50/34, 165mm |
|
Size: 50, 52 Shimano Ultegra R8100, 50/34, 170 mm length |
|
Size: 54, 56 Shimano Ultegra R8100, 50/34, 172.5 mm length |
|
Size: 58, 60, 62 Shimano Ultegra R8100, 50/34, 175 mm length |
|
Bottom bracket | Praxis, T47 threaded, internal bearing |
*Cassette |
Size: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8101, 11-34, 12-speed |
Size: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8100, 11-34, 12 speed |
|
Chain | Shimano Ultegra/XT M8100, 12-speed |
Max. chainring size | 1x: 48T, 2x: 52/36 |
*Saddle |
Size: 47, 50, 52 Verse Short Elite, hollow magnesium rails, 155 mm width |
---|---|
Size: 47, 50, 52 Bontrager Verse Short Elite, hollow stainless steel rails, 155 mm width |
|
Size: 54, 56, 58, 60, 62 Verse Short Elite, hollow magnesium rails, 145 mm width |
|
Size: 54, 56, 58, 60, 62 Verse Short Elite, hollow stainless steel rails, 145 mm width |
|
*Seatpost |
Size: 47, 50, 52, 54, 56 Domane carbon seat post, KVF shaping, 20 mm offset, 280 mm length |
Size: 58, 60, 62 Domane carbon seat post, KVF shaping, 20 mm offset, 320 mm length |
|
*Handlebar |
Size: 47 Bontrager Pro IsoCore VR-SF, 38cm |
Size: 50, 52 Bontrager Pro IsoCore VR-SF, 40cm |
|
Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm |
|
Size: 58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm |
|
Handlebar tape | Bontrager Supertack Perf tape |
*Stem |
Size: 47 Trek RCS Pro, -7-degree, 70 mm length |
Size: 50 Trek RCS Pro, -7-degree, 80 mm length |
|
Size: 52, 54 Trek RCS Pro, -7-degree, 90 mm length |
|
Size: 56, 58 Trek RCS Pro, -7-degree, 100 mm length |
|
Size: 60, 62 Trek RCS Pro, -7-degree, 110 mm length |
|
Brake | Shimano Ultegra hydraulic disc |
Brake rotor | Shimano CL800, CentreLock, 160 mm |
Rotor size | Max brake rotor sizes: 160mm front & rear |
Battery | Shimano BT-DN300 |
---|---|
Charger | Charging cable included |
Bag | Bontrager BITS Internal Frame Storage Bag |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
