2024 Trek Fuel EX 9.8 XT (P1 Now)

  • Sale
  • Regular price $11,099.99

The Fuel EX 9.8 XT is a playful and capable trail bike that blends together cherry-picked components with a light full carbon frame for the best balance of price and performance. Decked out with 150 mm of front and 140 mm rear FOX Performance suspension package, you'll be ready to float through the chunder, while carbon wheels keep tracking precise through rowdy terrain. A Shimano XT drivetrain tops things off for precise shifting for power on descents and relief on long climbs.

It's right for you if...

You're chasing long flowy and technical descents, and want to pedal back to the top for more, lap after lap. You want the vibration-damping benefits of a carbon frame and carbon wheels, plus upgraded suspension that smooths out the rough and rowdy.

The tech you get

A light and stiff carbon frame with a full FOX Performance suspension package that smooths out rowdy rock gardens and root lattices. Plus, carbon wheels that keep your set-up light and tracking precise, and the clean shifting and brake modulation of a Shimano XT drivetrain. Finally, you'll find adjustable geometry and in-frame storage for keeping your set-up dialled just for you.

The final word

The Fuel EX 9.8 is the culmination of years of trail riding and progression, with longer front end geometry for tackling steeper and hairier descents, and a steeper seat tube to keep you perched on climbs. It's equipped with the cherry-picked components you want, like upgraded suspension, carbon wheels and a Shimano XT drivetrain.

Why you'll love it

  1. The Fuel EX Gen 6 gives you 140/150 mm of travel with extra adjustability features and more stable handling, plus a more robust frame with internal storage
  2. We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5″ wheels, S frames get to choose between 27.5″ or 29″, and sizes M and up get 29″ wheels
  3. It's ready to rip with lightweight carbon wheels that easily tackle rough-terrain and hold their line when things get rowdy
  4. In-frame storage makes it easy to bring along all your essentials, while keeping your set-up streamlined and sleek

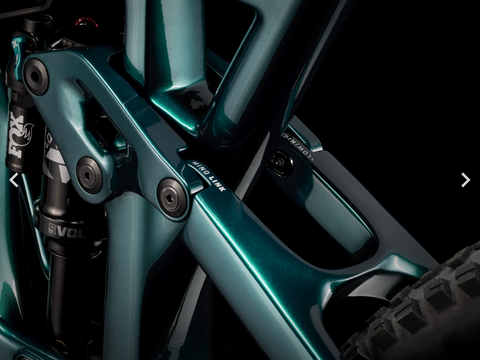

  5. With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations

Colour Options:

- Deep Smoke

- Dark Aquatic

- Lava

*Please note – spec applies to all sizes unless listed separately

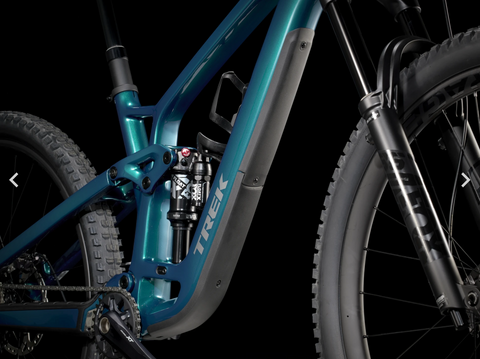

Frame OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

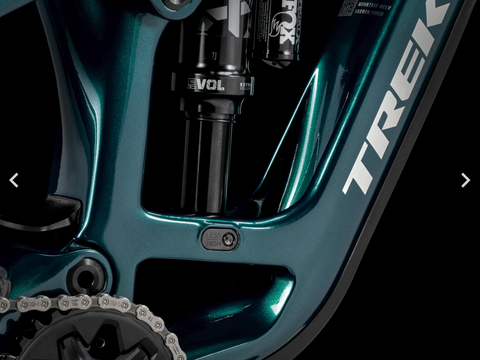

Shock Fox Performance Float X, 2-position damper, 185 mm x 55 mm

Wheel front Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle

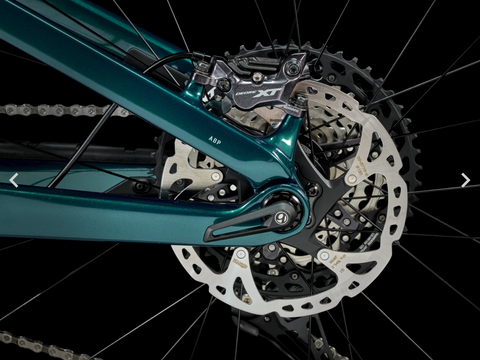

Wheel rear Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
*Tyre Size: XS , S

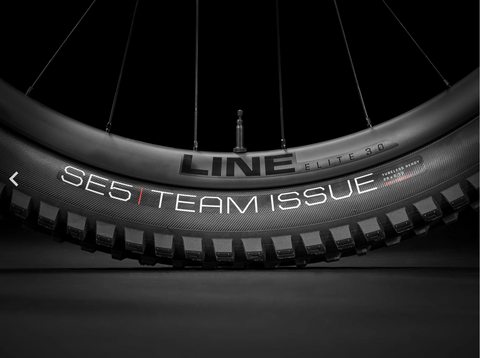

Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 27.5 x 2.50"
Size: S , M , ML , L , XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50"
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR

Shifter Shimano XT M8100, 12-speed
Rear derailleur Shimano XT M8100, long cage
Crank Shimano XT M8120, 30T, 55 mm chain line, 170 mm length
Bottom bracket Shimano BB-MT501 BSA
Cassette Shimano XT M8100, 10-51, 12-speed
Chain Shimano Ultegra/XT M8100, 12-speed



Weight M - 14.30 kg / 31.53 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
