The Bike For The Modern Road Rider

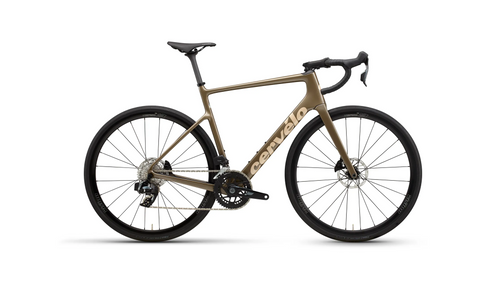

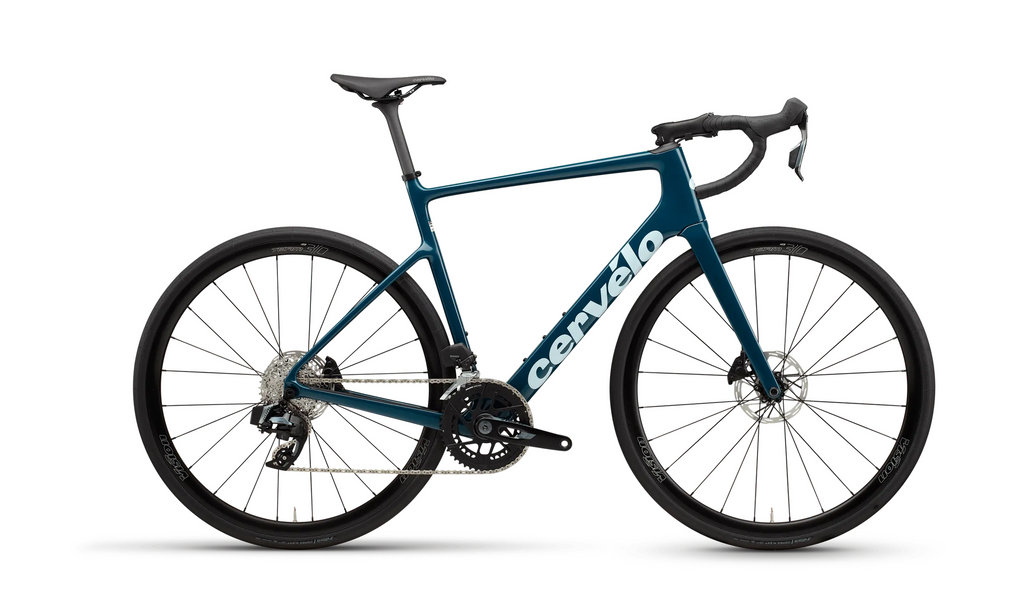

Caledonia is a high-performance road bike with endurance-oriented geometry that delivers everything you’d expect from a Cervélo. It’s designed for all-season riders, fondo racers, and those who’ve just been bitten by the cycling bug. Clean, aerodynamic lines, hidden cables, and a highly-tuned carbon fiber layup add up to a bike that’s fast enough for spirited group rides, comfortable enough for all-day efforts, and looks right at home at every coffee stop.
Internal Cables, Without The Hassle
Unlike the Caledonia-5's fully internal system, the Caledonia offers mechanic-friendly cable and hose routing that supports both fully-integrated setups (with ST31/32 and HB18) and our standard semi-external routing.
Ride-All-Day Geometry
With a 1013mm wheelbase, 415mm chainstays, and 72° head tube angle, the Caledonia delivers stable and predictable handling suitable for both casual riders and those hunting fondo and brevet glory. We also updated the trail figure to optimize the geometry for 32mm-wide tires.
Threaded Bottom Bracket
The T47a threaded bottom bracket simplifies service for home mechanics, and ensures long-term performance.
Room For Big Tires, Plus Fender Mounts
On a big ride, you’ll encounter roads that are…less than maintained. The Caledonia’s 36mm tire clearance allows you to mount up road-smoothing, comfortable rubber that makes a big difference when the odometer hits triple digits. And for the year-round, all-weather pedalers, Caledonia comes with fender mounts that make it easy to add full-coverage fenders.
|
Sizes: |
48cm, 51cm, 54cm, 56cm, 58cm, 61cm |
||
|
Weight: |
8.31 kgs |
||
|
Fork: |
Cervélo All-Carbon, Tapered Caledonia Fork |
||
|
Handlebar: |
|
||
|
Alternate Handlebar: |
Cervélo AB07 Alloy, 31.8mm clamp |
||
|
Handlebar Sizing: |
48cm - 38cm |
||
|
Stem: |
Cervélo ST36 Alloy |
||
|
Stem Sizing: |
Size 48 - 80mm |
||
|
Seatpost: |
Cervélo SP19 Carbon 27.2 |
||
|
Seatpost Sizing: |
Size 48 - 0mm |
||
|
Saddle: |
Cervélo Saddle |
||
|
Bottom Bracket: |
SRAM DUB, T47 BBright |
||
|
Headset: |
FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
||
|
Front Thru Axle: |
Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length |
||
|
Rear Thru Axle: |
Cervélo Aero Thru Axle Rear, M12x1.75mm, 170.5mm length |
||
|
Front Wheel: |
Vision Team i23 Disc, 23mm IW, direct pull, 12x100mm, centerlock, tubeless compatible |
||
|
Rear Wheel: |
Vision Team i23 Disc, 23mm IW, direct pull, 12x142mm, XDR freehub, centerlock, tubeless compatible |
||
|
Tyres: |
Vittoria Corsa N.EXT TLR G2.0 700x32c |
||
|
Shifters/Brake Levers: |
SRAM Rival AXS E1 |
||
|
Crankset: |
SRAM Rival AXS E1, 48/35T, DUB |
||
|
Power Meter: |
|
||
|
Crank Sizing: |
Size 48 - 165mm |
||
|
Chain: |
SRAM Rival E1 |
||
|
Cassette: |
SRAM Rival D1, 10-36T, 12-Speed |
||
|
Front Derailleur: |
SRAM Rival AXS E1 |
||
|
Rear Derailleur: |
SRAM Rival AXS E1 |
||
|
Brake Rotors: |
SRAM Paceline Centerlock |
||
|
Accessories: |
- Cervélo Removeable Fender Mounts |
||
|
Colour: |
Mocha or Nightshift |
