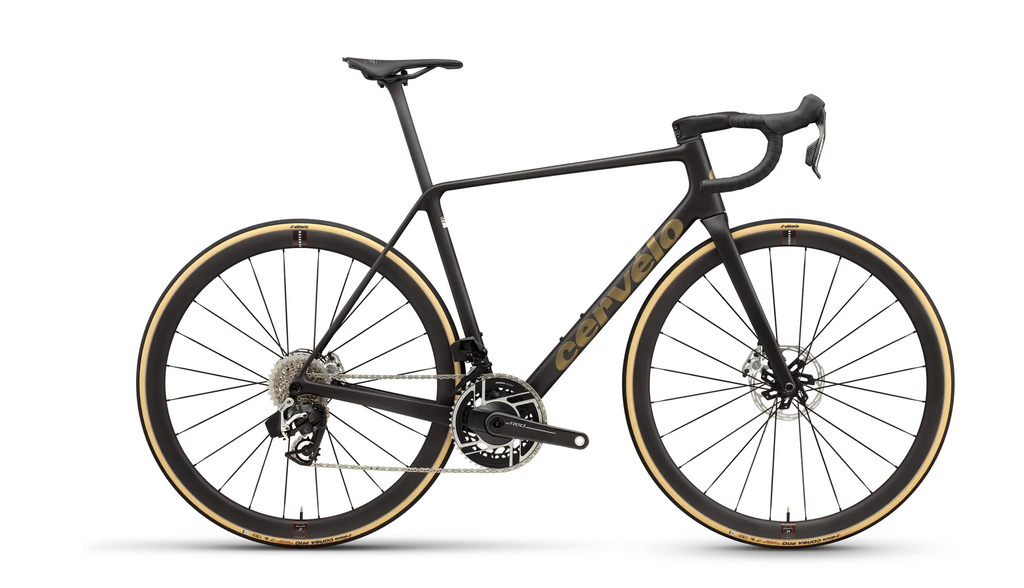

The R5 is legendary. From the limits-shattering R5CA to Wout van Aert’s winning day on Mont Ventoux, R5 has been part of Cervelo’s story for over two decades. This all-new R5 is an incredibly light (5.97kg in RED and Dura-Ace builds) road bike that’s also stiff enough to compete at the highest levels of professional cycling—as Pauline Ferrand-Prevot proved when she rode it to victory at this summer’s Tour de France Femmes.
It’s easy enough to make a light bike, but to make a light bike that’s stiff enough to accelerate quickly and transfer power from the sport’s biggest motors? That’s another challenge entirely. R5 is the bike for big days in the high mountains of the Tour de France, and the punishingly steep climbs of the Vuelta a Espana. Bikes built for the mountains must not only accelerate rapidly and climb exceptionally, but descend confidently and predictably. While the UCI mandates a minimum weight of 6.8kg, those of us in the ‘mere mortal’ category will benefit from having the lightest road bike on the market.
Just 5.97kg In Size 56
The new R5 in a size 56 builds up to just 5.97kg, a full 900 grams under the UCI’s minimum weight limit. The frame is just 651 grams (size 56), and the fork is 298 grams. In addition to the 100g reduction in frame/fork weight, we’ve turned our attention to every single component on the bike, for a total weight reduction of 326g from all Cervelo components.
The new R5’s one-piece bar and stem were responsible for a significant part of the weight reduction of the bike, and we know that a perfect fit is a critical part of getting the most out of your new bike. We made 15 different size combinations, and when you buy an R5, your Authorized Cervélo Retailer will help you get the right size, for no additional cost.
|
Sizes: |
48cm, 51cm, 54cm, 56cm, 58cm, 61cm |
||
|
Weight: |
|
||
|
Fork: |
Cervélo All-Carbon, Tapered R5 Fork |
||
|
1-Piece Handlebar/Stem: |
|
||
|
Handlebar Sizing: |
Size 48 - 36cm |
||
|
Stem Sizing: |
Size 48 - 80mm |
||
|
Seatpost: |
Cervélo SP33 Carbon |
||
|
Seatpost Sizing: |
Size 48 - 0mm |
||
|
Saddle: |
Prologo Nago R4 PAS Nack Lightweight |
||
|
Bottom Bracket: |
SRAM DUB, BBright |
||
|
Headset: |
FSA SL IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
||
|
Front Thru Axle: |
Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length |
||
|
Rear Thru Axle: |
Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length |
||
|
Front Wheel: |
Reserve 34TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible |
||
|
Rear Wheel: |
Reserve 37TA, DT Swiss 240, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible |
||
|
Tyres: |
Vittoria Corsa Pro Speed TLR G2.0 700x26c |
||
|
Shifters/Brake Levers: |
SRAM Force AXS E1 |
||
|
Crankset: |
SRAM Force AXS E1, 48/35T, DUB, with power meter |
||
|
Power Meter: |
See above |
||
|
Crank Sizing: |
Size 48 - 165mm |
||
|
Chain: |
SRAM Force E1 |
||
|
Cassette: |
SRAM Force E1, 10-33T, 12-Speed |
||
|
Front Derailleur: |
SRAM Force AXS E1 |
||
|
Rear Derailleur: |
SRAM Force AXS E1 |
||
|
Brake Rotors: |
SRAM Paceline Centerlock |
||
|
Accessories: |
- Cervélo Front Computer/Accessory Mount 887 |
||
|
Colour: |
Five Black/Bronze |
