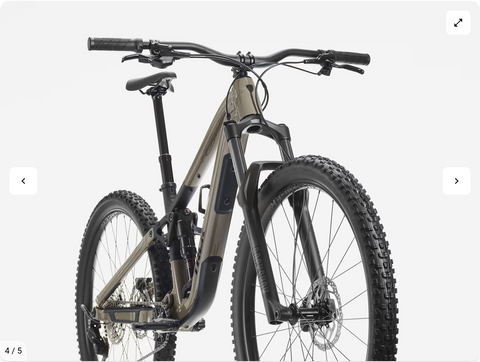

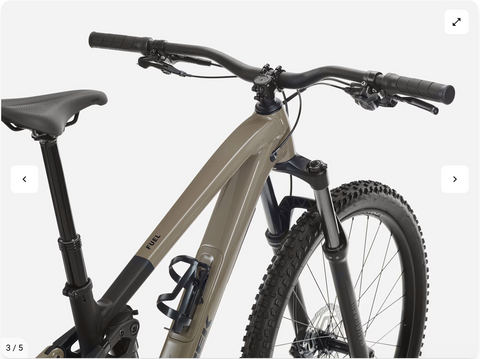

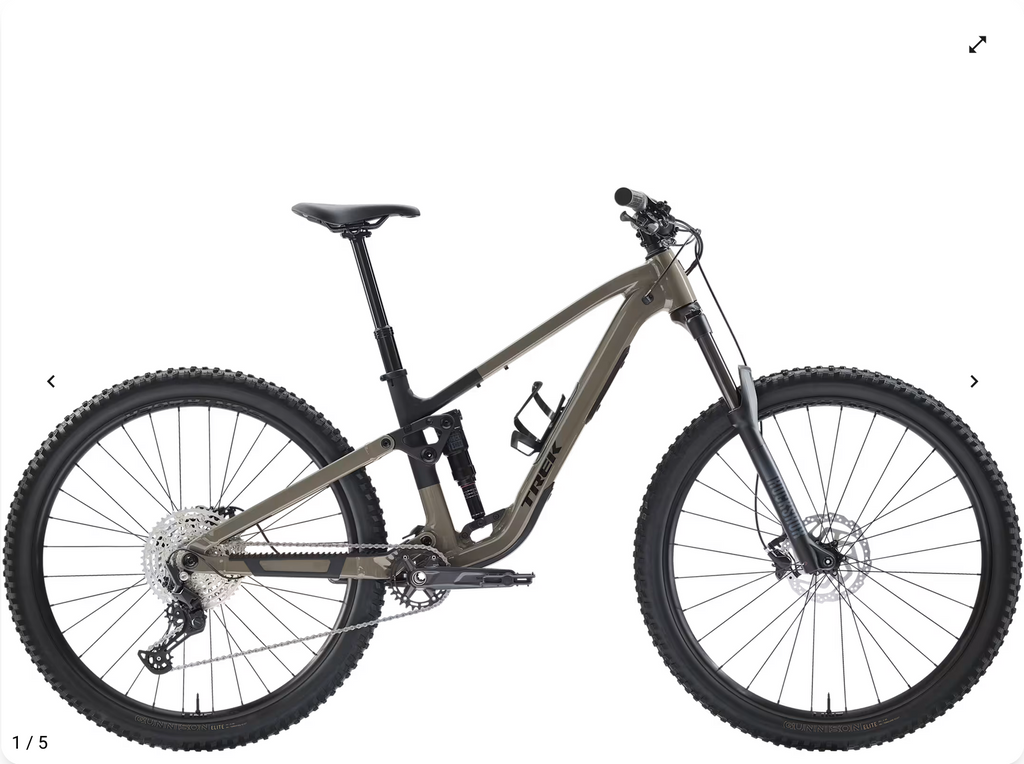

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and RockShox Deluxe Select suspension, tubeless-ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post, so you're ready for anything.
|
FRAMESET: |
|
|
Frame: |

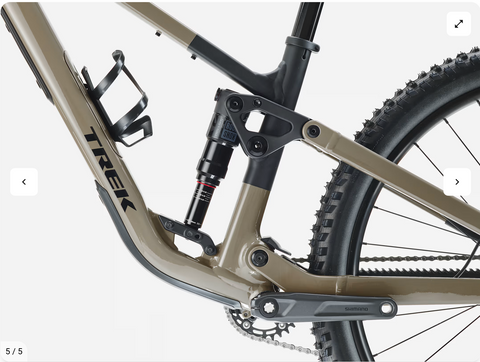

Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
|
Fork: |
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
|
Shock: |
RockShox Deluxe Select, 205mm x 60mm |
|
WHEELS: |
|
|
Hub front: |
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
|
Hub Rear: |
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
|
Skewer Rear: |
Bontrager Switch thru axle |
|
Rim: |
Size: S, M, L, XL Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
|
Size: S, M, L, XL Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
|
|
Tyre: |
Size: S, M, L, XL |
|
Size: S Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" |
|
|
Tyre Part: |
Bontrager TLR sealant, 180 ml/6 oz |
|
Rim Strip: |
Bontrager TLR |
|
Max. Tyre Size: |
Frame: 29x2.50", Fork: See manufacturer |
|
DRIVETRAIN: |
|
|
Shifter: |
Shimano Deore M6200 |
|
Rear Derailleur: |
Shimano Deore M6200, long cage |
|
Crank: |
Shimano MT520 Deore, 30T ring, 55mm chainline, 165mm length |
|
Bottom Bracket: |
Shimano BB-MT501 BSA |
|
Cassette: |
Shimano M6200, 10-51, 12-speed |
|
Chain: |
Shimano Deore M6100, 12-speed |
|
Pedal: |
|
|
Max. Chainring Size: |
See service manual |
|
COMPONENTS: |
|
|
Saddle: |
|
|
Seatpost: |
Size: S TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm |
|
Size: M, L, XL TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
|
|
Handlebar: |
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
|
Grips: |
Trek Line Comp, nylon lock-on |
|
Stem: |
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
|
Headset: |
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
|
Brake: |
Shimano hydraulic disc, MT201 lever, MT200 calliper |
|
Brake Rotor: |
Shimano hydraulic disc, MT201 lever, MT200 calliper |
|
Max. Rotor Size: |
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
|
WEIGHT: |
|
|
Weight: |
M - 16.88 kg / 37.22 lbs (with TLR sealant, no tubes) |
|
Weight Limit: |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs). |
*Please note – spec applies to all sizes unless listed separately
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
