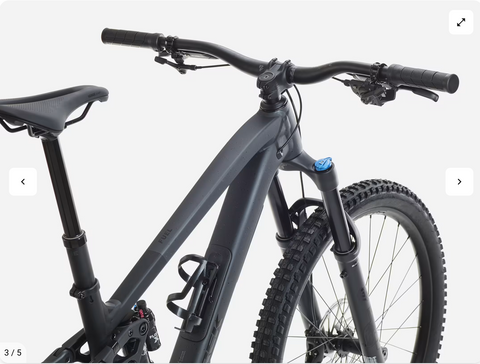

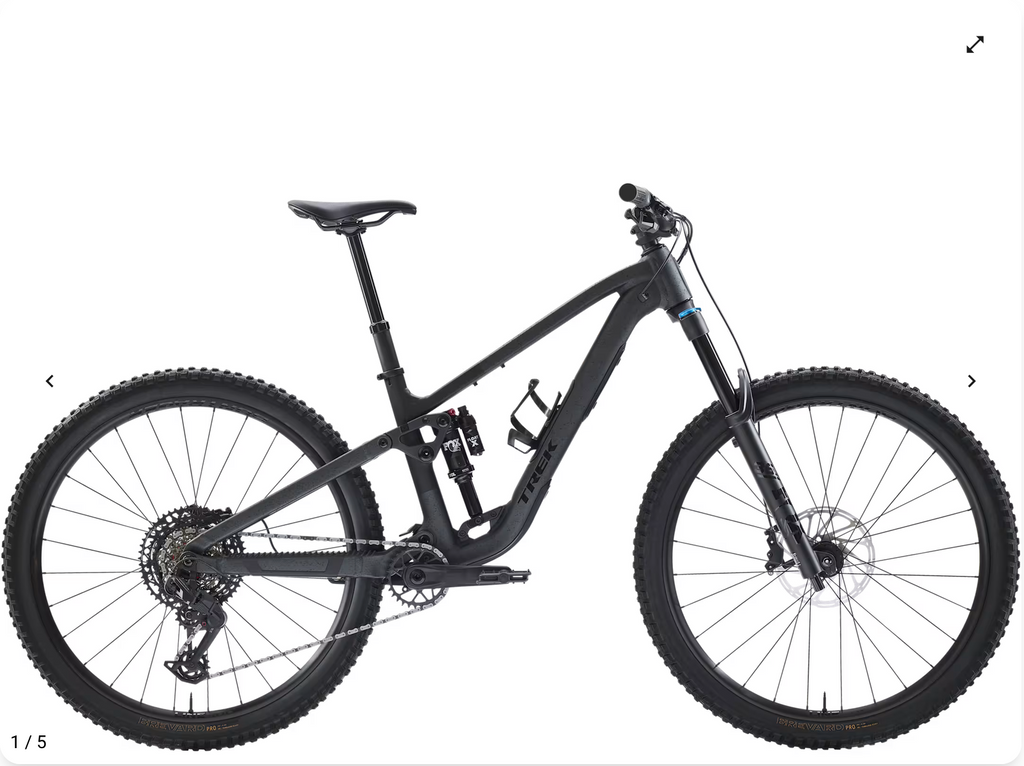

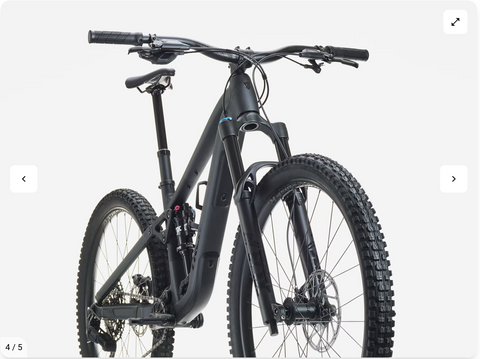

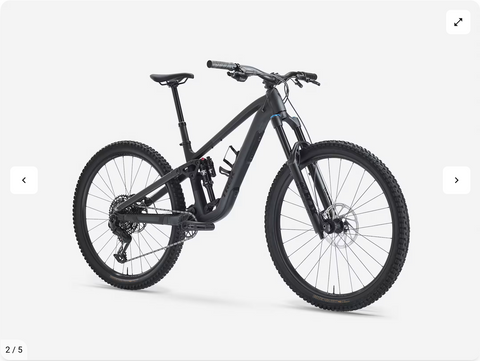

The Fuel EX 8 is a confident and versatile trail bike built to get after it. It comes ready to rip with an Alpha NEXT Platinum frame, Fox performance suspension package with 145 mm/150 mm travel (rear, front), alloy Bontrager Line wheels and a SRAM Eagle 70 transmission that keeps shifts smooth, even under load. It's topped off with 4-piston SRAM DB 8 hydraulic disc brakes to keep you stopping on a penny.
|
FRAMESET: |
|
|
Frame: |
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
|
Fork: |
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel |
|

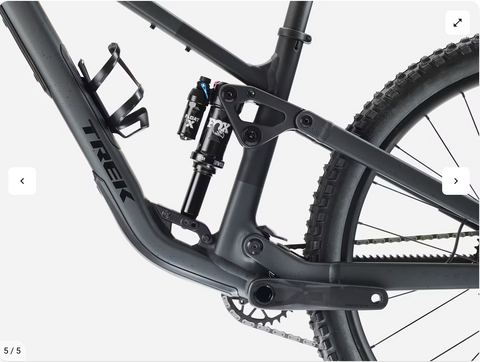

Shock: |
Size: S, M, L, XL Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
|
Size: S, M, L, XL Fox Float X, 205mm x 60mm |
|
|
WHEELS: |
|
|
Hub Front: |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|
Skewer Front: |
139x5mm bolt-on |
|
Hub Rear: |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle |
|
Skewer Rear: |
Bontrager Switch Thru Axle |
|
Rim: |
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
|
Rim Strip: |
Bontrager TLR |
|
Spokes: |
|
|
Tyre: |
Size: S Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" |
|
Size: S, M, L, XL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
|
|
Tyre Part: |
Bontrager TLR sealant, 180 ml/6 oz |
|
Max. Tyre Size: |
Frame: 29x2.50", Fork: See manufacturer |
|
DRIVETRAIN: |
|
|
Shifter: |
SRAM Eagle 70, 12-speed |
|
Front Derailleur: |
|
|
Rear Derailleur: |
SRAM Eagle 70, T-Type |
|
Crank: |
SRAM Eagle 70, DUB, 30T, T-Type, 55mm chainline, 165mm length |
|
Bottom Bracket: |
SRAM DUB MTB Wide, 73 m, BSA threaded |
|
Cassette: |
SRAM Eagle XS-1270, T-Type,10-52, 12-speed |
|
Chain: |
SRAM Eagle 70, T-Type, 12-speed |
|
Pedal: |
|
|
Saddle: |
|
|
Max. Chainring Size: |
See service manual |
|
Seatpost: |
Size: S |
|
Size: M |
|
|
Size: L, XL |
|
|
Handlebar: |
Race Face Aeffect, alloy, 35 mm, 40 mm rise, 800 mm width |
|
Grips: |
Trek Line Comp, nylon lock-on |
|
Stem: |
|
|
Headset: |
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
|
Brake: |
SRAM DB 8 4-piston hydraulic disc |
|
Brake Rotor: |
Size: S, M, L, XL SRAM CenterLine 2.0, 6-bolt, 200 mm |
|
Size: S, M, L, XL SRAM CenterLine 2.0, 6-bolt, 180 mm |
|
|
Max. Rotor Size: |
Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
|
ACCESSORIES: |
|
|
Bag: |
Bontrager BITS Internal Frame Storage Bag |
|
WEIGHT: |
|
|
Weight: |
M - 16.58 kg / 36.56 lbs (with TLR sealant, no tubes) |
|
Weight Limit: |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs). |
*Please note – spec applies to all sizes unless listed separately
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may
