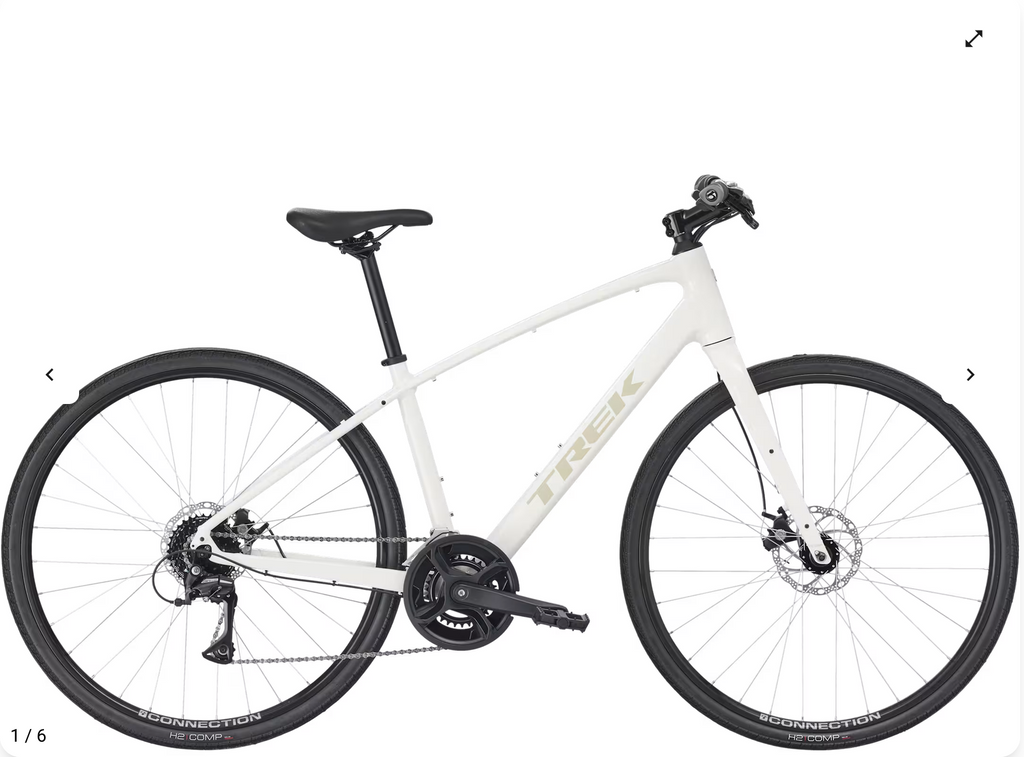

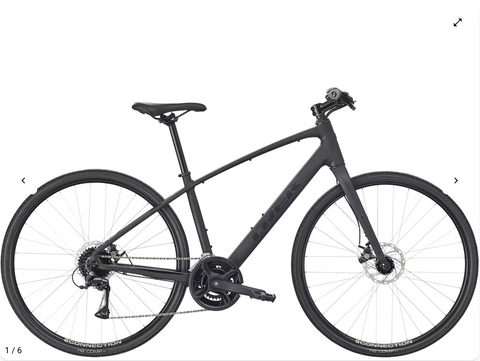

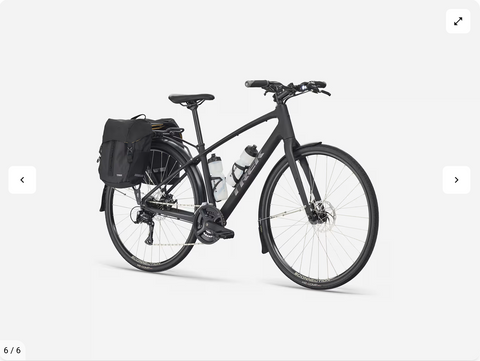

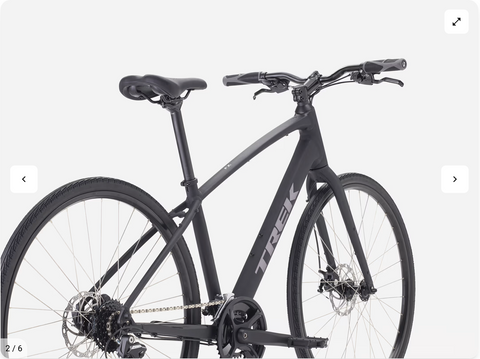

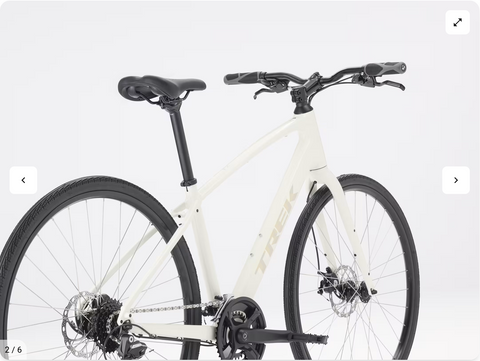

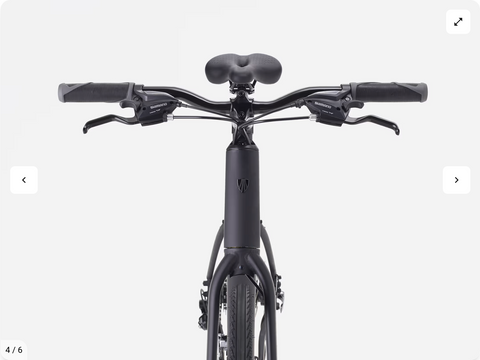

FX 1 is a versatile and sleek hybrid bike built for everyday rides, fitness, and commuting. Its lightweight frame and 8-speed Shimano drivetrain offer a wide, easy-to-use gear range, while mechanical disc brakes provide reliable stopping power. With mounts for racks and accessories, it’s easy to set it up for whatever your day looks like.
|
FRAMESET: |
|
|
Frame: |
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|
Fork: |
FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR |
|
WHEELS: |
|
|
Hub Front: |
Formula DC-20, alloy, 6-bolt, 100x5 mm |
|
Skewer Front: |
139x5mm bolt-on |
|
Hub Rear: |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
|
Skewer Rear: |
152x5mm QR |
|
Rim: |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|
Spokes: |
14 g stainless steel, black |
|
Tyre: |
Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm |
|
Max. Tyre Size: |
700x40mm |
|

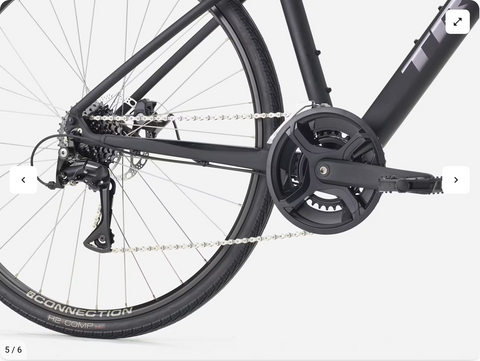

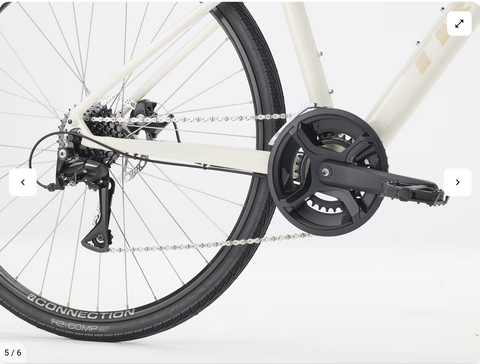

DRIVETRAIN: |
|
|
Shitfer: |
Size: XS, S, M, L, XL Shimano EF500, 8-speed |
|
Size: XS, S, M, L, XL Shimano EF500, 2-speed |
|
|
Front Derailleur: |
Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull |
|
Rear Derailleur: |
Shimano Acera M3020-8, 40T max cog |
|
Crank: |
Forged alloy, 46/30, 170 mm length |
|
Bottom Bracket: |
Sealed cartridge, 68 mm |
|
Cassette: |
Shimano 8-speed, 12-32T |
|
Chain: |
KMC Z8.3 |
|
Pedal: |
Wellgo nylon platform |
|
Max. Chainring Size: |
1x: 44T, 2x: 46/32 |
|
Seatpost: |
Size: XS, S, M Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
|
Size: L, XL Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length |
|
|

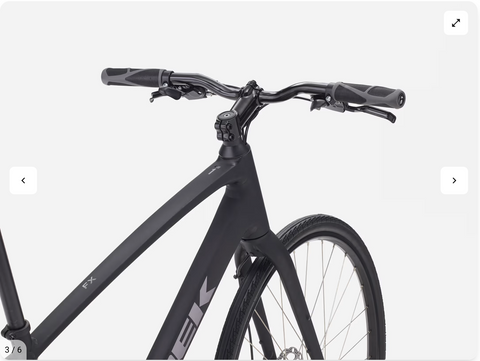

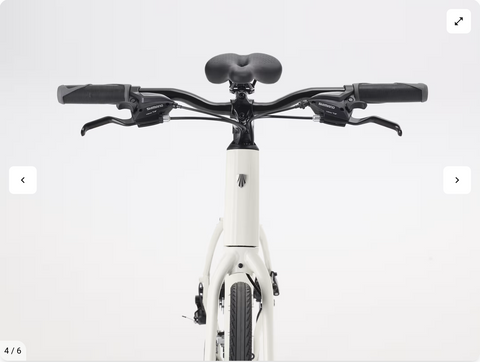

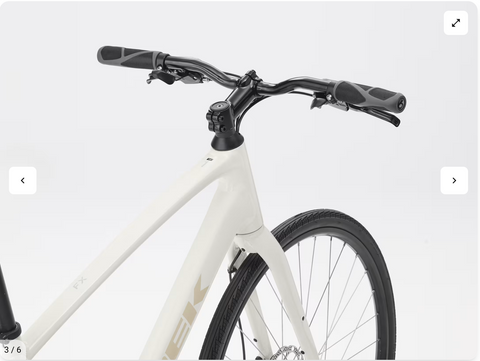

Handlebar: |
Size: XS, S, M, L Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |
|
Size: XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width |
|
|
Grips: |
Trek Ergonomic Comp, lock-on |
|
Stem: |
Size: XS, S, M |
|
Size: L, XL |
|
|
Brake: |
Tektro MD-U310 mechanical disc |
|
Brake Rotor: |
Tektro wave, 6-bolt, 160 mm |
|
Max. Rotor Size: |
Max brake rotor sizes: 160mm front & rear |
|
WEIGHT: |
|
|
Weight: |
M – 13.00 kg/28.67 lb |
|
Weight Limit: |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
*Please note – spec applies to all sizes unless listed separately
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
