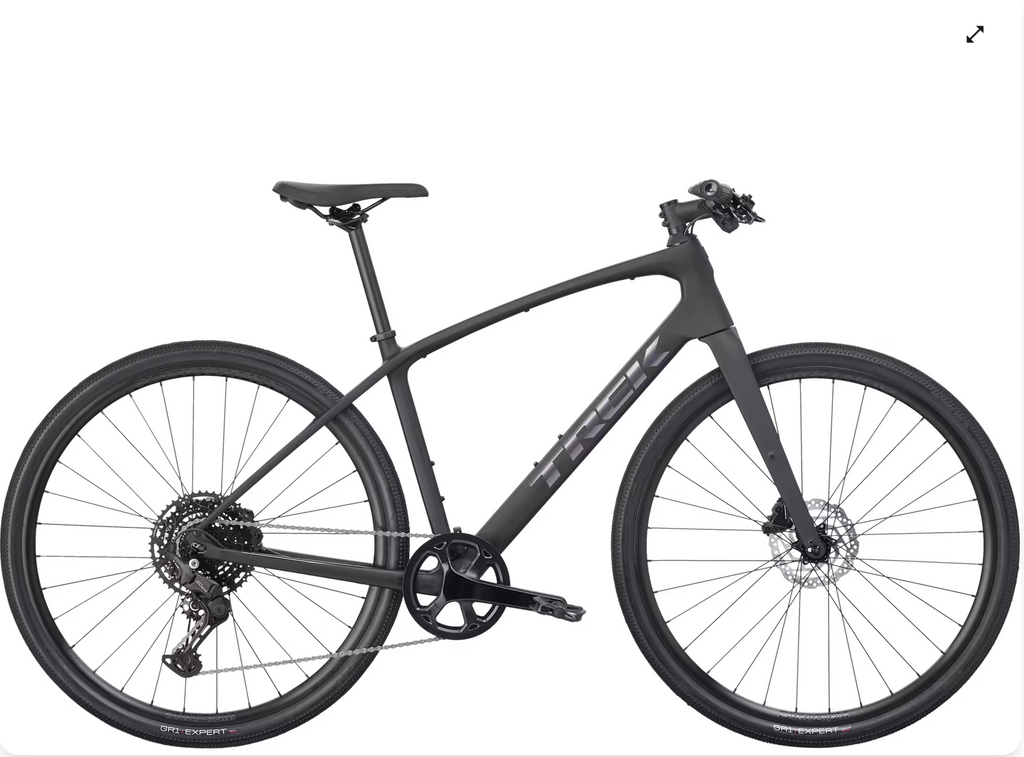

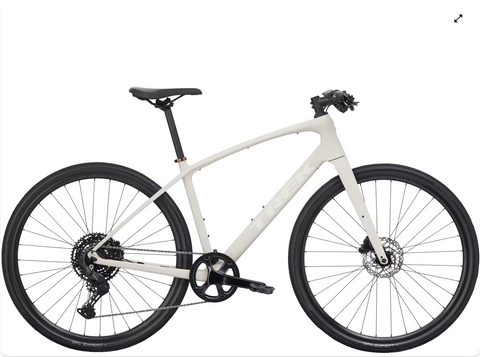

2027 Trek FX Sport SL 4

FRAMESET:

Frame:

400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 135x5 mm ThruSkew

Fork:

Carbon, hidden mudguard mounts, flat mount disc, 100x5 mm thru-skew

WEIGHT:

Weight:

M - 10.90 kg / 24.04 lbs

Weight Limit:

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).

DRIVETRAIN:

Shifter:

Shimano CUES U6000 w/optical gear display, 10-speed

Rear Derailleur:

Shimano CUES U6000 GS

Crank:

Prowheel alloy, 42T narrow-wide ring, 175 mm length

Cassette:

Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed

Chain:

KMC X Glide, 11-speed, gray

Pedal:

Bontrager City Pedals

Max. Chainring Size:

1x: 44T

WHEELS:

Hub Front:

Formula CL-51 alloy, 100x5 mm

Skewer Front:

135x5mm bolt-on

Hub Rear:

Formula CL-52 alloy, 135x5 mm

Skewer Rear:

169x5mm bolt-on

Rim:

Bontrager Paradigm, Tubeless-Ready, 32-hole, 21 mm width, Presta valve

Spokes:

14 g stainless steel, black

Tyre:

Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40 c

Max. Tyre Size:

700x42mm

COMPONENTS:

Saddle:

Size: XS, S, M, L, XL
Bontrager Commuter Comp

Size: XS, S, M, L, XL

Trek Verse Short Trail

Seatpost:

Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

Handlebar:

Size: XS, S

Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width

Size: M, L, XL

Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width

Grips:

Trek Ergonomic PRO, lock-on

Stem:

Size: XS

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length

Size: S, M

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

Size: L, XL

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

Brake:

Shimano hydraulic disc, MT201 lever, UR300 calliper

Brake Rotor:

Shimano RT10, CenterLock, 160 mm

Max. Rotor Size:

Max brake rotor sizes: 160mm front & rear
