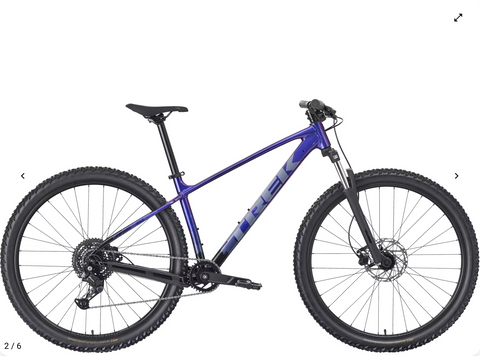

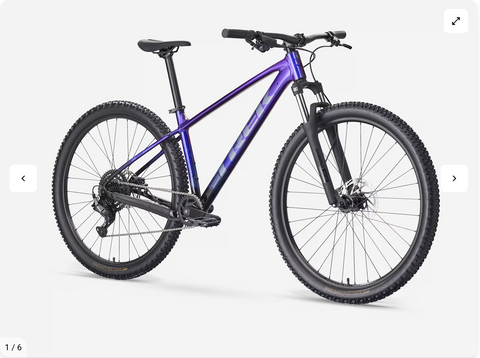

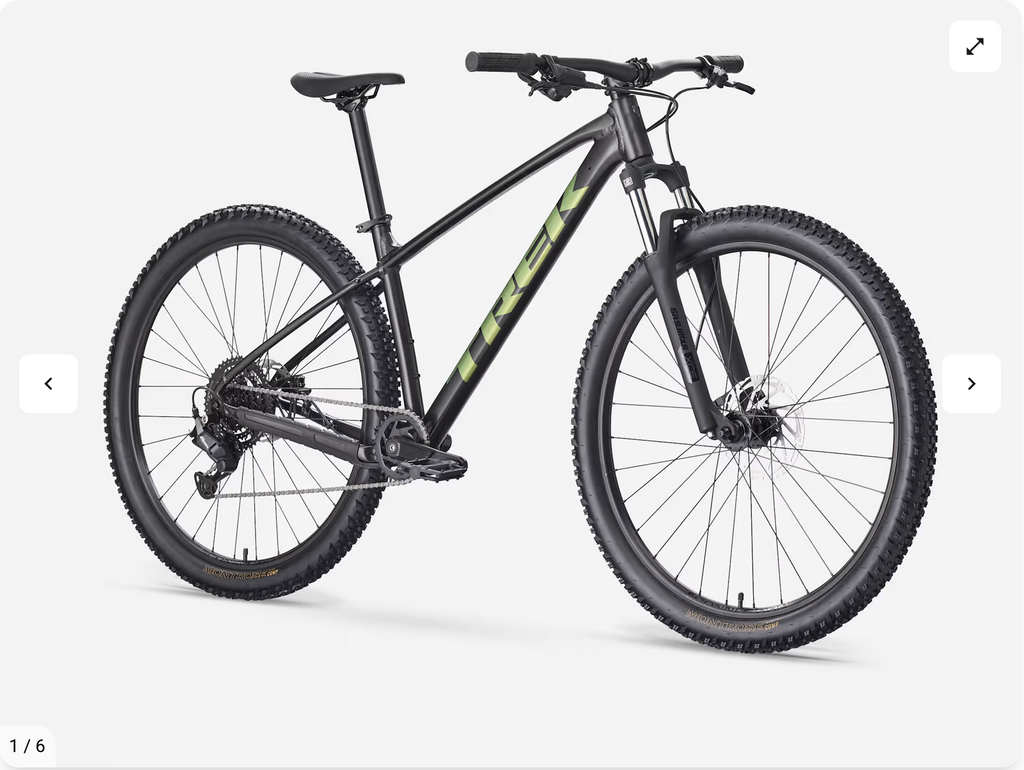

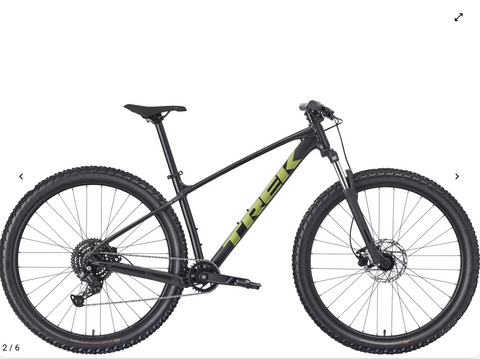

Marlin 4 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
|
FRAMESET: |
|
|

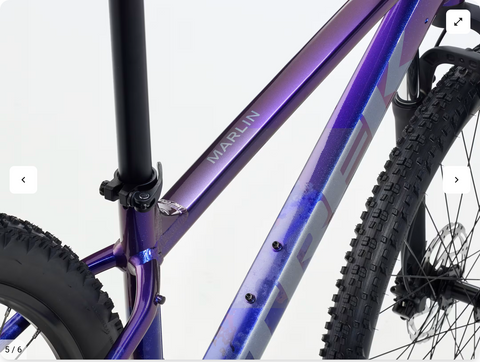

Frame: |

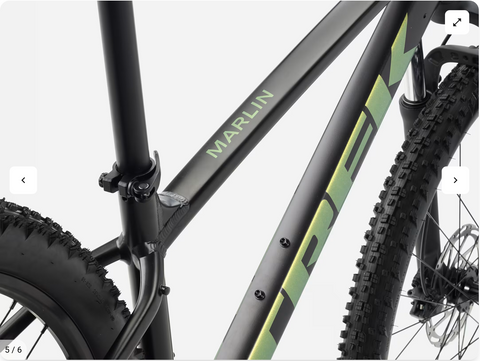

Size: XXS , XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
|
Fork: |
Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel |
|
Size: XS SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
|
|
Size: S SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
|
Size: M , ML , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
|
WHEELS: |
|
|
Hub Front: |
Formula DC-20, alloy, 6-bolt, 100x5 mm |
|
Skewer Front: |
116x5mm QR |
|
Hub Rear: |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
|
Skewer Rear |
173x5 mm QR |
|
Spokes: |
14 g stainless steel, black |
|
Rim: |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|
Tyre: |
Size: XXS Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35'' |
|
Size: XS , S Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40" |
|
|
Size: M , ML , L , XL , XXL Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40" |
|
|
Rim Strip: |
|
|
Max. Tyre Size: |
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
|

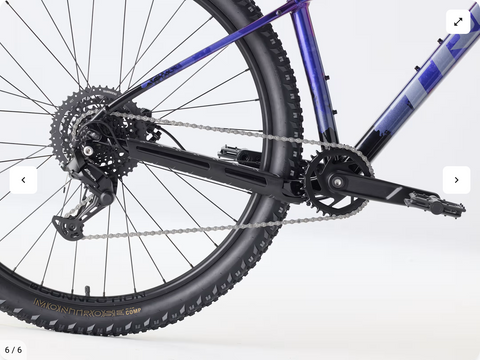

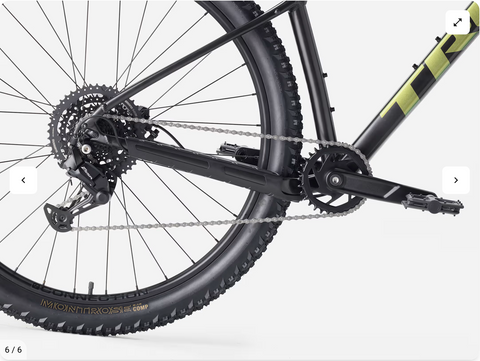

DRIVETRAIN: |
|
|
Shifter: |
Shimano M315, 8-speed |
|
Rear Derailleur: |
Shimano ESSA U2000 |
|
Crank: |
Size: XXS , XS ProWheel alloy, 30T narrow-wide steel ring, 160 mm length |
|
Size: S , M , ML ProWheel alloy, 30T narrow-wide steel ring, 170 mm length |
|
|
Size: L , XL , XXL ProWheel alloy, 30T narrow-wide steel ring, 175 mm length |
|
|
Bottom Bracket: |
Threaded cartridge |
|
Cassette: |
Shimano HG300, 11-45, 8-speed |
|
Chain: |
KMC Z8.3, 8-speed |
|
Pedal: |
Nylon platform |
|
Max. Chainring Size: |
1x: See FAQ, 2x: 36T, 3x: 42T |
|
COMPONENTS: |
|
|
Saddle: |
Bontrager Verse Short, stainless steel rails |
|
Seatpost: |
Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length |
|
Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
|
Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
|

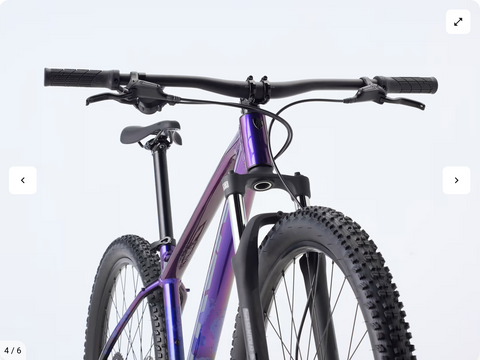

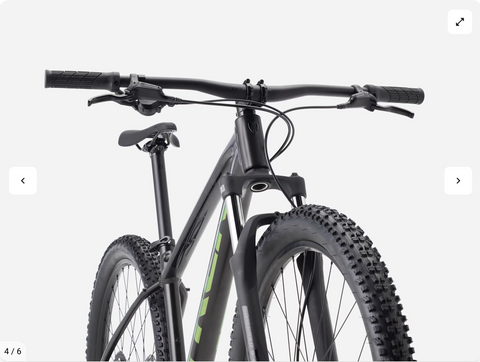

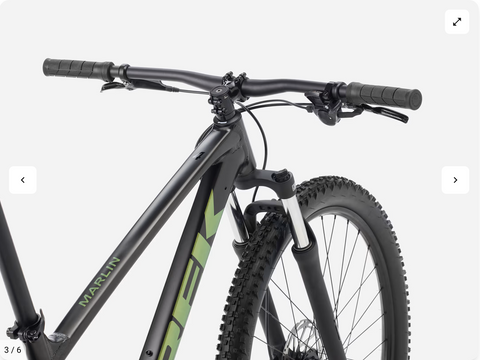

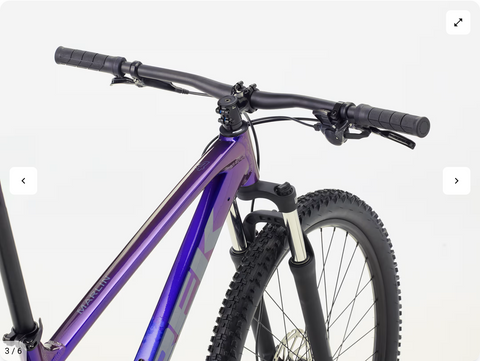

Handlebar: |
Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
|
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
|
Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
|
Grips: |
Trek Line Comp, nylon lock-on |
|
Stem: |
Size: XXS , XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
|
Size: M , ML , L |
|
|
Size: XL |
|
|
Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
|
Headset: |
Semi-integrated, 1-1/8'' |
|
Brake: |
Size: XXS , XS , S Tektro HD-M276 hydraulic disc |
|
Size: XXS , XS , S , M , ML , L , XL , XXL Power BH-M286TF hydraulic disc, 160 mm rotor |
|
|
Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc |
|
|
Size: M , ML , L , XL , XXL Power BH-M286TF hydraulic disc, 180 mm rotor |
|
|
Brake Rotor: |
Size: XXS , XS , S , M , ML , L , XL , XXL Tektro, 6-bolt, 160mm |
|
Size: M , ML , L , XL , XXL Tektro, 6-bolt, 180mm |
|
|
Brake Set: |
Shimano MT200 hydraulic disc |
|
Rotor Size: |
Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
|
WEIGHT: |
|
|
Weight: |
M - 14.90 kg / 32.85 lbs |
|
Weight Limit: |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
*Please note – spec applies to all sizes unless listed separately
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
