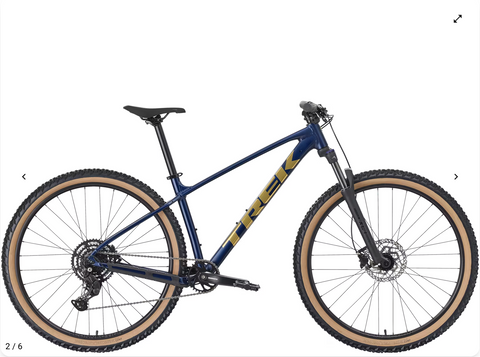

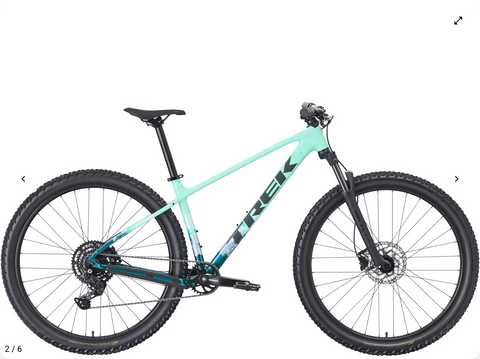

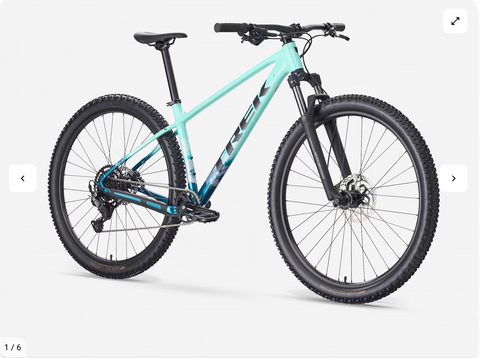

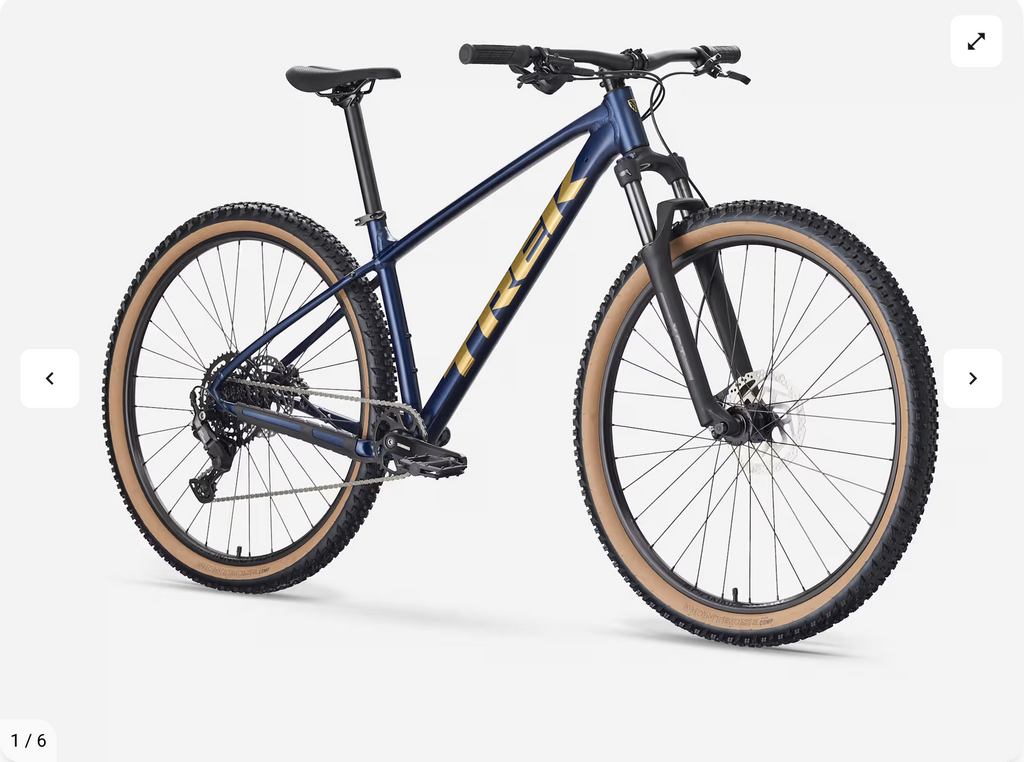

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
|
FRAMESET: |
|
|
Frame: |

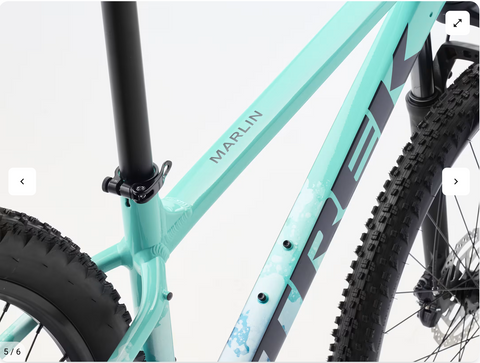

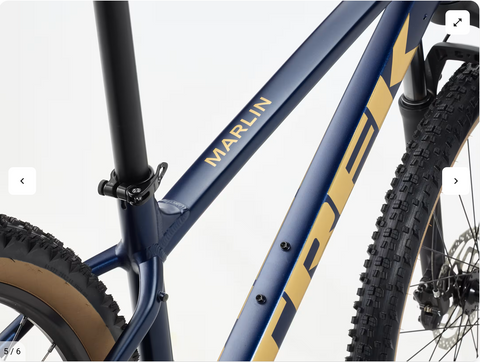

Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
|

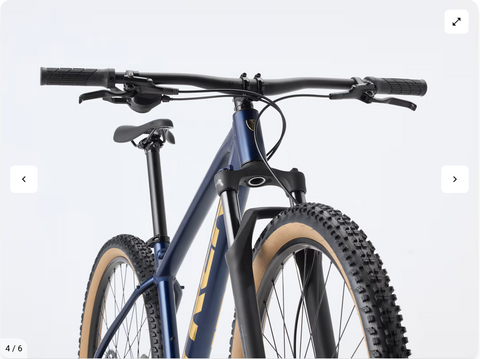

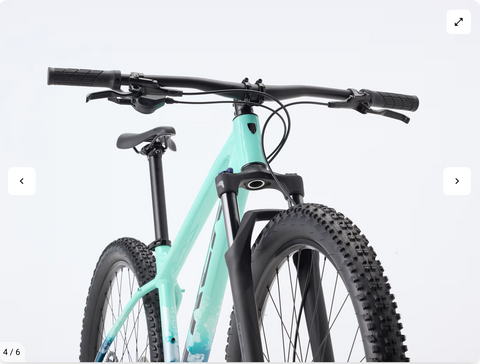

Fork: |
Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
|
Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
|
Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
|
WHEELS: |
|
|
Hub Front: |
Formula DC-20, alloy, 6-bolt, 100x5 mm |
|
Skewer Front: |
Trek Thru-Skew |
|
Hub Rear: |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
|
Skewer Rear |
173x5 mm QR |
|
Spokes: |
14 g stainless steel, black |
|
Rim: |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|
Tyre: |
Size: XS , S Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40" |
|
Size: M , ML , L , XL , XXL Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40" |
|
|
Rim Strip: |
Bontrager TLR |
|
Max. Tyre Size: |
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
|

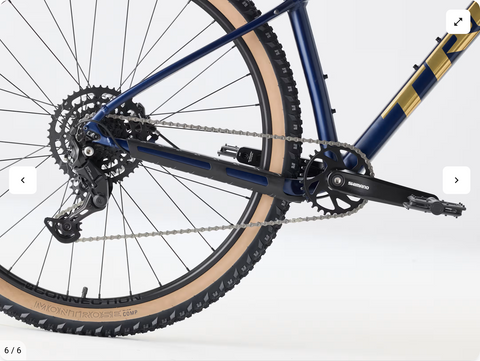

DRIVETRAIN: |
|
|
Shifter: |
Shimano U4000, 9-speed |
|
Rear Derailleur: |
Shimano CUES U4000 |
|
Crank: |
Size: XS , S , M , ML Shimano CUES U4001, 32T, 52mm chain line, 170 mm length |
|
Size: L , XL , XXL Shimano CUES U4001, 32T, 52mm chain line, 175mm length |
|
|
Bottom Bracket: |
Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
|
Cassette: |
Shimano LINKGLIDE LG300, 11-46, 9-speed |
|
Chain: |
Shimano LG500 |
|
Pedal: |
VP-536 nylon platform |
|
Max. Chainring Size: |
1x: See FAQ, 2x: 36T, 3x: 42T |
|
COMPONENTS: |
|
|
Saddle: |
Bontrager Verse Short, stainless steel rails |
|
Seatpost: |
Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
|

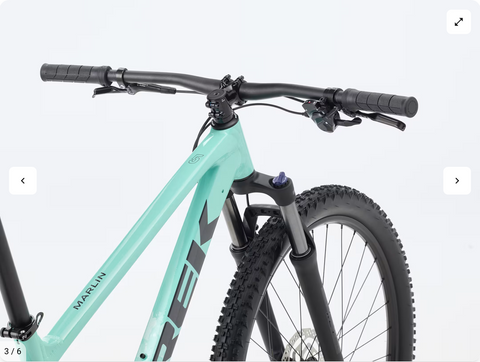

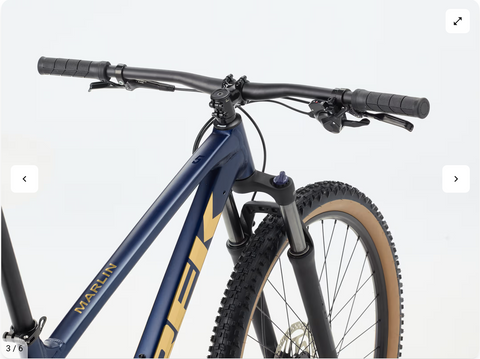

Handlebar: |
Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
|
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
|
Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
|
Grips: |
Trek Line Comp, nylon lock-on |
|
Stem: |
Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
|
Size: M , ML , L |
|
|
Size: XL |
|
|
Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
|
Headset: |
Semi-integrated, 1-1/8” |
|
Brake Rotor: |
Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt, 160 mm |
|
Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt, 180 mm |
|
|
Brake Set: |
Shimano MT200 hydraulic disc |
|
Rotor Size: |
Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
|
WEIGHT: |
|
|
Weight: |
M - 15.10 kg / 33.29 lb |
|
Weight Limit: |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
*Please note – spec applies to all sizes unless listed separately
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
