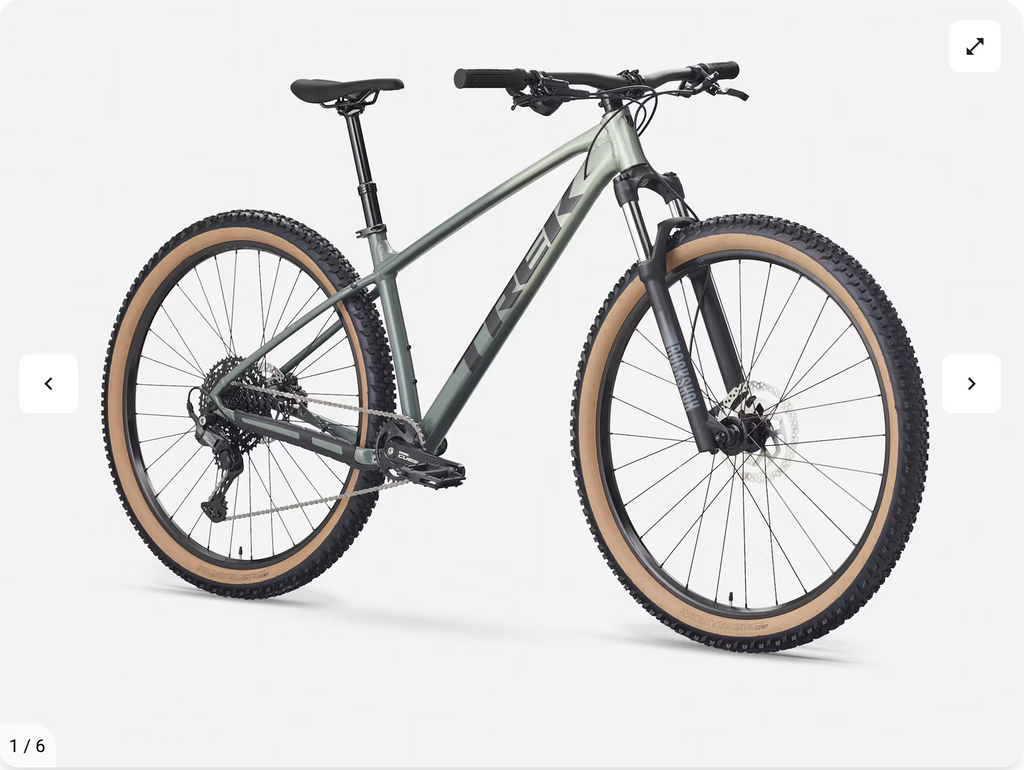

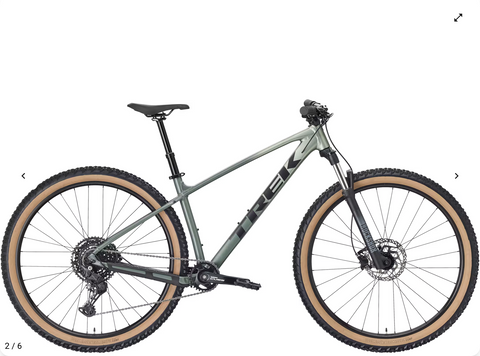

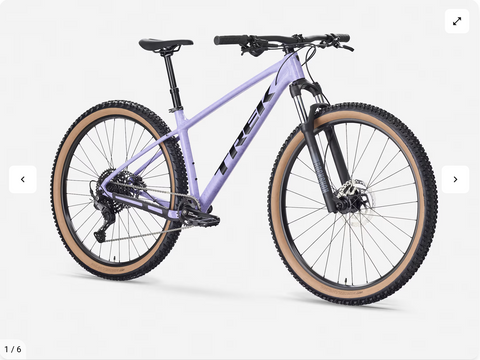

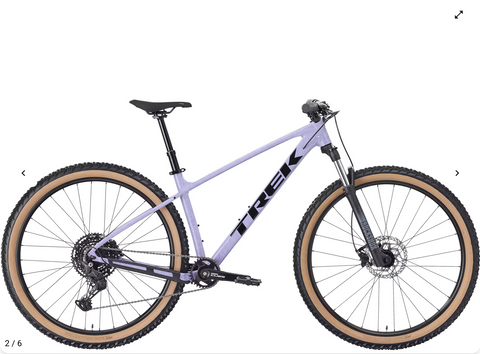

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated, slacker frame geometry makes descents easier to control, while a suspension fork helps smooth out bumpy terrain. Integrated rack and kickstand mounts make it easy to set up for weekday commuting or everyday errands.
|
FRAMESET: |
|
|
Frame: |

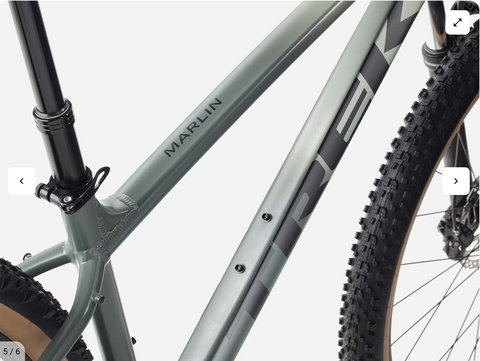

Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
Size: S , M , ML , L , XL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
|
Fork: |
Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
Size: M , ML , L , XL RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
|
WHEELS: |
|
|
Hub Front: |
Formula DC-20, alloy, 6-bolt, 100 mm |
|
Skewer Front: |
116x5mm QR |
|
Hub Rear: |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
|
Skewer Rear |
173x5mm QR |
|
Rim: |
Size: XS , S , M , ML , L , XL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
|
Size: M , ML , L , XL Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
|
|
Tyre: |
Size: XS , S Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40" |
|
Size: M , ML , L , XL Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40" |
|
|
Rim Strip: |
Bontrager TLR |
|
Max. Tyre Size: |
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
|

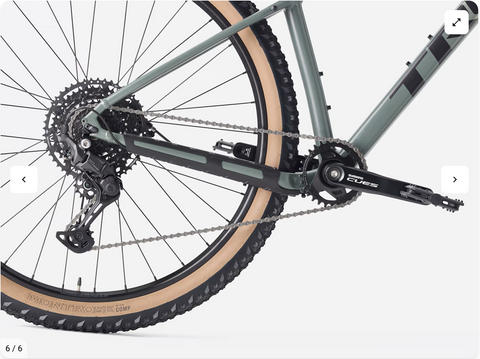

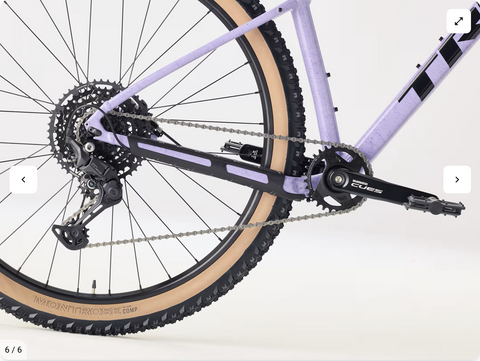

DRIVETRAIN: |
|
|
Shifter: |
Shimano U6000, 10-speed |
|
Rear Derailleur: |
Shimano CUES U6000 GS |
|
Crank: |
Size: XS , S , M , ML Shimano U4000, 30T chainring, 170 mm length |
|
Size: L , XL Shimano U4000, 30T chainring, 175 mm length |
|
|
Bottom Bracket: |
Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
|
Cassette: |
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
|
Chain: |
Shimano LG500 |
|
Pedal: |
VP-536 nylon platform |
|
Max. Chainring Size: |
1x: See FAQ, 2x: 36T, 3x: 42T |
|
COMPONENTS: |
|
|
Saddle: |
Bontrager Verse Short, stainless steel rails |
|
Seatpost: |
Size: XS , S |
|
Size: M |
|
|
Size: ML , L, XL TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length |
|
|
Handlebar: |
Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
|
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
|
Size: M , ML , L , XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
|
Grips: |
Trek Line Comp, nylon lock-on |
|
Stem: |
Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
|
Size: M , ML , L |
|
|
Size: XL |
|
|
Headset: |
Semi-integrated, 1-1/8” |
|
Brake Rotor: |
Size: XS , S , M , ML , L , XL Shimano RT26, 6-bolt, 160 mm |
|
Size: M , ML , L , XL Shimano RT26, 6-bolt, 180 mm |
|
|
Brake Set: |
Shimano MT200 hydraulic disc |
|
Rotor Size: |
Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
|
WEIGHT: |
|
|
Weight: |
M - 15.00 kg / 33.07 lb |
|
Weight Limit: |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
*Please note – spec applies to all sizes unless listed separately
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
