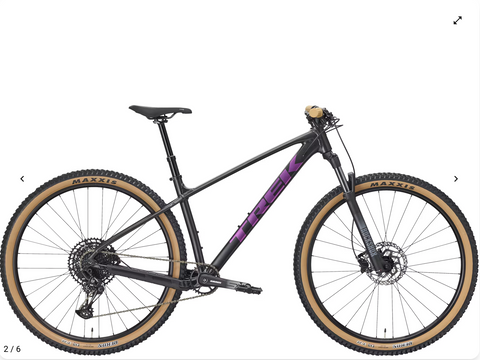

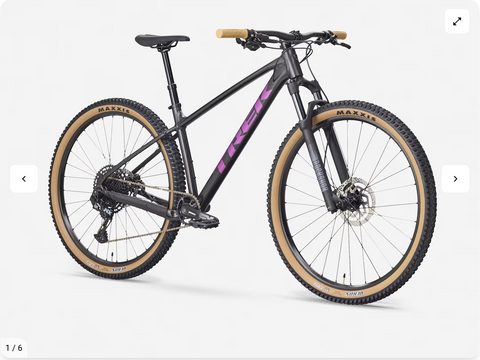

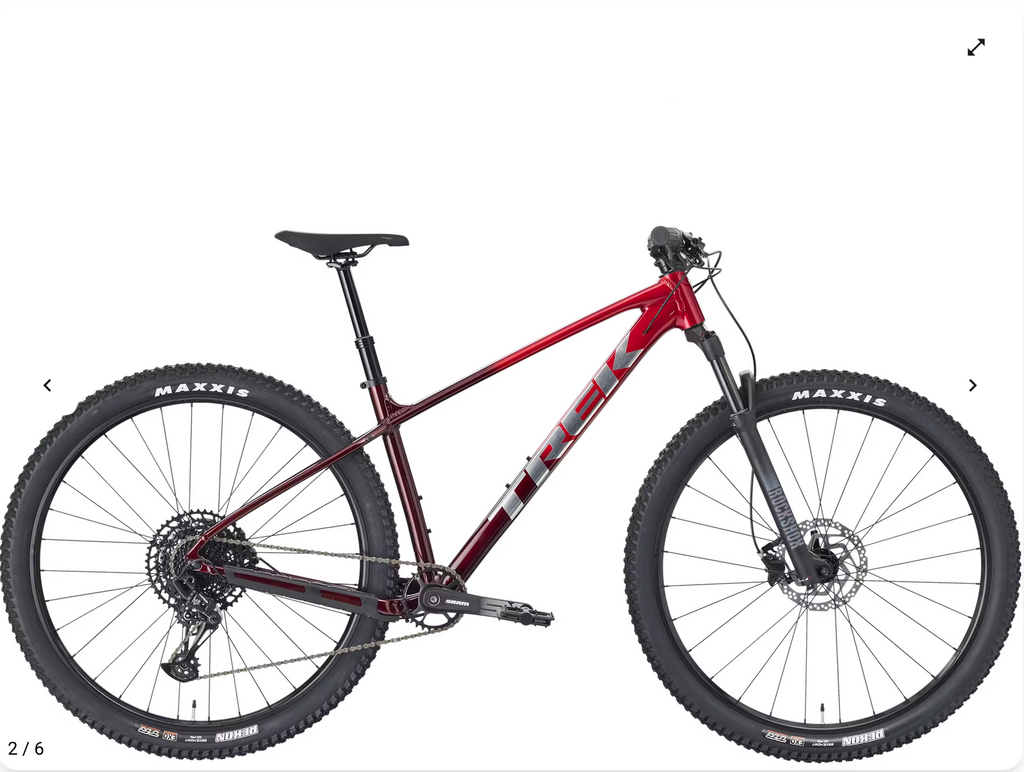

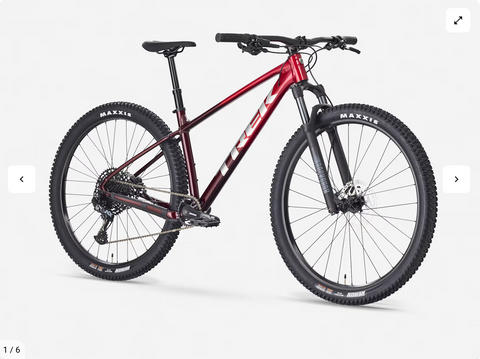

The Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It finds the perfect balance between price and performance with a RockShox suspension fork that makes quick work of rocks and bumps in your path, and loads of gears from the SRAM NX Eagle 12-speed drivetrain.
|
FRAMESET: |
|
|

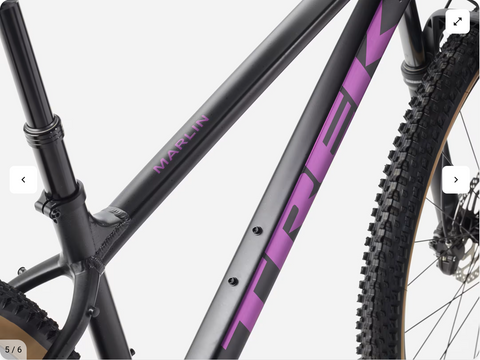

Frame: |

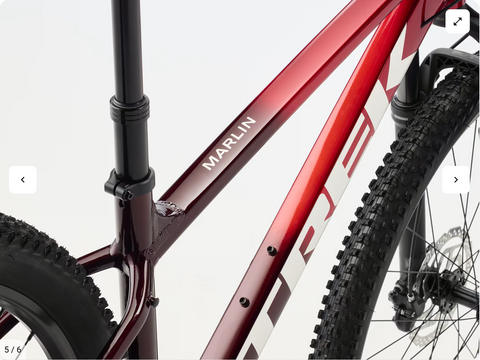

Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
Size: S , M , ML , L , XL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
|

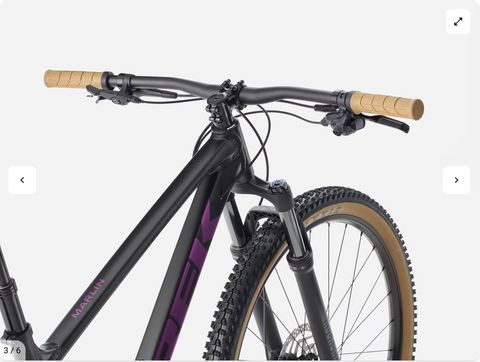

Fork: |

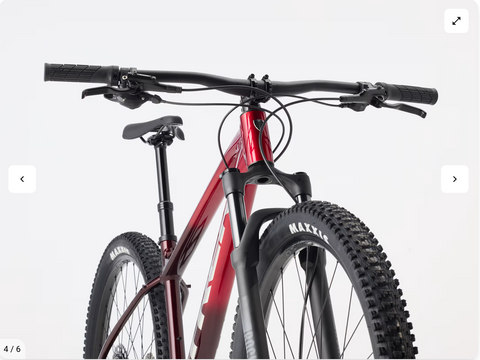

Size: XS , S RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
Size: M , ML , L , XL RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
|
|
WHEELS: |
|
|
Hub Front: |
Formula DC-20 LW, alloy, 6-bolt, 100x5 mm |
|
Skewer Front: |
116x5mm QR |
|
Hub Rear: |
Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
|
Skewer Rear |
173x5mm QR |
|
Rim: |
Size: XS , S , M , ML , L , XL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
|
Size: M , ML , L , XL Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
|
|
Tyre: |
Size: XS , S Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.40'' |
|
Size: M , ML , L , XL Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40'' |
|
|
Rim Strip: |
Bontrager TLR |
|
Max. Tyre Size: |
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
|

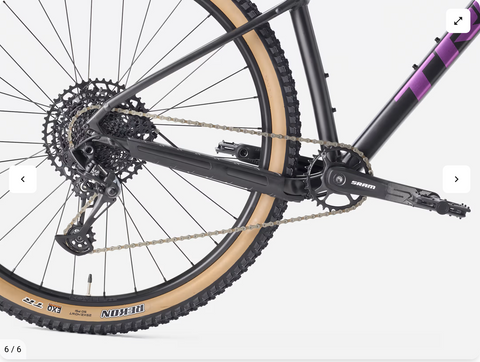

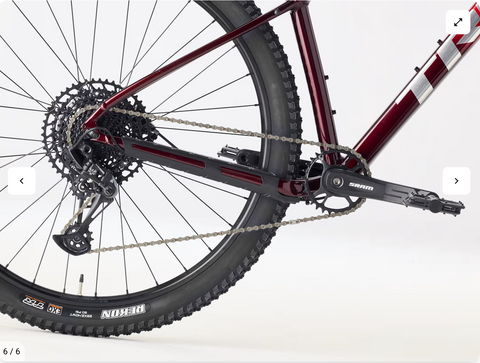

DRIVETRAIN: |
|
|
Shifter: |
SRAM SX Eagle, 12-speed |
|
Rear Derailleur: |
SRAM NX Eagle, 12-speed |
|
Crank: |
Size: XS , S , M SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length |
|
Size: ML , L , XL SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length |
|
|
Bottom Bracket: |
Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle |
|
Cassette: |
SRAM PG-1210 Eagle, 11-50, 12-speed |
|
Chain: |
SRAM PG-1210 Eagle, 11-50, 12-speed |
|
Pedal: |
VP-536 nylon platform |
|
Max. Chainring Size: |
1x: See FAQ, 2x: 36T, 3x: 42T |
|
COMPONENTS: |
|
|
Saddle: |
Bontrager Verse Short, stainless steel rails |
|
Seatpost: |
Size: XS , S |
|
Size: M |
|
|
Size: ML , L TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length |
|
|
Size: XL TranzX JD-YSI34, 170 mm travel, internal routing, 31.6 mm, 500 mm length |
|
|

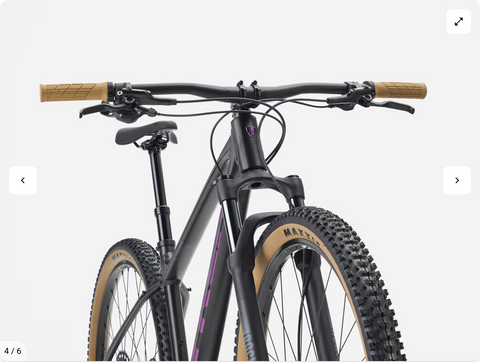

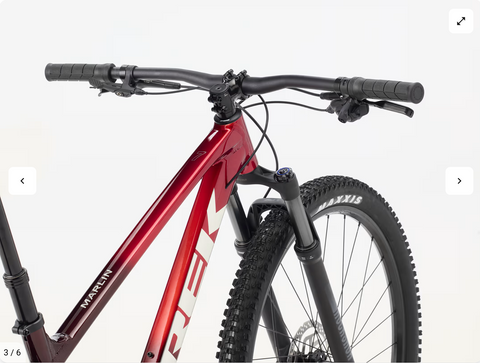

Handlebar: |
Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
|
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
|
Size: M , ML , L , XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
|
Grips: |
Trek Line Comp, nylon lock-on |
|
Stem: |
Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
|
Size: M , ML , L |
|
|
Size: XL |
|
|
Headset: |
Semi-integrated, 1-1/8” |
|
Brake Rotor: |
Size: XS , S , M , ML , L , XL Shimano RT26, 6-bolt, 160 mm |
|
Size: M , ML , L , XL Shimano RT26, 6-bolt, 180 mm |
|
|
Brake Set: |
Shimano MT200 hydraulic disc |
|
Rotor Size: |
Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
|
WEIGHT: |
|
|
Weight: |
M - 14.15 kg / 31.2 lbs |
|
Weight Limit: |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
*Please note – spec applies to all sizes unless listed separately
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
