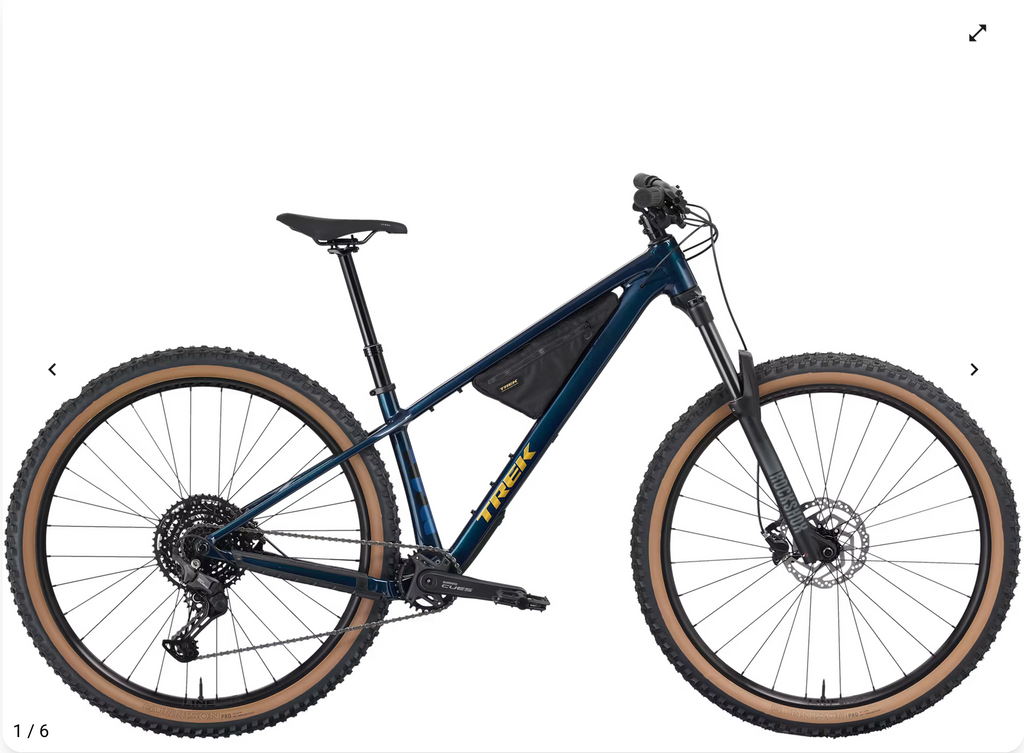

Roscoe 7 is a wild and playful hardtail that’s ready to rip anywhere from rowdy singletrack to dirt jumps. Its Alpha Platinum Aluminium frame pairs capable geometry with a RockShox Recon Silver fork (150 mm travel) for gobbling up rocks, while a 10-speed Shimano CUES drivetrain provides low-maintenance, clean shifting. It's finished with 2-piston Shimano MT200 hydraulic disc brakes for reliable all-weather stopping power.
|
FRAMESET: |
|
|
Frame: |
Alpha Platinum Aluminium, tapered head tube, ZS headset, internal derailleur and dropper post routing, ISCG 05, threaded BB, UDH, 148x12 mm thru axle |
|
Fork: |
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
|
WHEELS: |
|
|
Hub front: |
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
|
Hub Rear: |
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
|
Skewer Rear: |
Bontrager Switch thru axle |
|
Rim: |
Size: S, M, ML, L, XL Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
|
Size: S, M, ML, L, XL Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
|
|
Tyre: |
Size: S Bontrager Gunnison Pro XR, Tubeless-Ready, wire bead, 60 tpi, 27.5x2.40" |
|
Size: M, ML, L, XL Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40" |
|
|
Tyre Part: |
Bontrager TLR sealant, 180 ml/6 oz |
|
Rim Strip: |
Bontrager TLR |
|
Max. Tyre Size: |
Frame: 29x2.60", Fork: See manufacturer |
|

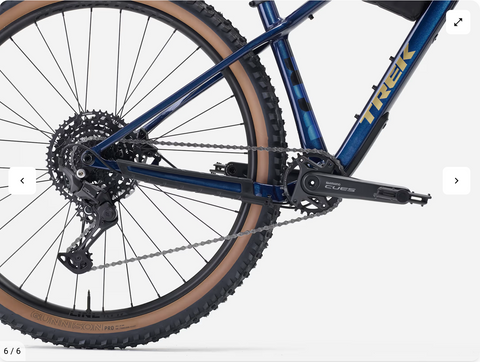

DRIVETRAIN: |
|
|
Shifter: |
Shimano U6000, 10-speed |
|
Rear Derailleur: |
Shimano CUES U6000 GS |
|
Crank: |
Shimano CUES U6000, 30T, 55 mm chain line, 170 mm length |
|
Bottom Bracket: |
Shimano BB-MT501 BSA |
|
Cassette: |
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
|
Chain: |
Shimano LG500 |
|
Pedal: |
VP-536 nylon platform |
|
Max. Chainring Size: |
1x: 34T, min 28T |
|
COMPONENTS: |
|
|
Saddle: |
Size: S, M, ML, L, XL Bontrager Verse P3, steel rails |
|
Size: S, M, ML, L, XL Trek Verse Short Trail |
|
|
Seatpost: |
Size: S TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length |
|
Size: M, ML TranzX JD-YSI34, 170mm travel, internal routing, 31.6 mm, 500mm length |
|
|
Size: L, XL TranzX JD-YSI34, 200mm travel, internal routing, 31.6 mm, 565mm length |
|
|
Handlebar: |
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
Size: M, ML, L, XL Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
|
|
Grips: |
Trek Line Comp, nylon lock-on |
|
Stem: |
Size: S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
|
Size: M, ML, L, XL |
|
|
Headset: |
FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
|
Brake Rotor: |
Shimano RT10, CenterLock, 180 mm |
|
Brake Set: |
Shimano MT200 hydraulic disc |
|
Max. Rotor Size: |
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |
|
WEIGHT: |
|
|
Weight: |
M – 14.53 kg/32.04 lb (with TLR sealant, no tubes) |
|
Weight Limit: |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
*Please note – spec applies to all sizes unless listed separately
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
